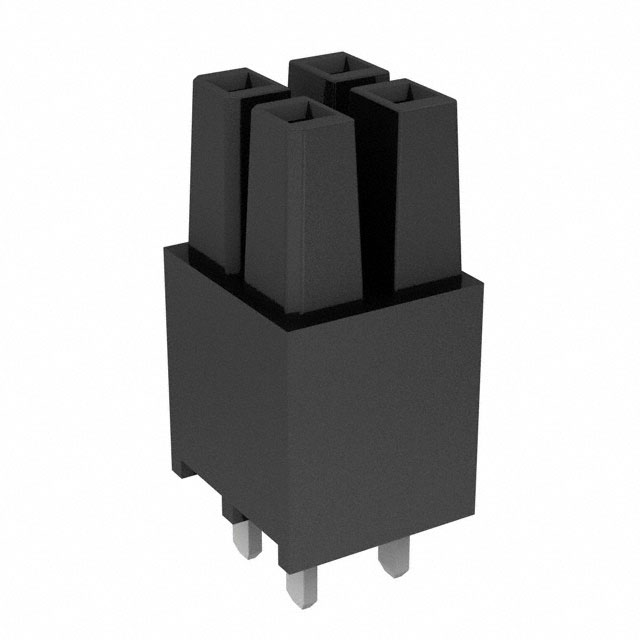

IPS1-102-01-L-D - IPS1-102-01-x-D

IPS1-102-01-L-D

Active
Samtec Inc.

CONN RCPT 4POS 0.1 GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetIPS1 Series Other Related Documents 01+1
IPS1-102-01-L-D - IPS1-102-01-x-D

IPS1-102-01-L-D

Active
Samtec Inc.

CONN RCPT 4POS 0.1 GOLD PCB

Deep-Dive with AI

DocumentsDatasheetIPS1 Series Other Related Documents 01+1

Technical Specifications

Parameters and characteristics for this part

SpecificationIPS1-102-01-L-D
Connector TypeReceptacle
Contact Finish - MatingGold
Contact Finish - PostTin
Contact Finish Thickness - Mating10 çin
Contact Finish Thickness - Mating0.25 çm
Contact Length - Post2.54 mm
Contact Length - Post0.1 in
Contact MaterialPhosphor Bronze
Contact ShapeSquare
Contact TypeFemale Socket
Fastening TypePush-Pull
Insulation ColorBlack
Insulation Height0.335 "
Insulation Height8.51 mm
Insulation MaterialLiquid Crystal Polymer (LCP)
Mounting TypeThrough Hole
Number of Positions4
Number of Positions LoadedAll
Number of Rows2
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
Pitch - Mating0.1 in
Pitch - Mating2.54 mm
Row Spacing - Mating [x]2.54 mm
Row Spacing - Mating [x]0.1 in
TerminationSolder
Voltage Rating775 VAC, 1095 VDC
