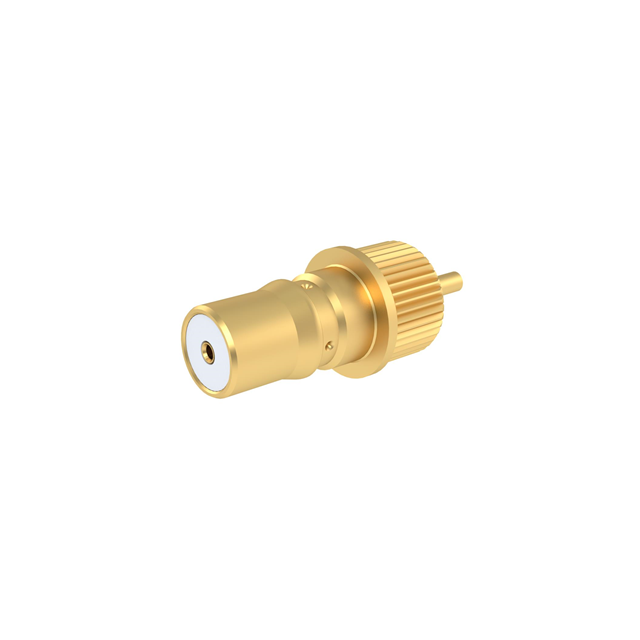

R123590027

Active

Radiall USA, Inc.

QMA / STRAIGHT PRESS MOUNT RECEP

Search across all available documentation for this part.

Active

Radiall USA, Inc.

QMA / STRAIGHT PRESS MOUNT RECEP

Technical Specifications

Parameters and characteristics for this part

Specification	R123590027

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Type	Receptacle, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	Gold
Impedance	50 Ohms
Ingress Protection	IP68 - Dust Tight, Waterproof
Insertion Loss	0.25 dB
Mounting Type	Through Hole, Panel Mount
Number of Ports	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Shield Termination	Solder
Voltage Rating	500 V

Part	Contact Termination	Number of Ports	Fastening Type	Body Finish	Frequency - Max [Max]	Connector Type	Impedance	Insertion Loss	Ingress Protection	Center Contact Plating	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Material	Body Material	Voltage Rating	Mounting Type	Housing Color	Shield Termination
Radiall USA, Inc. R123590027	Solder	1	Snap-On	Gold	6000 MHz	Female Socket Receptacle	50 Ohms	0.25 dB	IP68 - Dust Tight Waterproof	Gold	Polytetrafluoroethylene (PTFE)	-40 °C	105 ░C	Beryllium Copper	Brass	500 V	Panel Mount Through Hole	Gold	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 12.14

General part information

QMA Connector Receptacle, Female Socket 50 Ohms Panel Mount, Through Hole Solder
