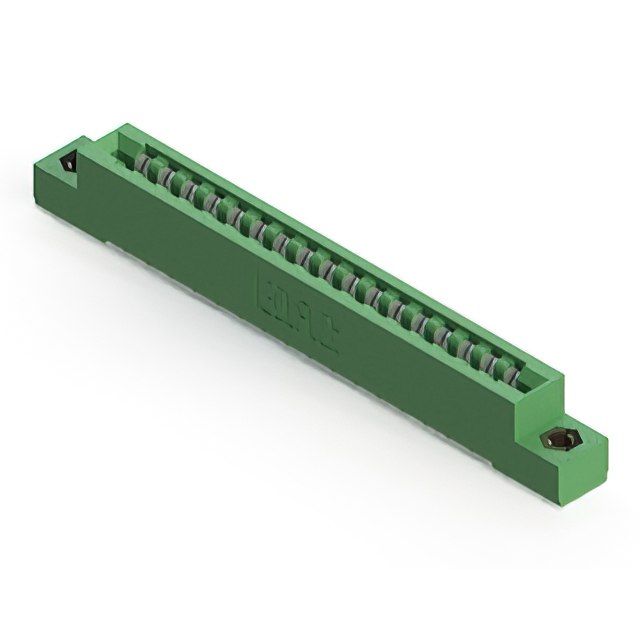

807-017-401-107
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 34POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
807-017-401-107
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 34POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 807-017-401-107 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Tin |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Flange Feature | Top Opening, Flush Mount, M3, Threaded Insert |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 34 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder Eyelet(s) |
| Termination Rows | 1 |
807-017 Series
...
| Part | Color | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Gender | Card Type | Number of Rows | Material - Insulation | Pitch [x] | Pitch [x] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Positions | Termination Rows | Read Out | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Mounting Type | Contact Finish | Flange Feature | Flange Feature | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Green | 125 °C | -40 °C | Wire Wrap | Female | Non Specified - Dual Edge | 2 | Diallyl Phthalate (DAP) | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 34 | 1 | Dual | Semi Bellows | 10 Áin | 0.25 Ám | Copper Alloy | Through Hole | Gold | |||||
EDAC Inc. | Green | 125 °C | -40 °C | Solder | Female | Non Specified - Dual Edge | 2 | Diallyl Phthalate (DAP) | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 34 | 1 | Dual | Semi Bellows | Copper Alloy | Through Hole Right Angle | Tin | 4-40 Flush Mount Threaded Insert Top Opening | ||||||
EDAC Inc. | Green | 125 °C | -40 °C | Solder Eyelet(s) | Female | Non Specified - Dual Edge | 2 | Diallyl Phthalate (DAP) | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 34 | 1 | Dual | Semi Bellows | Copper Alloy | Through Hole | Tin | |||||||
EDAC Inc. | Green | 125 °C | -40 °C | Solder Eyelet(s) | Female | Non Specified - Dual Edge | 2 | Diallyl Phthalate (DAP) | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 34 | 1 | Dual | Semi Bellows | Copper Alloy | Through Hole | Tin | Flush Mount M3 Threaded Insert Top Opening | ||||||
EDAC Inc. | Green | 125 °C | -40 °C | Wire Wrap | Female | Non Specified - Single Edge | 1 | Diallyl Phthalate (DAP) | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Single | Semi Bellows | 10 Áin | 0.25 Ám | Copper Alloy | Through Hole | Gold | Side Mount Opening Unthreaded | 3.25 mm | 0.128 in | |||
EDAC Inc. | Green | 125 °C | -40 °C | Solder | Female | Non Specified - Dual Edge | 2 | Diallyl Phthalate (DAP) | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 34 | 1 | Dual | Semi Bellows | 10 Áin | 0.25 Ám | Copper Alloy | Through Hole Right Angle | Gold | Side Mount Opening Unthreaded | 3.25 mm | 0.128 in | ||
EDAC Inc. | Green | 125 °C | -40 °C | Solder Eyelet(s) | Female | Non Specified - Single Edge | 1 | Diallyl Phthalate (DAP) | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Single | Semi Bellows | 10 Áin | 0.25 Ám | Copper Alloy | Through Hole | Gold | Side Mount Opening Unthreaded | 3.25 mm | 0.128 in | |||
EDAC Inc. | Green | 125 °C | -40 °C | Solder | Female | Non Specified - Dual Edge | 2 | Diallyl Phthalate (DAP) | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 34 | 1 | Dual | Semi Bellows | 10 Áin | 0.25 Ám | Copper Alloy | Through Hole Right Angle | Gold | Flush Mount M3 Threaded Insert Top Opening | ||||
EDAC Inc. | Green | 125 °C | -40 °C | Solder | Female | Non Specified - Single Edge | 1 | Diallyl Phthalate (DAP) | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Single | Semi Bellows | 10 Áin | 0.25 Ám | Copper Alloy | Through Hole | Gold | Flush Mount Top Opening Unthreaded | 3.96 mm | 0.156 in | |||
EDAC Inc. | Green | 125 °C | -40 °C | Solder | Female | Non Specified - Single Edge | 1 | Diallyl Phthalate (DAP) | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Single | Semi Bellows | 10 Áin | 0.25 Ám | Copper Alloy | Through Hole | Gold | Floating Bobbin Flush Mount | 2.95 mm | 0.116 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 138.66 | |
Description
General part information
807-017 Series
34 Position Female Connector Non Specified - Dual Edge Tin 0.156" (3.96mm) Green
