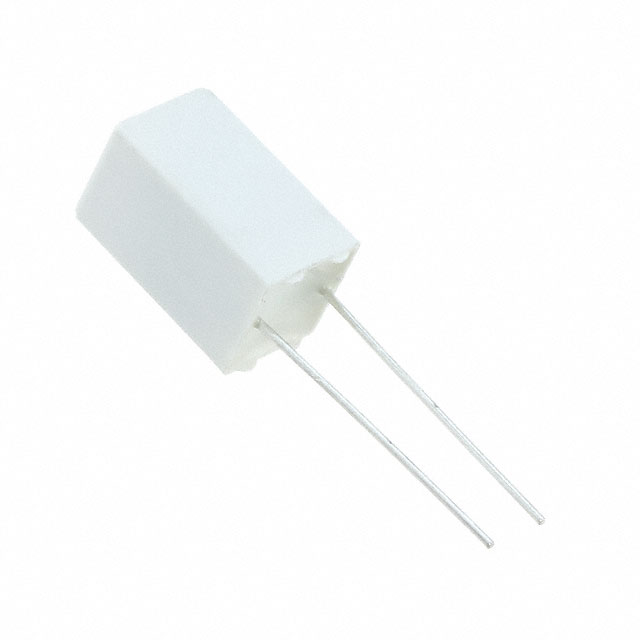

SMR5224J100J06L16.5CBULK

Active

KEMET

CAP FILM 0.22UF 5% 100VDC RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSMR Series Datasheet F211JU224J100ALG5C

SMR5224J100J06L16.5CBULK

Active

KEMET

CAP FILM 0.22UF 5% 100VDC RADIAL

Deep-Dive with AI

DocumentsSMR Series Datasheet F211JU224J100ALG5C

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SMR5224J100J06L16.5CBULK

Applications	General Purpose
Capacitance	0.22 µF
Dielectric Material	Polyphenylene Sulfide (PPS), Metallized
Features	High Temperature
Height - Seated (Max) [Max] [z]	13 mm
Height - Seated (Max) [Max] [z]	0.512 "
Lead Spacing	5 mm
Lead Spacing	0.197 in
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Size / Dimension [x]	0.283 in
Size / Dimension [x]	7.2 mm
Size / Dimension [y]	7.2 mm
Size / Dimension [y]	0.283 "
Termination	PC Pins
Tolerance	5 %
Voltage Rating - AC	63 V
Voltage Rating - DC	100 V

SMR5 Series

Part	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Capacitance	Mounting Type	Termination	Features	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Lead Spacing	Lead Spacing	Voltage Rating - DC	Applications	Voltage Rating - AC	Tolerance	Dielectric Material	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [y]
KEMET SMR5104K100J03L4BULK	0.354 in	9 mm	100000 pF	Through Hole	PC Pins	High Temperature	-55 °C	150 °C	4.5 mm	0.177 "	7.2 mm	0.283 in	5 mm	0.197 in	100 V	General Purpose	63 V	10 %	Polyphenylene Sulfide (PPS) Metallized	Radial
KEMET SMR5224J100J06L16.5CBULK			0.22 µF	Through Hole	PC Pins	High Temperature	-55 °C	150 °C	7.2 mm	0.283 "	7.2 mm	0.283 in	5 mm	0.197 in	100 V	General Purpose	63 V	5 %	Polyphenylene Sulfide (PPS) Metallized	Radial	13 mm	0.512 "
KEMET SMR5223J100J01L16.5CBULK			0.022 µF	Through Hole	PC Pins	High Temperature	-55 °C	150 °C		0.098 in	7.2 mm	0.283 in	5 mm	0.197 in	100 V	General Purpose	63 V	5 %	Polyphenylene Sulfide (PPS) Metallized	Radial	6.5 mm	0.256 in	2.5 mm
KEMET SMR5472J100J01L16.5CBULK			4700 pF	Through Hole	PC Pins	High Temperature	-55 °C	150 °C		0.098 in	7.2 mm	0.283 in	5 mm	0.197 in	100 V	General Purpose	63 V	5 %	Polyphenylene Sulfide (PPS) Metallized	Radial	6.5 mm	0.256 in	2.5 mm
KEMET SMR5474J50J04L4BULK	0.394 in	10 mm	0.47 µF	Through Hole	PC Pins	High Temperature	-55 °C	150 °C	5 mm	0.197 "	7.2 mm	0.283 in	5 mm	0.197 in	50 VDC	General Purpose	30 V	5 %	Polyphenylene Sulfide (PPS) Metallized	Radial
KEMET SMR5683J100J03L4BULK	0.354 in	9 mm	0.068 µF	Through Hole	PC Pins	High Temperature	-55 °C	150 °C	4.5 mm	0.177 "	7.2 mm	0.283 in	5 mm	0.197 in	100 V	General Purpose	63 V	5 %	Polyphenylene Sulfide (PPS) Metallized	Radial
KEMET SMR5223K100J01L4BULK			0.022 µF	Through Hole	PC Pins	High Temperature	-55 °C	150 °C		0.098 in	7.2 mm	0.283 in	5 mm	0.197 in	100 V	General Purpose	63 V	10 %	Polyphenylene Sulfide (PPS) Metallized	Radial	6.5 mm	0.256 in	2.5 mm
KEMET SMR5822K250J01L4BULK				Through Hole	PC Pins	High Temperature	-55 °C	150 °C		0.098 in	7.2 mm	0.283 in	5 mm	0.197 in	250 V	General Purpose	160 V	10 %	Polyphenylene Sulfide (PPS) Metallized	Radial	6.5 mm	0.256 in	2.5 mm
KEMET SMR5222J100J01L16.5CBULK			2200 pF	Through Hole	PC Pins	High Temperature	-55 °C	150 °C		0.098 in	7.2 mm	0.283 in	5 mm	0.197 in	100 V	General Purpose	63 V	5 %	Polyphenylene Sulfide (PPS) Metallized	Radial	6.5 mm	0.256 in	2.5 mm
KEMET SMR5222J63J01L16.5CBULK			2200 pF	Through Hole	PC Pins	High Temperature	-55 °C	150 °C		0.098 in	7.2 mm	0.283 in	5 mm	0.197 in	63 VDC	General Purpose	40 V	5 %	Polyphenylene Sulfide (PPS) Metallized	Radial	6.5 mm	0.256 in	2.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.14
		10	$ 1.64
		50	$ 1.51
		100	$ 1.25
		500	$ 1.01
		1000	$ 0.88
		3000	$ 0.85
		5000	$ 0.82

Description

General part information

SMR5 Series

0.22 µF Film Capacitor 63V 100V Polyphenylene Sulfide (PPS), Metallized Radial

Documents

Technical documentation and resources

SMR Series Datasheet

Datasheet
