87984-8

Active

TE Connectivity AMP Connectors

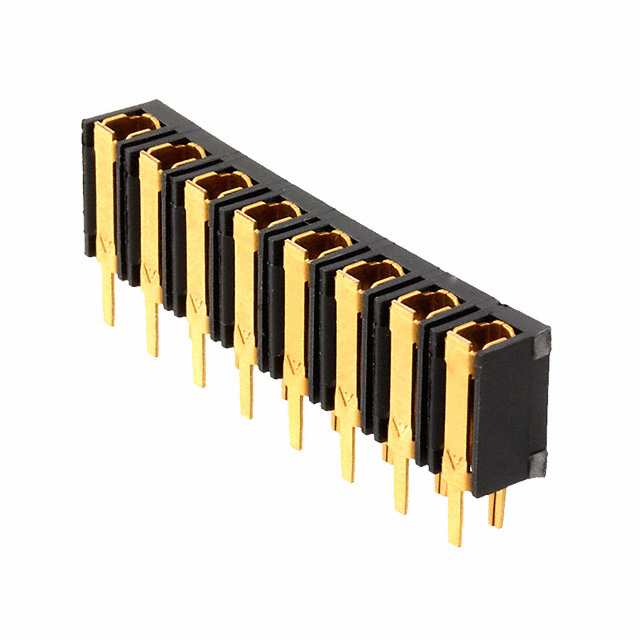

CONN RCPT 8POS 0.156 GOLD PCB

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 13.91
		15	$ 13.62
		105	$ 11.37
		510	$ 9.85
		1005	$ 9.78

Description

General part information

87984 Series

8 Position Receptacle, Bottom Entry Connector 0.156" (3.96mm) Through Hole Gold

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	87984-8	87984 Series

Connector Type	Receptacle, Bottom Entry	Receptacle, Bottom Entry
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Gold	Gold
Contact Finish Thickness - Mating	30 Áin	30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 Ám
Contact Finish Thickness - Post	Flash	Flash
Contact Length - Post	2.84 mm	2.84 mm
Contact Length - Post	0.112 in	0.112 in
Contact Material	Phosphor Bronze	Phosphor Bronze
Contact Shape	Square	Square
Contact Type	Female Socket	Female Socket
Fastening Type	Push-Pull	Push-Pull
Insulation Color	Black	Black
Insulation Height [z]	0.3 in	0.3 in
Insulation Height [z]	7.62 mm	7.62 mm
Insulation Material	Thermoplastic	Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	8	2 - 20
Number of Positions Loaded	All	All
Number of Rows	1	1
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-65 ░C	-65 ░C
Pitch - Mating	0.156 in	0.156 in
Pitch - Mating	3.96 mm	3.96 mm
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder

87984 Series

CONN RCPT 20POS 0.156 GOLD PCB

Part	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Shape	Contact Type	Material Flammability Rating	Contact Finish Thickness - Post	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Style	Fastening Type	Number of Rows	Insulation Color	Number of Positions Loaded	Insulation Material	Number of Positions	Connector Type	Contact Finish - Post	Termination	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height [z]	Insulation Height [z]	Mounting Type
TE Connectivity AMP Connectors 2-87984-0	2.84 mm	0.112 in	30 Áin	0.76 Ám	Square	Female Socket	UL94 V-0	Flash	0.156 in	3.96 mm	Gold	Board to Board, Cable	Push-Pull	1	Black	All	Thermoplastic	20	Receptacle, Bottom Entry	Gold	Solder	Phosphor Bronze	-65 ░C	105 ░C	0.3 in	7.62 mm	Through Hole
TE Connectivity AMP Connectors 87984-5	2.84 mm	0.112 in	30 Áin	0.76 Ám	Square	Female Socket	UL94 V-0	Flash	0.156 in	3.96 mm	Gold	Board to Board, Cable	Push-Pull	1	Black	All	Thermoplastic		Receptacle, Bottom Entry	Gold	Solder	Phosphor Bronze	-65 ░C	105 ░C	0.3 in	7.62 mm	Through Hole
TE Connectivity AMP Connectors 87984-2	2.84 mm	0.112 in	30 Áin	0.76 Ám	Square	Female Socket	UL94 V-0	Flash	0.156 in	3.96 mm	Gold	Board to Board, Cable	Push-Pull	1	Black	All	Thermoplastic	2	Receptacle, Bottom Entry	Gold	Solder	Phosphor Bronze	-65 ░C	105 ░C	0.3 in	7.62 mm	Through Hole
TE Connectivity AMP Connectors 87984-7	2.84 mm	0.112 in	30 Áin	0.76 Ám	Square	Female Socket	UL94 V-0	Flash	0.156 in	3.96 mm	Gold	Board to Board, Cable	Push-Pull	1	Black	All	Thermoplastic	7	Receptacle, Bottom Entry	Gold	Solder	Phosphor Bronze	-65 ░C	105 ░C	0.3 in	7.62 mm	Through Hole
TE Connectivity AMP Connectors 87984-3	2.84 mm	0.112 in	30 Áin	0.76 Ám	Square	Female Socket	UL94 V-0	Flash	0.156 in	3.96 mm	Gold	Board to Board, Cable	Push-Pull	1	Black	All	Thermoplastic		Receptacle, Bottom Entry	Gold	Solder	Phosphor Bronze	-65 ░C	105 ░C	0.3 in	7.62 mm	Through Hole
TE Connectivity AMP Connectors 87984-8	2.84 mm	0.112 in	30 Áin	0.76 Ám	Square	Female Socket	UL94 V-0	Flash	0.156 in	3.96 mm	Gold	Board to Board, Cable	Push-Pull	1	Black	All	Thermoplastic	8	Receptacle, Bottom Entry	Gold	Solder	Phosphor Bronze	-65 ░C	105 ░C	0.3 in	7.62 mm	Through Hole
