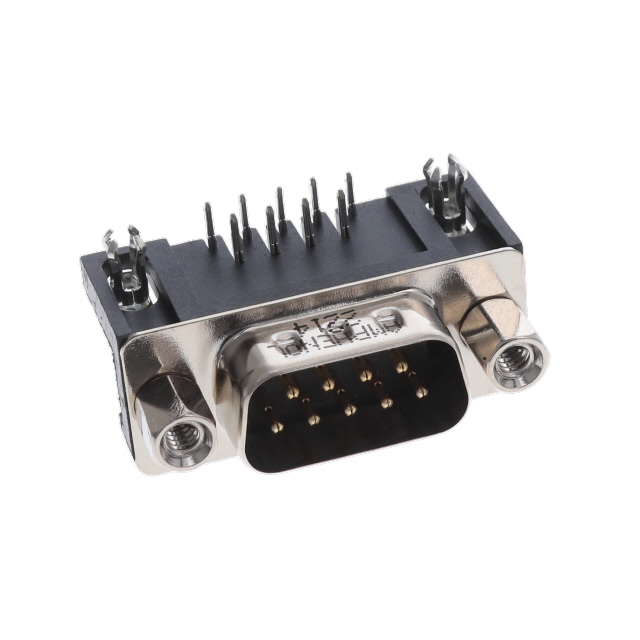

L17HTNEP4F1C
ActiveAmphenol ICC (Commercial Products)
CONN D-SUB PLUG 9POS R/A SLDR
Deep-Dive with AI
Search across all available documentation for this part.
L17HTNEP4F1C
ActiveAmphenol ICC (Commercial Products)
CONN D-SUB PLUG 9POS R/A SLDR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | L17HTNEP4F1C |
|---|---|
| Backset Spacing | 8.08 mm |
| Backset Spacing | 0.318 " |
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Form | Stamped |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating (Amps) | 5 A |
| Dielectric Material | Thermoplastic, Glass Filled |
| Features | Grounding Indents, Board Lock |
| Flange Feature | Female Screwlock (4-40), Mating Side |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Steel, Tin-Nickel Plated |
| Shell Size, Connector Layout [custom] | DE, E |
| Shell Size, Connector Layout [custom] | 1 |
| Termination | Solder |
| Voltage Rating | 600 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 1.70 | |
| 10 | $ 1.48 | |||
| 25 | $ 1.42 | |||
| 40 | $ 1.38 | |||
| 90 | $ 1.32 | |||
| 270 | $ 1.19 | |||
| 450 | $ 1.10 | |||
| 990 | $ 0.94 | |||
| 2430 | $ 0.88 | |||
Description
General part information
L17HTNEP4 Series
9 Position D-Sub Plug, Male Pins Connector
