1241380-1
ActiveTE Connectivity AMP Connectors

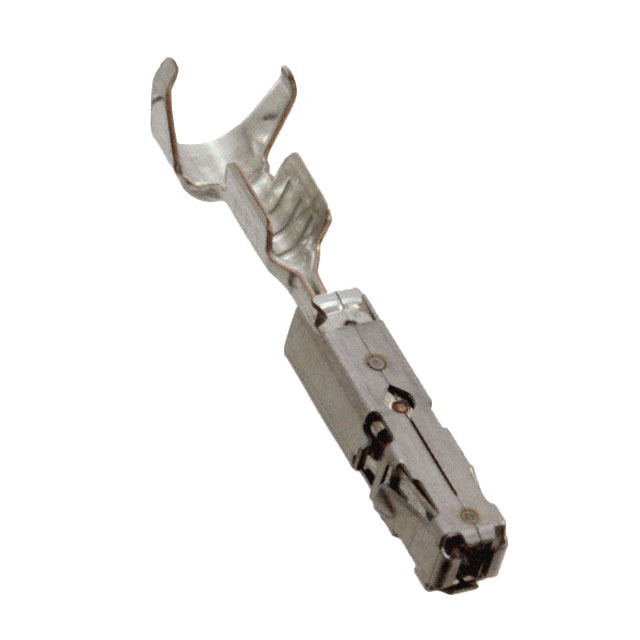

CONN SOCKET 18-20AWG CRIMP TIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1241380-1
ActiveTE Connectivity AMP Connectors
CONN SOCKET 18-20AWG CRIMP TIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1241380-1 | 1241380 Series |
|---|---|---|
| - | - | |
| Contact Finish | Tin | Tin, Gold |
| Contact Finish Thickness | - | 31.5 µin |
| Contact Finish Thickness | - | 0.8 µm |
| Contact Termination | Crimp | Crimp |
| Pin or Socket | Socket | Socket |
| Wire Gauge [Max] | 20 AWG | 20 AWG |
| Wire Gauge [Min] | 17.5 AWG | 17.5 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.21 | |
| 10 | $ 0.18 | |||
| 25 | $ 0.16 | |||
| 50 | $ 0.16 | |||
| 100 | $ 0.15 | |||
| 250 | $ 0.14 | |||
| 500 | $ 0.13 | |||
| 1000 | $ 0.13 | |||
| Tape & Reel (TR) | 4500 | $ 0.10 | ||
| 9000 | $ 0.09 | |||
| 13500 | $ 0.09 | |||
| 22500 | $ 0.09 | |||
| 31500 | $ 0.08 | |||
| 45000 | $ 0.08 | |||
1241380 Series
CONN SOCKET 18-20AWG CRIMP TIN
| Part | Contact Termination | Wire Gauge [Min] | Wire Gauge [Max] | Pin or Socket | Contact Finish | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1241380-1 | Crimp | 17.5 AWG | 20 AWG | Socket | Tin | ||
TE Connectivity AMP Connectors 1241380-2 | Crimp | 17.5 AWG | 20 AWG | Socket | Gold | 31.5 µin | 0.8 µm |
TE Connectivity AMP Connectors 1-1241380-2 |
Description
General part information
1241380 Series
Socket Contact Tin 18-20 AWG Crimp
