Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BQ77910EVM-001 | BQ77910 Series |
|---|---|---|
| Battery Chemistry | - | Lithium Ion/Polymer |
| Contents | - | Board(s) |
| Embedded | False | False |
| Fault Protection | - | Over Temperature, Over/Under Voltage, Over Current, Short Circuit |
| Function | Power Supply Supervisor/Tracker/Sequencer | Multi-Function Controller, Battery Charger, Power Supply Supervisor/Tracker/Sequencer |
| Interface | - | I2C |
| Mounting Type | - | Surface Mount |
| Number of Cells | - | 4 |
| Number of Cells | - | 10 |
| Operating Temperature | - | -25 °C |
| Operating Temperature | - | 85 C |
| Package / Case | - | 4.4 mm |
| Package / Case | - | 38-TFSOP |
| Package / Case | - | 0.173 in |
| Primary Attributes | Li-Pol, Li-Ion | Li-Pol, Li-Ion |
| Primary Attributes [Max] | 10 Cells | 10 Cells |
| Primary Attributes [Min] | 4 Cells | 4 Cells |
| Secondary Attributes | - | Graphical User Interface (GUI) |
| Supplied Contents | Board(s), Accessories | Board(s), Accessories |
| Supplier Device Package | - | 38-TSSOP |
| Type | Power Management | Power Management |
| Utilized IC / Part | bq77910 | BQ77910A, bq77910 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
BQ77910 Series
STANDALONE 4-10 CELL PRECISION PROTECTOR FOR LI-ION CHEMISTRIES
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Interface | Supplier Device Package | Mounting Type | Battery Chemistry | Package / Case | Package / Case | Package / Case | Function | Fault Protection | Number of Cells [Min] [custom] | Number of Cells [Max] [custom] | Secondary Attributes | Embedded | Primary Attributes | Primary Attributes [Max] | Primary Attributes [Min] | Type | Utilized IC / Part | Contents | Supplied Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments BQ77910ADBT | -25 °C | 85 C | I2C | 38-TSSOP | Surface Mount | Lithium Ion/Polymer | 4.4 mm | 38-TFSOP | 0.173 in | Multi-Function Controller | Over Current, Over Temperature, Over/Under Voltage, Short Circuit | 4 | 10 | |||||||||
Texas Instruments BQ77910DBT | -25 °C | 85 C | I2C | 38-TSSOP | Surface Mount | Lithium Ion/Polymer | 4.4 mm | 38-TFSOP | 0.173 in | Multi-Function Controller | Over Current, Over Temperature, Over/Under Voltage, Short Circuit | 4 | 10 | |||||||||
Texas Instruments BQ77910AEVM-001 | Battery Charger | Graphical User Interface (GUI) | Li-Ion, Li-Pol | 10 Cells | 4 Cells | Power Management | BQ77910A | Board(s) | ||||||||||||||
Texas Instruments BQ77910EVM-001 | Power Supply Supervisor/Tracker/Sequencer | Li-Ion, Li-Pol | 10 Cells | 4 Cells | Power Management | bq77910 | Accessories, Board(s) | |||||||||||||||
Texas Instruments BQ77910ADBTR | -25 °C | 85 C | I2C | 38-TSSOP | Surface Mount | Lithium Ion/Polymer | 4.4 mm | 38-TFSOP | 0.173 in | Multi-Function Controller | Over Current, Over Temperature, Over/Under Voltage, Short Circuit | 4 | 10 | |||||||||
Texas Instruments BQ77910DBTR | -25 °C | 85 C | I2C | 38-TSSOP | Surface Mount | Lithium Ion/Polymer | 4.4 mm | 38-TFSOP | 0.173 in | Multi-Function Controller | Over Current, Over Temperature, Over/Under Voltage, Short Circuit | 4 | 10 |
Description
General part information
BQ77910 Series

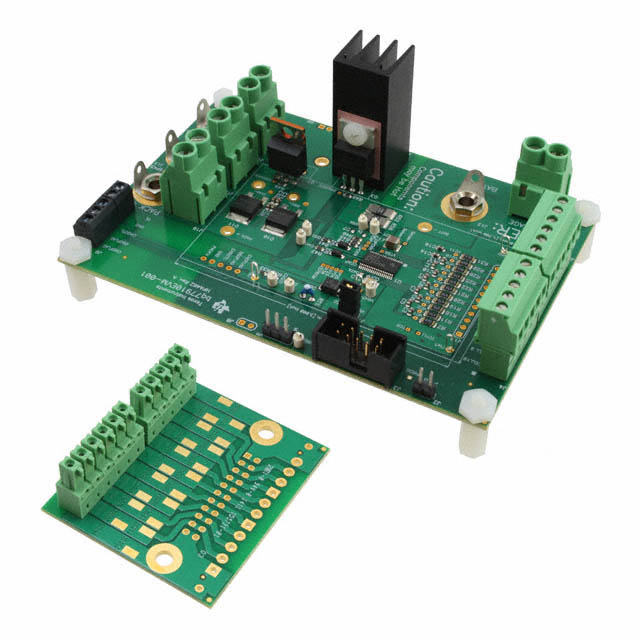

bq77910 Power Supply Supervisor/Tracker/Sequencer Power Management Evaluation Board
