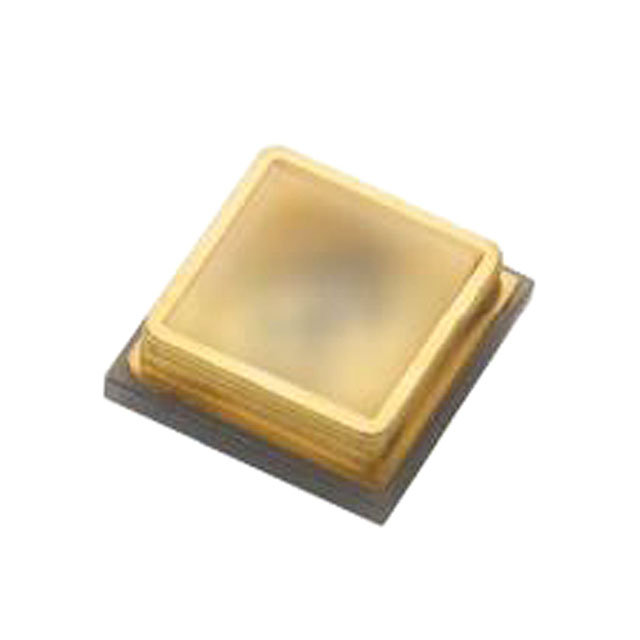

ELUC3535NUB-P7085Q05075020-S21Q
ActiveEverlight Electronics Co Ltd
HIGH POWER UVC LED (2MW)
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ELUC3535NUB-P7085Q05075020-S21Q
ActiveEverlight Electronics Co Ltd
HIGH POWER UVC LED (2MW)
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ELUC3535NUB-P7085Q05075020-S21Q |
|---|---|
| Current - DC Forward (If) (Max) [Max] | 40 mA |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -30 ░C |
| Orientation | Top View |
| Package / Case | 3535 Metric |
| Package / Case | 1414 |
| Type | Ultraviolet (UV) |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 6.25 V |
| Wavelength | 278 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 5.12 | |
| 10 | $ 3.62 | |||
| 100 | $ 3.04 | |||
| Digi-Reel® | 1 | $ 5.12 | ||
| 10 | $ 3.62 | |||
| 100 | $ 3.04 | |||
| Tape & Reel (TR) | 1000 | $ 3.04 | ||
Description
General part information
ELUC3535 Series
Ultraviolet (UV) Emitter 278nm 6.25V 40mA 120° 1414 (3535 Metric)
