UF80B23-BTHR

Active

Mechatronics Fan Group

FAN AXIAL 80X25MM 230VAC TERM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsAC Axial Part Numbering Guide Datasheet

UF80B23-BTHR

Active

Mechatronics Fan Group

FAN AXIAL 80X25MM 230VAC TERM

Deep-Dive with AI

DocumentsAC Axial Part Numbering Guide Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 20.64
		10	$ 18.40
		25	$ 17.58
		50	$ 16.98
		100	$ 16.41
		250	$ 15.67

Description

General part information

UF80B Series

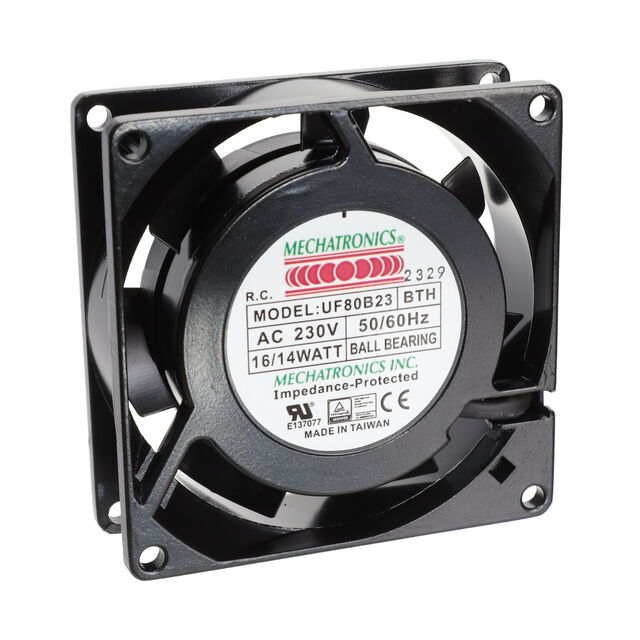

Fan Tubeaxial 230VAC Square - 80mm L x 80mm H Ball 24.0 CFM (0.672m³/min) 2 Terminals

Documents

Technical documentation and resources

AC Axial Part Numbering Guide

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	UF80B23-BTHR	UF80B Series

Air Flow	24 CFM	18 - 24 CFM
Air Flow	0.672 mł/min	0.504 - 0.672 mł/min
Approval Agency	CE, cUL, TUV, UL	CE, cUL, TUV, UL, CE
Bearing Type	Ball	Ball, Sleeve
Current Rating (Amps)	70 mA	60 - 120 mA
Fan Type	Tubeaxial	Tubeaxial
Features	-	Dual Voltage
Material - Blade	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Material - Frame	Aluminum	Aluminum
Noise	35 dB	31 - 35 dB
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-40 °C	-40 °C
Operating Temperature [Min]	-40 °C	-40 °C
Power (Watts)	14 Watts	11 - 14 Watts
RPM	3100 RPM	2400 - 3100 RPM
Size / Dimension [x]	80 mm	80 mm
Size / Dimension [y]	80 mm	80 mm
Static Pressure	0.22 in H2O	0.14 - 0.22 in H2O
Static Pressure	54.8 Pa	34.9 - 54.8 Pa
Termination	2 Terminals	2 Terminals, 2 Wire Leads
Voltage - Rated	230 VAC	115 - 230 VAC
Voltage - Rated	-	230 VAC
Voltage - Rated	-	115 VAC
Weight	0.617 lb	0.617 lb
Weight	279.87 g	279.87 g
Width [y]	25 mm	25 mm

UF80B Series

FAN AXIAL 80X25MM 230VAC TERM

Part	Width [y]	Current Rating (Amps)	Size / Dimension [y]	Size / Dimension [x]	Voltage - Rated	Approval Agency	Static Pressure	Static Pressure	RPM	Material - Frame	Fan Type	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Air Flow	Air Flow	Material - Blade	Bearing Type	Power (Watts)	Noise	Weight	Weight	Termination	Voltage - Rated [Max]	Voltage - Rated [Min]	Features
Mechatronics Fan Group UF80B23-BTHR	25 mm	70 mA	80 mm	80 mm	230 VAC	CE, cUL, TUV, UL	0.22 in H2O	54.8 Pa	3100 RPM	Aluminum	Tubeaxial	70 °C	70 °C	-40 °C	-40 °C	24 CFM	0.672 mł/min	Polybutylene Terephthalate (PBT)	Ball	14 Watts	35 dB	0.617 lb	279.87 g	2 Terminals
Mechatronics Fan Group UF80B12-BTLR	25 mm	120 mA	80 mm	80 mm	115 VAC	CE, cUL, TUV, UL	0.14 in H2O	34.9 Pa	2400 RPM	Aluminum	Tubeaxial	70 °C	70 °C	-40 °C	-40 °C	18 CFM	0.504 m³/min	Polybutylene Terephthalate (PBT)	Ball	11 W	31 dB(A)	0.617 lb	279.87 g	2 Terminals
Mechatronics Fan Group UF80B23-BTLR	25 mm	60 mA	80 mm	80 mm	230 VAC	CE, cUL, TUV, UL	0.14 in H2O	34.9 Pa	2400 RPM	Aluminum	Tubeaxial	70 °C	70 °C	-40 °C	-40 °C	18 CFM	0.504 m³/min	Polybutylene Terephthalate (PBT)	Ball	14 Watts	31 dB(A)	0.617 lb	279.87 g	2 Terminals
Mechatronics Fan Group UF80B12-STHR	25 mm	120 mA	80 mm	80 mm	115 VAC	CE, cUL, TUV, UL	0.22 in H2O	54.8 Pa	3100 RPM	Aluminum	Tubeaxial	70 °C	70 °C	-40 °C	-40 °C	24 CFM	0.672 mł/min	Polybutylene Terephthalate (PBT)	Sleeve	11 W	35 dB	0.617 lb	279.87 g	2 Terminals
Mechatronics Fan Group UF80B12/23-BWHR	25 mm		80 mm	80 mm		CE, cUL, TUV, UL				Aluminum	Tubeaxial	70 °C	70 °C	-40 °C	-40 °C			Polybutylene Terephthalate (PBT)	Ball			0.617 lb	279.87 g	2 Wire Leads	230 VAC	115 VAC	Dual Voltage
Mechatronics Fan Group UF80B12-SWHR	25 mm	120 mA	80 mm	80 mm	115 VAC	CE, cUL, TUV, UL	0.22 in H2O	54.8 Pa	3100 RPM	Aluminum	Tubeaxial	70 °C	70 °C	-40 °C	-40 °C	24 CFM	0.672 mł/min	Polybutylene Terephthalate (PBT)	Sleeve	11 W	35 dB	0.617 lb	279.87 g	2 Wire Leads
Mechatronics Fan Group UF80B23-BWHR	25 mm	70 mA	80 mm	80 mm	230 VAC	CE, cUL, TUV, UL	0.22 in H2O	54.8 Pa	3100 RPM	Aluminum	Tubeaxial	70 °C	70 °C	-40 °C	-40 °C	24 CFM	0.672 mł/min	Polybutylene Terephthalate (PBT)	Ball	14 Watts	35 dB	0.617 lb	279.87 g	2 Wire Leads
Mechatronics Fan Group UF80B12-BWHR	25 mm	120 mA	80 mm	80 mm	115 VAC	CE, cUL, TUV, UL	0.22 in H2O	54.8 Pa	3100 RPM	Aluminum	Tubeaxial	70 °C	70 °C	-40 °C	-40 °C	24 CFM	0.672 mł/min	Polybutylene Terephthalate (PBT)	Ball	11 W	35 dB	0.617 lb	279.87 g	2 Wire Leads
Mechatronics Fan Group UF80B12-BWLR	25 mm	120 mA	80 mm	80 mm	115 VAC	CE, cUL, TUV, UL	0.14 in H2O	34.9 Pa	2400 RPM	Aluminum	Tubeaxial	70 °C	70 °C	-40 °C	-40 °C	18 CFM	0.504 m³/min	Polybutylene Terephthalate (PBT)	Ball	11 W	31 dB(A)	0.617 lb	279.87 g	2 Wire Leads
Mechatronics Fan Group UF80B12-BTHR	25 mm	120 mA	80 mm	80 mm	115 VAC	CE, cUL, TUV, UL	0.22 in H2O	54.8 Pa	3100 RPM		Tubeaxial	70 °C	70 °C	-40 °C	-40 °C	24 CFM	0.672 mł/min	Polybutylene Terephthalate (PBT)	Ball	11 W	35 dB			2 Terminals
