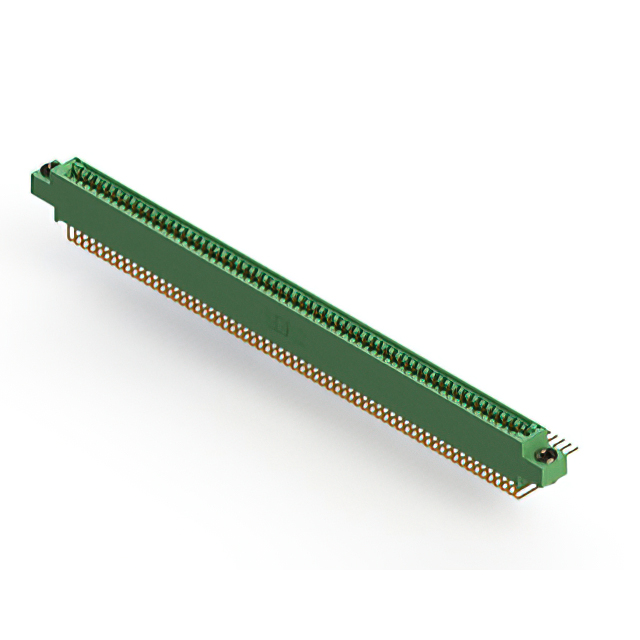

345-130-558-803
ActiveEDAC Inc.
CONN EDGE DUAL FML 130POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
345-130-558-803
ActiveEDAC Inc.
CONN EDGE DUAL FML 130POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 345-130-558-803 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Mount Opening, Floating Bobbin |
| Flange Feature [diameter] | 2.95 mm |
| Flange Feature [diameter] | 0.116 in |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 130 |
| Number of Positions/Bay/Row [custom] | 65 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
345-130 Series
...
| Part | Number of Rows | Number of Positions/Bay/Row [custom] | Termination | Contact Finish | Contact Material | Termination Rows | Number of Positions | Read Out | Material - Insulation | Color | Card Type | Contact Finish Thickness | Contact Finish Thickness | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Contact Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Mounting Type | Gender | Features | Operating Temperature [Min] | Operating Temperature [Max] | Pitch [x] | Pitch [x] | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 2 | 65 | Solder Eyelet(s) | Gold | Copper Alloy | 2 | 130 | Dual | Polyester Thermoplastic | Green | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Board Edge Straddle Mount | Female | Card Extender | -40 °C | 105 ░C | 2.54 mm | 0.1 in | ||
EDAC Inc. | 2 | 65 | Solder Eyelet(s) | Gold | Copper Alloy | 2 | 130 | Dual | Polyester Thermoplastic | Green | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Board Edge Straddle Mount | Female | Card Extender | -40 °C | 105 ░C | 2.54 mm | 0.1 in | ||
EDAC Inc. | 2 | 65 | Wire Wrap | Gold | Copper Alloy | 2 | 130 | Dual | Polyester Thermoplastic | Green | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | 4-40 Flush Mount Threaded Insert Top Opening | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Female | -40 °C | 105 ░C | 2.54 mm | 0.1 in | |||||
EDAC Inc. | 2 | 65 | Solder | Gold | Copper Alloy | 2 | 130 | Dual | Polyester Thermoplastic | Green | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | 4-40 Threaded Insert Top Mount Opening | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Female | Card Guides | -40 °C | 105 ░C | 2.54 mm | 0.1 in | ||||
EDAC Inc. | 2 | 65 | Solder | Gold | Copper Alloy | 2 | 130 | Dual | Polyester Thermoplastic | Green | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | 4-40 Flush Mount Threaded Insert Top Opening | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Board Edge Straddle Mount | Female | -40 °C | 105 ░C | 2.54 mm | 0.1 in | |||||
EDAC Inc. | 2 | 65 | Solder Eyelet(s) | Gold | Copper Alloy | 2 | 130 | Dual | Polyester Thermoplastic | Green | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | 3.96 mm | Top Mount Opening Unthreaded | 0.156 in | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Board Edge Straddle Mount | Female | Card Extender | -40 °C | 105 ░C | 2.54 mm | 0.1 in | ||
EDAC Inc. | 2 | 65 | Wire Wrap | Gold | Copper Alloy | 2 | 130 | Dual | Polyester Thermoplastic | Green | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | 4-40 Threaded Insert Top Mount Opening | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Female | Card Guides | -40 °C | 105 ░C | 2.54 mm | 0.1 in | ||||
EDAC Inc. | 2 | 65 | Wire Wrap | Gold | Copper Alloy | 2 | 130 | Dual | Polyester Thermoplastic | Green | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | 4-40 Threaded Insert Top Mount Opening | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Female | Card Guides | -40 °C | 105 ░C | 2.54 mm | 0.1 in | ||||
EDAC Inc. | 2 | 65 | Solder | Gold | Copper Alloy | 2 | 130 | Dual | Polyester Thermoplastic | Green | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole Right Angle | Female | -40 °C | 105 ░C | 2.54 mm | 0.1 in | |||
EDAC Inc. | 2 | 65 | Solder | Gold | Copper Alloy | 2 | 130 | Dual | Polyester Thermoplastic | Green | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | Side Mount Opening Unthreaded | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Board Edge Straddle Mount | Female | Card Extender | -40 °C | 105 ░C | 2.54 mm | 0.1 in | 3.25 mm | 0.128 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 19.76 | |
Description
General part information
345-130 Series
130 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
