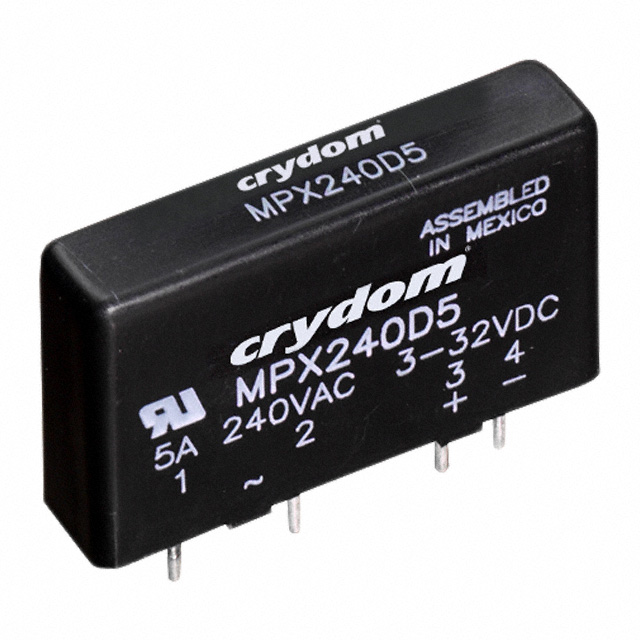

MPX240D5R
ObsoleteSensata-Crydom
SSR RELAY SPST-NO 5A 12-280V
Deep-Dive with AI
Search across all available documentation for this part.
MPX240D5R
ObsoleteSensata-Crydom
SSR RELAY SPST-NO 5A 12-280V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MPX240D5R |
|---|---|
| Approval Agency | UL, CE |
| Load Current | 5 A |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -30 ░C |
| Output Type | AC |
| Package / Case | 4-SIP |
| Supplier Device Package | 4-SIP |
| Termination Style | PC Pin |
| Voltage - Input [Max] | 32 V |
| Voltage - Input [Min] | 3 V |
| Voltage - Load [Max] | 280 V |
| Voltage - Load [Min] | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
MPX240 Series
Solid State SPST-NO (1 Form A) 4-SIP
