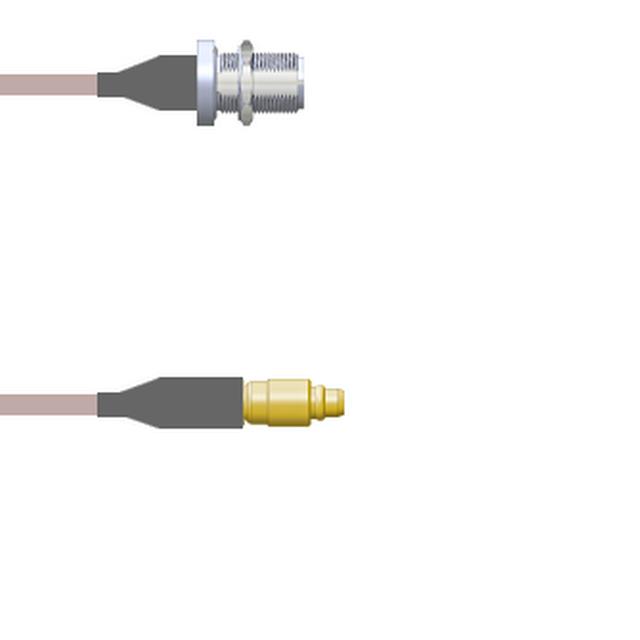

CBL ASSY MMCX-NTYPE PL-JK 9.843"

Deep-Dive with AI

Search across all available documentation for this part.

Q-1U01Q0005.25M

Active

Amphenol Custom Cable

CBL ASSY MMCX-NTYPE PL-JK 9.843"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-1U01Q0005.25M

1st Connector	MMCX Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length [x]	9.843 "
Length [x]	250 mm
Overall Impedance	50 Ohms
Style	MMCX to N-Type

Q-1U01Q0 Series

Part	Length	Length	Length	1st Contact Gender	2nd Connector Mounting Feature	Overall Impedance	1st Connector Mounting Type	2nd Contact Gender	1st Connector	Features	Style	2nd Connector	Frequency - Max [Max]	Cable Type	2nd Connector Mounting Type	Color	Length [x]	Length [x]	Length [x]
Amphenol Custom Cable Q-1U01Q0003108i	2.7 m	9 ft	108 in	Male	Bulkhead - Front Side Nut	50 Ohms	Free Hanging (In-Line)	Female	MMCX Plug	Shielded	MMCX to N-Type	N-Type Jack	6000 MHz	RG-174	Panel Mount	Black
Amphenol Custom Cable Q-1U01Q0003018i				Male	Bulkhead - Front Side Nut	50 Ohms	Free Hanging (In-Line)	Female	MMCX Plug	Shielded	MMCX to N-Type	N-Type Jack	6000 MHz	RG-174	Panel Mount	Black	457.2 mm	457.2 mm
Amphenol Custom Cable Q-1U01Q0005.25M				Male	Bulkhead - Front Side Nut	50 Ohms	Free Hanging (In-Line)	Female	MMCX Plug	Shielded	MMCX to N-Type	N-Type Jack	6000 MHz	RG-316	Panel Mount	Copper		250 mm	9.843 "
Amphenol Custom Cable Q-1U01Q0005012i	304.8 mm		12 "	Male	Bulkhead - Front Side Nut	50 Ohms	Free Hanging (In-Line)	Female	MMCX Plug	Shielded	MMCX to N-Type	N-Type Jack	6000 MHz	RG-316	Panel Mount	Copper
Amphenol Custom Cable Q-1U01Q0005002M	2 m	6.6 ft	78.7 in	Male	Bulkhead - Front Side Nut	50 Ohms	Free Hanging (In-Line)	Female	MMCX Plug	Shielded	MMCX to N-Type	N-Type Jack	6000 MHz	RG-316	Panel Mount	Copper
Amphenol Custom Cable Q-1U01Q0003012i	304.8 mm		12 "	Male	Bulkhead - Front Side Nut	50 Ohms	Free Hanging (In-Line)	Female	MMCX Plug	Shielded	MMCX to N-Type	N-Type Jack	6000 MHz	RG-174	Panel Mount	Black
Amphenol Custom Cable Q-1U01Q0005048i	1200 mm	4 ft	48 in	Male	Bulkhead - Front Side Nut	50 Ohms	Free Hanging (In-Line)	Female	MMCX Plug	Shielded	MMCX to N-Type	N-Type Jack	6000 MHz	RG-316	Panel Mount	Copper
Amphenol Custom Cable Q-1U01Q0003001M	1 m	3.3 ft	39.4 in	Male	Bulkhead - Front Side Nut	50 Ohms	Free Hanging (In-Line)	Female	MMCX Plug	Shielded	MMCX to N-Type	N-Type Jack	6000 MHz	RG-174	Panel Mount	Black
Amphenol Custom Cable Q-1U01Q00052.5M	2.5 m	8.2 '	98.4 in	Male	Bulkhead - Front Side Nut	50 Ohms	Free Hanging (In-Line)	Female	MMCX Plug	Shielded	MMCX to N-Type	N-Type Jack	6000 MHz	RG-316	Panel Mount	Copper
Amphenol Custom Cable Q-1U01Q0005108i	2.7 m	9 ft	108 in	Male	Bulkhead - Front Side Nut	50 Ohms	Free Hanging (In-Line)	Female	MMCX Plug	Shielded	MMCX to N-Type	N-Type Jack	6000 MHz	RG-316	Panel Mount	Copper

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 105.12
		25	$ 103.12
		50	$ 101.11
		100	$ 99.11
		250	$ 97.11

Description

General part information

Q-1U01Q0 Series

Cable Assembly Coaxial MMCX to N-Type RG-316 9.843" (250.00mm)
