CONN RING CIRC 8AWG #1/4 CRIMP

Search across all available documentation for this part.

Active

CONN RING CIRC 8AWG #1/4 CRIMP

Technical Specifications

Parameters and characteristics commom to parts in this series

CONN RING CIRC 8AWG #1/4 CRIMP

Part	Features	Length - Overall [x]	Length - Overall [x]	Mounting Type	Thickness	Thickness	Termination	Width - Outer Edges	Width - Outer Edges	Stud/Tab Size	Terminal Type	Wire Gauge	Insulation	Stud/Tab Size	Length - Overall	Contact Finish	Contact Material	Width - Outer Edges [x]	Width - Outer Edges [x]	Width - Outer Edges [y]	Width - Outer Edges [y]
3M M8-14R/SK	Brazed Seam	24.13 mm	0.95 in	Free Hanging (In-Line)	50 mils	0.05 in	Crimp	10.16 mm	0.4 in	0.25 Stud	Circular	8 AWG	Non-Insulated
3M M8-12R/SK	Brazed Seam		1.41 in	Free Hanging (In-Line)	50 mils	0.05 in	Crimp	20.57 mm	0.81 in		Circular	8 AWG	Non-Insulated	1/2 Stud	35.81 mm
3M M8-38RX-BOTTLE	Brazed Seam	26.92 mm	1.06 "	Free Hanging (In-Line)	50 mils	0.05 in	Crimp				Circular	8 AWG	Non-Insulated	3/8 Stud		Tin	Copper, ETP	14.99 mm	0.59 in
3M M8-14R/SX	Brazed Seam	24.13 mm	0.95 in	Free Hanging (In-Line)	50 mils	0.05 in	Crimp			0.25 Stud	Circular	8 AWG	Non-Insulated							0.47 in	11.94 mm
3M M8-38RK	Brazed Seam	26.92 mm	1.06 "	Free Hanging (In-Line)	50 mils	0.05 in	Crimp				Circular	8 AWG	Non-Insulated	3/8 Stud				14.99 mm	0.59 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

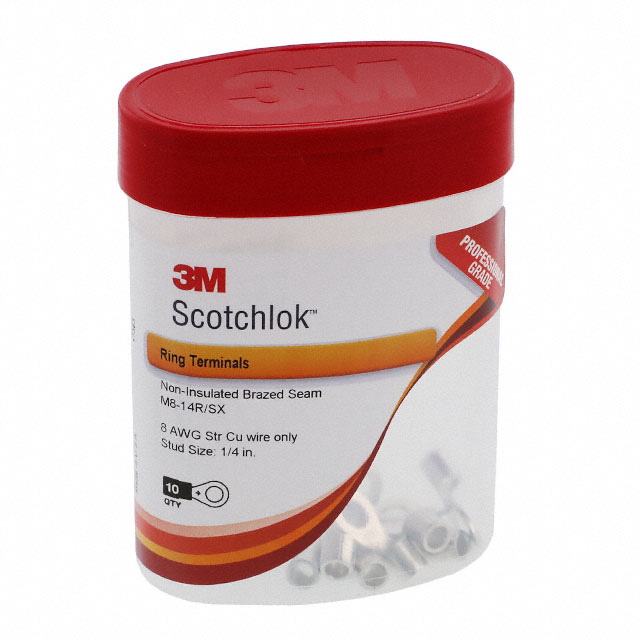

Ring Terminal Connector 1/4 Stud Circular 8 AWG Crimp
