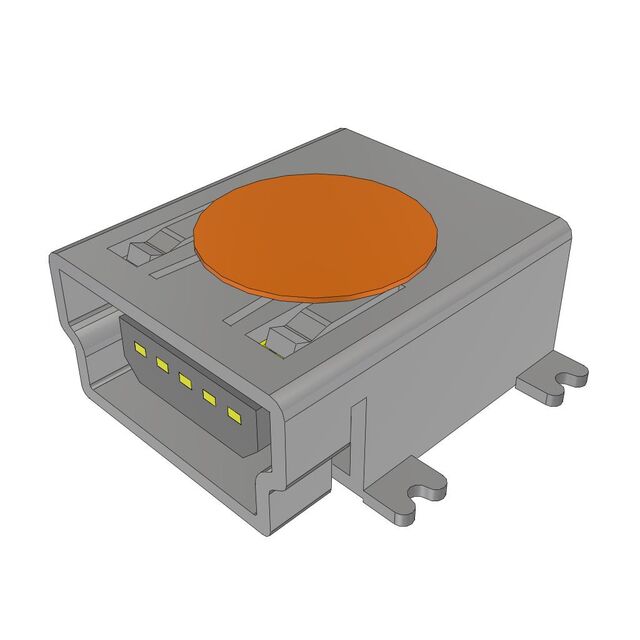

MUSB-05-S-B-SM-A-K

Active

Samtec Inc.

MINI USB 2.0 INTERFACE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet MUSB Datasheet

MUSB-05-S-B-SM-A-K

Active

Samtec Inc.

MINI USB 2.0 INTERFACE

Deep-Dive with AI

DocumentsDatasheet MUSB Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MUSB-05-S-B-SM-A-K

Connector Type	USB - mini B
Contact Finish	Gold
Features	Pick and Place, Board Guide, Solder Retention
Gender	Receptacle
Insulation Color	Black
Material Flammability Rating	UL94 V-0
Mating Cycles	1500
Mounting Feature	Horizontal
Mounting Type	Surface Mount, Right Angle
Number of Contacts	5
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-50 °C
Shell/Shielding Material	Copper Alloy
Shielding	Unshielded
Specifications	USB 2.0
Termination	Solder
Voltage - Rated	30 V

MUSB-05 Series

USB Connectors Mini USB 2.0 Interface

Part	Number of Contacts	Mounting Feature	Shell/Shielding Material	Termination	Voltage - Rated	Operating Temperature [Max]	Operating Temperature [Min]	Mating Cycles	Mounting Type	Number of Ports	Connector Type	Insulation Color	Specifications	Shielding	Contact Finish	Gender	Material Flammability Rating	Features
Samtec Inc. MUSB-05-S-B-SM-A-K	5	Horizontal	Copper Alloy	Solder	30 V	85 °C	-50 °C	1500	Surface Mount Right Angle	1	USB - mini B	Black	USB 2.0	Unshielded	Gold	Receptacle	UL94 V-0	Board Guide Pick and Place Solder Retention
Samtec Inc. MUSB-05-F-B-SM-A-K-TR	5	Horizontal	Copper Alloy	Solder	30 V	85 °C	-50 °C	1500	Surface Mount Right Angle	1	USB - mini B	Black	USB 2.0	Unshielded	Gold	Receptacle	UL94 V-0	Board Guide Pick and Place Solder Retention
Samtec Inc. MUSB-05-F-B-SM-A	5	Horizontal	Copper Alloy	Solder	30 V	85 °C	-50 °C	1500	Surface Mount Right Angle	1	USB - mini B	Black	USB 2.0	Unshielded	Gold	Receptacle	UL94 V-0	Board Guide Solder Retention
Samtec Inc. MUSB-05-F-B-SM-A-R-K	5	Horizontal	Copper Alloy	Solder	30 V	85 °C	-50 °C	1500	Surface Mount Right Angle	1	USB - mini B	Black	USB 2.0	Unshielded	Gold	Receptacle	UL94 V-0	Board Guide Pick and Place Solder Retention
Samtec Inc. MUSB-05-F-B-SM-A-R-K-TR	5	Horizontal	Copper Alloy	Solder	30 V	85 °C	-50 °C	1500	Surface Mount Right Angle	1	USB - mini B	Black	USB 2.0	Unshielded	Gold	Receptacle	UL94 V-0	Board Guide Pick and Place Solder Retention
Samtec Inc. MUSB-05-S-A-SM-A-R-TR	5	Horizontal	Copper Alloy	Solder					Surface Mount Right Angle	1	USB - mini A	Black	USB 2.0	Unshielded	Gold	Receptacle	UL94 V-0	Board Guide Solder Retention
Samtec Inc. MUSB-05-S-AB-SM-A-R-K-TR	5	Horizontal	Copper Alloy	Solder	30 V	85 °C	-50 °C	1500	Surface Mount Right Angle	1		Black	USB 2.0	Unshielded	Gold	Receptacle	UL94 V-0	Board Guide Pick and Place Solder Retention
Samtec Inc. MUSB-05-S-AB-SM-A-K-TR	5	Horizontal	Copper Alloy	Solder	30 V	85 °C	-50 °C	1500	Surface Mount Right Angle	1		Black	USB 2.0	Unshielded	Gold	Receptacle	UL94 V-0	Board Guide Pick and Place Solder Retention
Samtec Inc. MUSB-05-S-B-SM-A	5	Horizontal	Copper Alloy	Solder	30 V	85 °C	-50 °C	1500	Surface Mount Right Angle	1	USB - mini B	Black	USB 2.0	Unshielded	Gold	Receptacle	UL94 V-0	Board Guide Solder Retention
Samtec Inc. MUSB-05-F-B-SM-A-R-TR	5	Horizontal	Copper Alloy	Solder	30 V	85 °C	-50 °C	1500	Surface Mount Right Angle	1	USB - mini B	Black	USB 2.0	Unshielded	Gold	Receptacle	UL94 V-0	Board Guide Solder Retention

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 2.01
		50	$ 1.56
		100	$ 1.26
		500	$ 1.07
		1000	$ 1.02

Description

General part information

MUSB-05 Series

USB Connectors Mini USB 2.0 Interface

Documents

Technical documentation and resources

Datasheet

MUSB Datasheet

Datasheet
