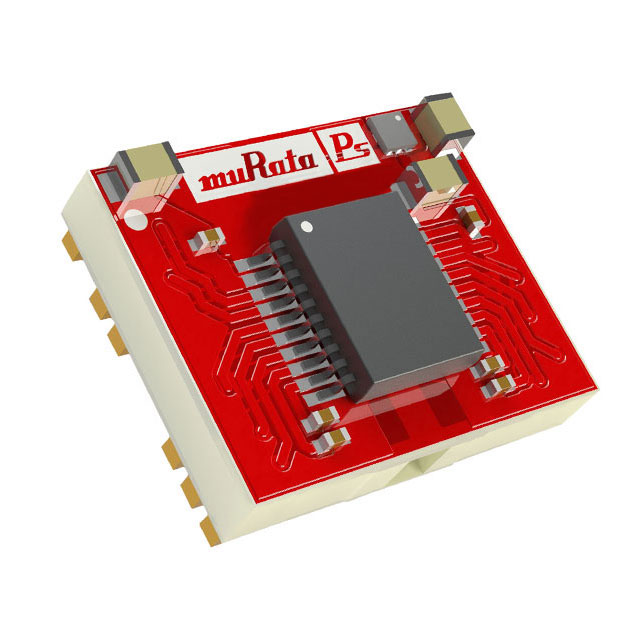

NMTTLD6S5MC-R7

Active

Murata Power Solutions Inc.

DGTL ISOL 1500VAC 2CH GEN PURP

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

DGTL ISOL 1500VAC 2CH GEN PURP

Technical Specifications

Parameters and characteristics for this part

Specification	NMTTLD6S5MC-R7

Channel Type	Unidirectional
Common Mode Transient Immunity (Min) [Min]	25 kV/µs
Data Rate	25 MBd
Inputs - Side 1/Side 2	1/1
Isolated Power	True
Number of Channels [custom]	2
Operating Temperature [Max]	203 °F
Operating Temperature [Min]	-40 °C
Package / Case	Module
Propagation Delay tpLH / tpHL (Max) [Max]	33 ns
Pulse Width Distortion (Max) [Max]	3 ns
Technology	Magnetic Coupling
Type	General Purpose
Voltage - Isolation	1500 VAC
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	4.5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DGTL ISOL 1500VAC 2CH GEN PURP

Part	Package / Case	Propagation Delay tpLH / tpHL (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply [Min]	Voltage - Supply [Max]	Inputs - Side 1/Side 2	Isolated Power	Pulse Width Distortion (Max) [Max]	Common Mode Transient Immunity (Min) [Min]	Technology	Channel Type	Data Rate	Number of Channels [custom]	Type	Voltage - Isolation
Murata Power Solutions Inc. NMTTLD6S5MC-R7	Module	33 ns	-40 °C	203 °F	4.5 V	5.5 V	1/1		3 ns	25 kV/µs	Magnetic Coupling	Unidirectional	25 MBd	2	General Purpose	1500 VAC

General part information

General Purpose Digital Isolator 1500VAC 2 Channel 25Mbps 25kV/µs CMTI Module
