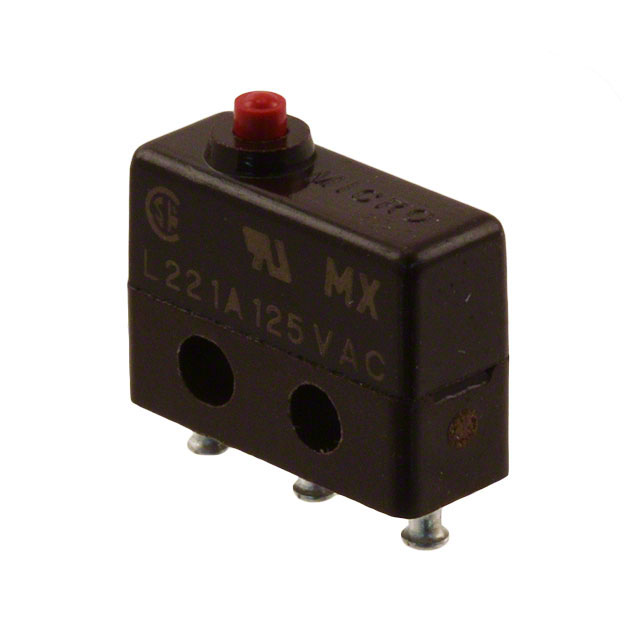

12SX3-T

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 1A 125V

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 1A 125V

Technical Specifications

Parameters and characteristics commom to parts in this series

SWITCH SNAP ACTION SPDT 1A 125V

Part	Voltage Rating - AC	Overtravel	Overtravel	Switch Function	Operating Force	Pretravel	Pretravel	Mechanical Life	Termination Style	Mounting Type	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]	Circuit	Voltage Rating - DC	Operating Position	Operating Position	Release Force	Operating Force [Max]	Operating Force [Min]	Differential Travel	Differential Travel
Honeywell Sensing and Productivity Solutions 12SX1-T	125 V	0.004 in	0.1 mm	On-Mom	141 gf	0.02 in	0.5 mm	10000000 Cycles	Solder Turret	Chassis Mount	Round (Pin Plunger)	-55 °C	125 °C	SPDT	30 V	8.13 mm	0.32 in	28 gf
Honeywell Sensing and Productivity Solutions 12SX3-T	125 V	0.004 in	0.1 mm	On-Mom		0.02 in	0.5 mm	10000000 Cycles	Solder Turret	Chassis Mount	Round (Pin Plunger)	-55 °C	125 °C	SPDT	28 V	8.13 mm	0.32 in	28 gf	141 gf	71 gf	0.025 mm	0.001 in
Honeywell Sensing and Productivity Solutions 12SX14-T	125 V	0.004 in	0.1 mm	On-Mom		0.02 in	0.5 mm	10000000 Cycles	Solder Turret	Chassis Mount	Round (Pin Plunger)	-55 °C	125 °C	SPDT	30 V	8.13 mm	0.32 in	28 gf	141 gf	71 gf	0.05 mm	0.002 in
Honeywell Sensing and Productivity Solutions 12SX9-T	125 V	0.01 in	0.25 mm	On-Mom	141 gf	0.02 in	0.5 mm	10000000 Cycles	Solder Turret	Chassis Mount	Round (Pin Plunger)	-55 °C	125 °C	SPDT	30 V	8.13 mm	0.32 in	28 gf

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Switch SPDT Chassis Mount
