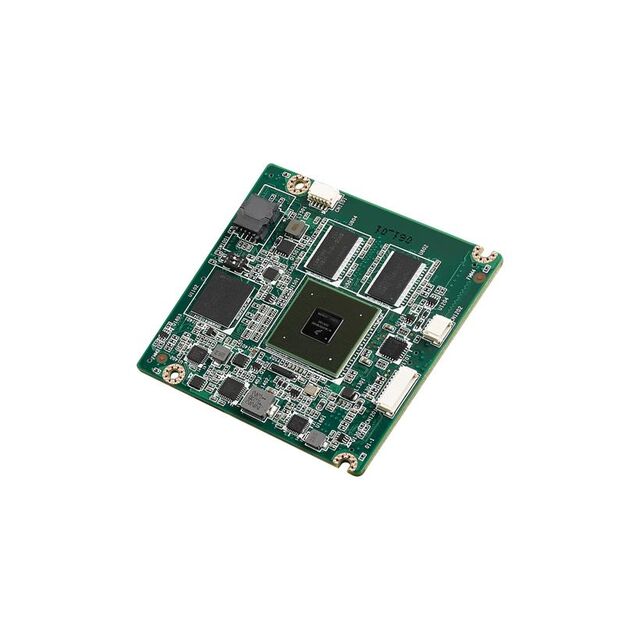

ROM-3420WD-MDA1E
ActiveAdvantech Corp
SBC 1.0GHZ 2 CORE 1GB/1GB RAM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ROM-3420WD-MDA1E |
|---|---|
| Cooling Type | Heat Sink |
| Core Processor | ARM Cortex-A9, i.MX6Dual |
| Digital I/O Lines | 10 |
| Ethernet | 10 Mbps, 1000 Mbps, 100 Mbps |
| Expansion Site/Bus | PCIe |
| Form Factor | RTX 2.0 |
| Number of Cores | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 6.25 W |
| RAM Capacity/Installed | 1GB/1GB |
| Size / Dimension [x] | 68.58 mm |
| Size / Dimension [x] | 2.7 in |
| Size / Dimension [y] | 2.7 " |
| Size / Dimension [y] | 68.58 mm |
| Speed | 1 GHz |
| Storage Interface | SATA 2.0 (1) |
| USB | USB 2.0 (2) |
| Watchdog Timer | True |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 282.24 | |
Description
General part information
ROM-3420 Series
Single Board Computer 1.0GHz 2 Core 1GB/1GB RAM ARM Cortex-A9, i.MX6Dual
