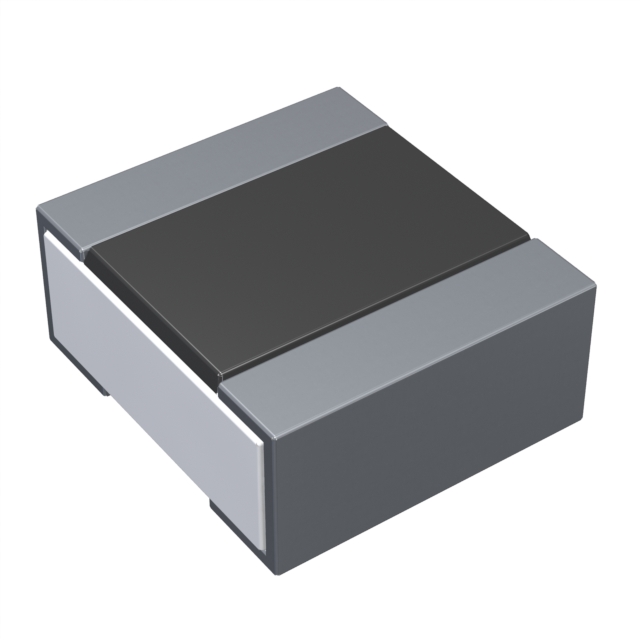

CR0402-J/-4R3GLF

Active

Bourns Inc.

RES SMD 4.3 OHM 5% 1/16W 0402

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CR0402-J/-4R3GLF

Active

Bourns Inc.

RES SMD 4.3 OHM 5% 1/16W 0402

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CR0402-J/-4R3GLF

Composition	Thick Film
Height - Seated (Max) [Max]	0.016 in
Height - Seated (Max) [Max]	0.4 mm
Number of Terminations	2
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Package / Case	0402 (1005 Metric)
Power (Watts)	0.0625 W
Power (Watts)	0.063 W
Resistance	4.3 Ohms
Size / Dimension [x]	1 mm
Size / Dimension [x]	0.039 in
Size / Dimension [y]	0.02 in
Size / Dimension [y]	0.5 mm
Supplier Device Package	0402
Temperature Coefficient [Max]	500 ppm/°C
Temperature Coefficient [Min]	-250 ppm/°C
Tolerance	5 %

CR0402 Series

...

Part	Power (Watts)	Power (Watts)	Resistance	Composition	Tolerance	Number of Terminations	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Temperature Coefficient	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Temperature Coefficient [Min]	Temperature Coefficient [Max]
Bourns Inc. CR0402-FX-3162GLF	0.0625 W	0.063 W	31.6 kOhms	Thick Film	1 %	2	0402 (1005 Metric)	1 mm	0.02 in	0.5 mm	0.039 in	100 ppm/°C	155 °C	-55 °C	0402	0.016 in	0.4 mm
Bourns Inc. CR0402-JW-332GLF	0.0625 W	0.063 W	3300 Ohms	Thick Film	5 %	2	0402 (1005 Metric)	1 mm	0.02 in	0.5 mm	0.039 in	200 ppm/°C	155 °C	-55 °C	0402	0.016 in	0.4 mm
Bourns Inc. CR0402-FX-27R4GLF	0.0625 W	0.063 W	27.4 Ohms	Thick Film	1 %	2	0402 (1005 Metric)	1 mm	0.02 in	0.5 mm	0.039 in	100 ppm/°C	155 °C	-55 °C	0402	0.016 in	0.4 mm
Bourns Inc. CR0402-FX-4703GLF	0.0625 W	0.063 W	470 kOhms	Thick Film	1 %	2	0402 (1005 Metric)	1 mm	0.02 in	0.5 mm	0.039 in	100 ppm/°C	155 °C	-55 °C	0402	0.016 in	0.4 mm
Bourns Inc. CR0402-FX-1802GLF	0.0625 W	0.063 W	18 kOhms	Thick Film	1 %	2	0402 (1005 Metric)	1 mm	0.02 in	0.5 mm	0.039 in	100 ppm/°C	155 °C	-55 °C	0402	0.016 in	0.4 mm
Bourns Inc. CR0402-J/-6R8GLF	0.0625 W	0.063 W	6.8 Ohms	Thick Film	5 %	2	0402 (1005 Metric)	1 mm	0.02 in	0.5 mm	0.039 in		155 °C	-55 °C	0402	0.016 in	0.4 mm	-250 ppm/°C	500 ppm/°C
Bourns Inc. CR0402-J/-4R3GLF	0.0625 W	0.063 W	4.3 Ohms	Thick Film	5 %	2	0402 (1005 Metric)	1 mm	0.02 in	0.5 mm	0.039 in		155 °C	-55 °C	0402	0.016 in	0.4 mm	-250 ppm/°C	500 ppm/°C
Bourns Inc. CR0402-FX-3002GLF	0.0625 W	0.063 W		Thick Film	1 %	2	0402 (1005 Metric)	1 mm	0.02 in	0.5 mm	0.039 in	100 ppm/°C	155 °C	-55 °C	0402	0.016 in	0.4 mm
Bourns Inc. CR0402-FX-4221GLF	0.0625 W	0.063 W	4.22 kOhms	Thick Film	1 %	2	0402 (1005 Metric)	1 mm	0.02 in	0.5 mm	0.039 in	100 ppm/°C	155 °C	-55 °C	0402	0.016 in	0.4 mm
Bourns Inc. CR0402-FX-10R0GLF	0.0625 W	0.063 W	10 Ohms	Thick Film	1 %	2	0402 (1005 Metric)	1 mm	0.02 in	0.5 mm	0.039 in	100 ppm/°C	155 °C	-55 °C	0402	0.016 in	0.4 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	20000	$ 0.00

Description

General part information

CR0402 Series

4.3 Ohms ±5% 0.063W, 1/16W Chip Resistor 0402 (1005 Metric) Thick Film
