PZC02SAAN

Obsolete

Sullins Connector Solutions

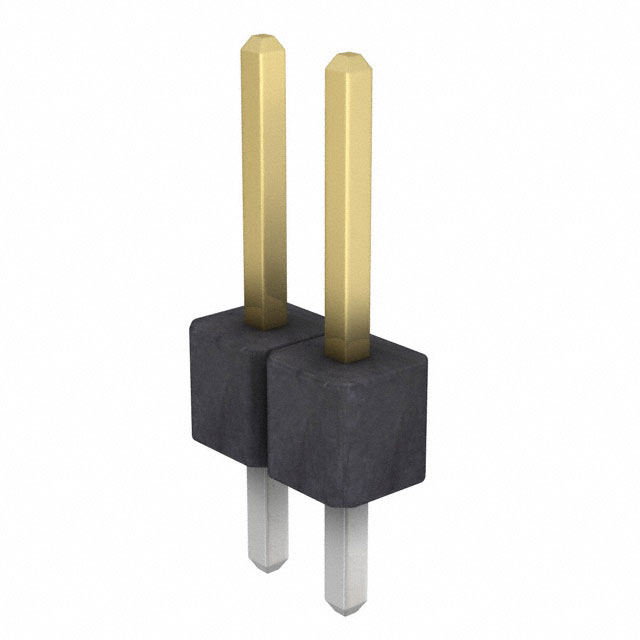

BOARD CONNECTOR, 2 CONTACT(S), 1 ROW(S), MALE, STRAIGHT, 0.1 INCH PITCH, SOLDER TERMINAL, BLACK INSULATOR, RECEPTACLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PZC02SAAN

Obsolete

Sullins Connector Solutions

BOARD CONNECTOR, 2 CONTACT(S), 1 ROW(S), MALE, STRAIGHT, 0.1 INCH PITCH, SOLDER TERMINAL, BLACK INSULATOR, RECEPTACLE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PZC02SAAN

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Length - Post [x]	0.12 in
Contact Length - Post [x]	3.05 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Polyester, Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Overall Contact Length	0.45 "
Overall Contact Length	11.43 mm
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

PZC02 Series

Part	Contact Material	Shrouding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Number of Rows	Connector Type	Contact Finish - Mating	Number of Positions	Contact Length - Mating [x]	Contact Length - Mating	Contact Length - Post	Contact Length - Post	Contact Type	Current Rating (Amps)	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Material	Insulation Color	Termination	Insulation Height	Insulation Height	Material Flammability Rating	Number of Positions Loaded	Style	Mounting Type	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Contact Shape	Overall Contact Length	Overall Contact Length	Contact Length - Post [x]	Contact Length - Post [x]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Mating [x]
Sullins Connector Solutions PZC02SBBN	Copper Alloy	Unshrouded	10 çin	0.25 çm	Push-Pull	1	Header	Gold	2	0.23 in	5.84 mm	0.23 in	5.84 mm	Male Pin	3 A	2.54 µm	100 µin	Polyester Thermoplastic	Black	Solder	3.56 mm	0.14 in	UL94 V-0	All	Board to Board Cable	Through Hole Right Angle	Tin	0.1 in	2.54 mm	Square
Sullins Connector Solutions PZC02SAAN	Copper Alloy	Unshrouded	10 çin	0.25 çm	Push-Pull	1	Header	Gold	2	0.23 in	5.84 mm			Male Pin	3 A	2.54 µm	100 µin	Polyester Thermoplastic	Black	Solder	2.54 mm	0.1 in	UL94 V-0	All	Board to Board Cable	Through Hole	Tin	0.1 in	2.54 mm	Square	0.45 "	11.43 mm	0.12 in	3.05 mm
Sullins Connector Solutions PZC02DBBN	Copper Alloy	Unshrouded	10 çin	0.25 çm	Push-Pull	2	Header	Gold	4	0.23 in	5.84 mm	0.23 in	5.84 mm	Male Pin	3 A	2.54 µm	100 µin	Polyester Thermoplastic	Black	Solder	6.1 mm	0.24 in	UL94 V-0	All	Board to Board Cable	Through Hole Right Angle	Tin	0.1 in	2.54 mm	Square					2.54 mm	0.1 in
Sullins Connector Solutions PZC02SFBN	Copper Alloy	Unshrouded	10 çin	0.25 çm	Push-Pull	1	Header	Gold	2	0.318 "		0.22 in	5.58 mm	Male Pin	3 A	2.54 µm	100 µin	Polyester Thermoplastic	Black	Solder	2.54 mm	0.1 in	UL94 V-0	All	Board to Board Cable	Through Hole	Tin	0.1 in	2.54 mm	Square	0.638 in	16.21 mm					8.08 mm
Sullins Connector Solutions PZC02DFCN	Copper Alloy	Unshrouded	10 çin	0.25 çm	Push-Pull	2	Header	Gold	4	0.318 "				Male Pin	3 A	2.54 µm	100 µin	Polyester Thermoplastic	Black	Solder	2.54 mm	0.1 in	UL94 V-0	All	Board to Board Cable	Through Hole	Tin	0.1 in	2.54 mm	Square	0.738 "	18.75 mm	0.32 in	8.13 mm	2.54 mm	0.1 in	8.08 mm
Sullins Connector Solutions PZC02DAEN	Copper Alloy	Unshrouded	10 çin	0.25 çm	Push-Pull	2	Header	Gold	4	0.23 in	5.84 mm	0.52 "	13.21 mm	Male Pin	3 A	2.54 µm	100 µin	Polyester Thermoplastic	Black	Solder	2.54 mm	0.1 in	UL94 V-0	All	Board to Board Cable	Through Hole	Tin	0.1 in	2.54 mm	Square	0.85 in	21.59 mm			2.54 mm	0.1 in
Sullins Connector Solutions PZC02SADN	Copper Alloy	Unshrouded	10 çin	0.25 çm	Push-Pull	1	Header	Gold	2	0.23 in	5.84 mm			Male Pin	3 A	2.54 µm	100 µin	Polyester Thermoplastic	Black	Solder	2.54 mm	0.1 in	UL94 V-0	All	Board to Board Cable	Through Hole	Tin	0.1 in	2.54 mm	Square	0.75 in	19.05 mm	0.42 in	10.67 mm
Sullins Connector Solutions PZC02SGAN	Copper Alloy	Unshrouded	10 çin	0.25 çm	Push-Pull	1	Header	Gold	2	0.318 "				Male Pin	3 A	2.54 µm	100 µin	Polyester Thermoplastic	Black	Solder	3.56 mm	0.14 in	UL94 V-0	All	Board to Board Cable	Through Hole Right Angle	Tin	0.1 in	2.54 mm	Square			0.12 in	3.05 mm			8.08 mm
Sullins Connector Solutions PZC02DFDN	Copper Alloy	Unshrouded	10 çin	0.25 çm	Push-Pull	2	Header	Gold	4	0.318 "				Male Pin	3 A	2.54 µm	100 µin	Polyester Thermoplastic	Black	Solder	2.54 mm	0.1 in	UL94 V-0	All	Board to Board Cable	Through Hole	Tin	0.1 in	2.54 mm	Square	0.838 in	21.29 mm	0.42 in	10.67 mm	2.54 mm	0.1 in	8.08 mm
Sullins Connector Solutions PZC02DBAN	Copper Alloy	Unshrouded	10 çin	0.25 çm	Push-Pull	2	Header	Gold	4	0.23 in	5.84 mm			Male Pin	3 A	2.54 µm	100 µin	Polyester Thermoplastic	Black	Solder	6.1 mm	0.24 in	UL94 V-0	All	Board to Board Cable	Through Hole Right Angle	Tin	0.1 in	2.54 mm	Square			0.12 in	3.05 mm	2.54 mm	0.1 in
