6008899

Active

SICK, Inc.

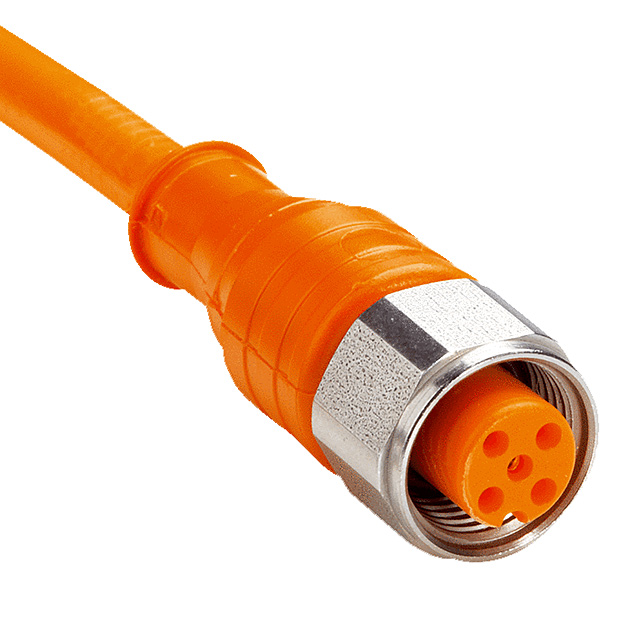

CIRC CBL 5POS PLUG TO WIRE 6.56'

Search across all available documentation for this part.

Active

SICK, Inc.

CIRC CBL 5POS PLUG TO WIRE 6.56'

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	6008899	DOL-1205 Series

1st Connector Gender	Female Sockets	Female Sockets
1st Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
1st Connector Number of Positions	5	5
1st Connector Number of Positions Loaded	All	All
1st Connector Shell Size - Insert	M12	M12
1st Connector Type	Plug	Plug
2nd Connector Type	Wire Leads	Wire Leads
Assembly Configuration	Standard	Standard
Cable Material	Polyvinyl Chloride (PVC)	Polyvinyl Chloride (PVC)
Cable Type	Round	Round
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Length [x]	2 m	2 - 15 m
Length [x]	6.56 ft	6.56 - 49.2 ft
Shielding	Unshielded	Unshielded
Usage	Industrial Environments	Industrial Environments

CIRC CBL 5POS PLUG TO WIRE 6.56'

Part	Cable Material	Ingress Protection	1st Connector Number of Positions Loaded	Usage	Shielding	1st Connector Gender	Assembly Configuration	Cable Type	2nd Connector Type	1st Connector Number of Positions	1st Connector Shell Size - Insert	1st Connector Mounting Type	Length [x]	Length [x]	1st Connector Type
SICK, Inc. 6008899	Polyvinyl Chloride (PVC)	IP67 - Dust Tight, Waterproof	All	Industrial Environments	Unshielded	Female Sockets	Standard	Round	Wire Leads	5	M12	Free Hanging (In-Line)	2 m	6.56 ft	Plug
SICK, Inc. 6029215	Polyvinyl Chloride (PVC)	IP67 - Dust Tight, Waterproof	All	Industrial Environments	Unshielded	Female Sockets	Standard	Round	Wire Leads	5	M12	Free Hanging (In-Line)	15 m	49.2 ft	Plug
SICK, Inc. 6009868	Polyvinyl Chloride (PVC)	IP67 - Dust Tight, Waterproof	All	Industrial Environments	Unshielded	Female Sockets	Standard	Round	Wire Leads	5	M12	Free Hanging (In-Line)			Plug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Circular Cable Assembly Unshielded 6.56' (2.00m)

Technical documentation and resources

No documents available
