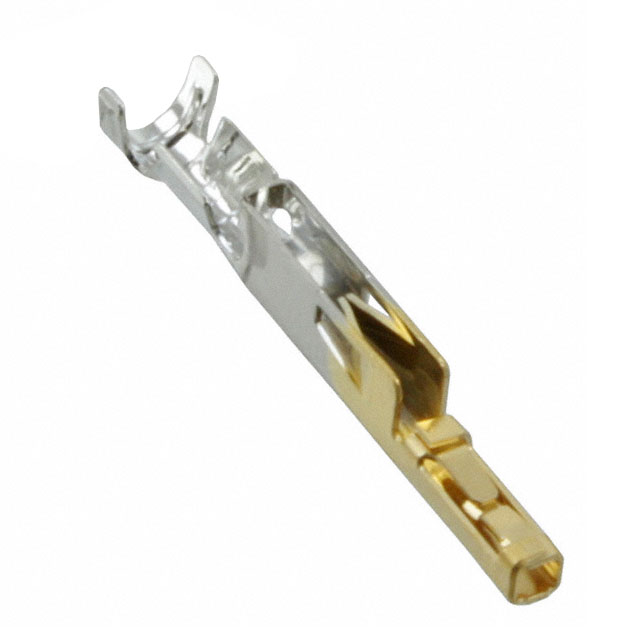

IL-AG5-C1-1E-5000
ActiveJAE Electronics
CONN SOCKET 18-22AWG CRIMP GOLD
Deep-Dive with AI
Search across all available documentation for this part.
IL-AG5-C1-1E-5000
ActiveJAE Electronics
CONN SOCKET 18-22AWG CRIMP GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | IL-AG5-C1-1E-5000 |
|---|---|
| Contact Finish | Gold |
| Contact Termination | Crimp |
| Pin or Socket | Socket |
| Wire Gauge [Max] | 22 AWG |
| Wire Gauge [Min] | 17.5 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.42 | |
| 10 | $ 0.37 | |||
| 25 | $ 0.34 | |||
| 50 | $ 0.32 | |||
| 100 | $ 0.30 | |||
| 250 | $ 0.28 | |||
| 500 | $ 0.26 | |||
| 1000 | $ 0.22 | |||
| 2500 | $ 0.20 | |||
| Tape & Reel (TR) | 5000 | $ 0.16 | ||
Description
General part information
IL-AG5-C Series
Socket Contact Gold 18-22 AWG Crimp
