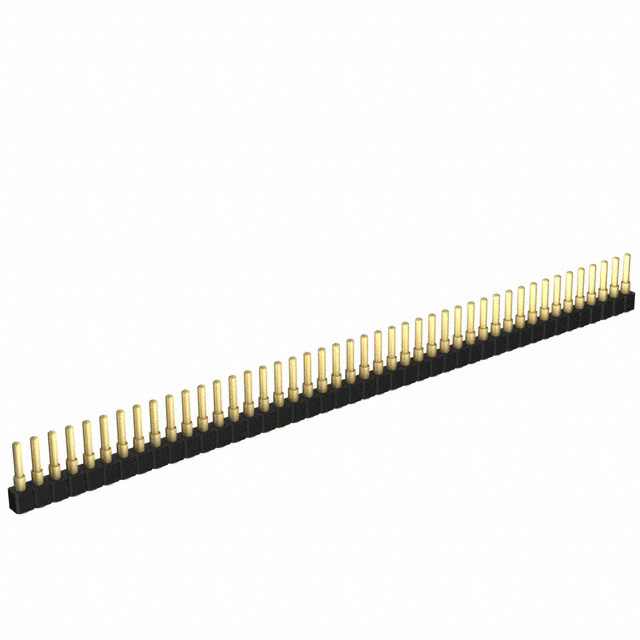

812-22-044-30-000101

Active

Mill-Max Manufacturing Corp.

CONN SPRING PISTON 44POS SMD

Search across all available documentation for this part.

Active

Mill-Max Manufacturing Corp.

CONN SPRING PISTON 44POS SMD

Technical Specifications

Parameters and characteristics for this part

...

Part	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Connector Type	Pitch [x]	Pitch [x]	Contact Finish	Material	Number of Contacts	Number of Contacts [custom]
Mill-Max Manufacturing Corp. 812-22-005-30-007101	Surface Mount	0.51 µm	20 µin	1	Piston	2.54 mm	0.1 in	Gold	Copper Alloy	5
Mill-Max Manufacturing Corp. 812-22-030-30-004101	Surface Mount	0.51 µm	20 µin	1	Piston	2.54 mm	0.1 in	Gold	Copper Alloy	30
Mill-Max Manufacturing Corp. 812-22-026-30-004101	Surface Mount	0.51 µm	20 µin	1	Piston	2.54 mm	0.1 in	Gold	Copper Alloy	26
Mill-Max Manufacturing Corp. 812-22-013-30-000101	Surface Mount	0.51 µm	20 µin	1	Piston	2.54 mm	0.1 in	Gold	Copper Alloy	13
Mill-Max Manufacturing Corp. 812-22-044-30-000101	Surface Mount	0.51 µm	20 µin	1	Piston	2.54 mm	0.1 in	Gold	Copper Alloy	44
Mill-Max Manufacturing Corp. 812-22-030-30-000101	Surface Mount	0.51 µm	20 µin	1	Piston	2.54 mm	0.1 in	Gold	Copper Alloy	30
Mill-Max Manufacturing Corp. 812-22-011-30-004101	Surface Mount	0.51 µm	20 µin	1	Piston	2.54 mm	0.1 in	Gold	Copper Alloy		11
Mill-Max Manufacturing Corp. 812-22-002-30-009191	Surface Mount	0.51 µm	20 µin	1	Piston	2.54 mm	0.1 in	Gold	Copper Alloy
Mill-Max Manufacturing Corp. 812-22-022-30-002101	Surface Mount	0.51 µm	20 µin	1	Piston	2.54 mm	0.1 in	Gold	Copper Alloy	22
Mill-Max Manufacturing Corp. 812-22-027-30-002101	Surface Mount	0.51 µm	20 µin	1	Piston	2.54 mm	0.1 in	Gold	Copper Alloy	27

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

44 Position Spring Piston Connector Surface Mount
