ZHD-SCE-5K-3.2-50-S1-4

Active

TE Connectivity Raychem Cable Protection

LABEL HEAT SHRINKABLE YELLOW

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ZHD-SCE-5K-3.2-50-S1-4

Active

TE Connectivity Raychem Cable Protection

LABEL HEAT SHRINKABLE YELLOW

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ZHD-SCE-5K-3.2-50-S1-4

Color	Yellow
For Use With/Related Products	T312Mi, T200, T6112DS, TE3112, TE3124, T312M
Label Size [x]	0.125 in
Label Size [x]	3.2 mm
Label Size [y]	1.97 "
Label Size [y]	50 mm
Label Type	Heat Shrinkable
Material	Diesel Resistant, Polyolefin (PO), Halogen Free, Irradiated, Flame Retardant
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C

ZHD-SCE Series

Part	Material	Color	Label Type	Label Size [y]	Label Size [x]	For Use With/Related Products	Operating Temperature [Min]	Operating Temperature [Max]	Label Size [y]	Label Size [x]	Label Size [y]
TE Connectivity Raychem Cable Protection ZHD-SCE-1K-25.4-50-S1-4	Diesel Resistant Flame Retardant Halogen Free Irradiated Polyolefin (PO)	Yellow	Heat Shrinkable	1.97 in 50 mm	25.4 mm	T200 T312M T312Mi T6112DS TE3112 TE3124	-55 °C	125 °C
TE Connectivity Raychem Cable Protection ZHD-SCE-1K-2.4-50-S1-4	Diesel Resistant Flame Retardant Halogen Free Irradiated Polyolefin (PO)	Yellow	Heat Shrinkable		2.4 mm	T200 T312M T312Mi T6112DS TE3112 TE3124	-55 °C	125 °C	50 mm	0.09 in	1.97 "
TE Connectivity Raychem Cable Protection ZHD-SCE-1K-12.7-50-S1-9	Diesel Resistant Flame Retardant Halogen Free Irradiated Polyolefin (PO)	White	Heat Shrinkable		12.7 mm	T200 T312M T312Mi T6112DS TE3112 TE3124	-55 °C	125 °C	50 mm	0.5 "	1.97 "
TE Connectivity Raychem Cable Protection ZHD-SCE-5K-3.2-50-S1-4	Diesel Resistant Flame Retardant Halogen Free Irradiated Polyolefin (PO)	Yellow	Heat Shrinkable		3.2 mm	T200 T312M T312Mi T6112DS TE3112 TE3124	-55 °C	125 °C	50 mm	0.125 in	1.97 "
TE Connectivity Raychem Cable Protection ZHD-SCE-9.5-50-S1-4	Diesel Resistant Flame Retardant Halogen Free Irradiated Polyolefin (PO)	Yellow	Heat Shrinkable		9.5 mm	T200 T312M T312Mi T6112DS TE3112 TE3124	-55 °C	125 °C	50 mm	0.38 "	1.97 "
TE Connectivity Raychem Cable Protection ZHD-SCE-25.4-50-9	Diesel Resistant Flame Retardant Halogen Free Irradiated Polyolefin (PO)	White	Heat Shrinkable	1.97 in 50 mm	25.4 mm	T200 T312M T312Mi T6112DS TE3112 TE3124	-55 °C	125 °C
TE Connectivity Raychem Cable Protection ZHD-SCE-5K-3.2-50-9	Diesel Resistant Flame Retardant Halogen Free Irradiated Polyolefin (PO)	White	Heat Shrinkable		3.2 mm	T200 T312M T312Mi T6112DS TE3112 TE3124	-55 °C	125 °C	50 mm	0.125 in	1.97 "
TE Connectivity Raychem Cable Protection ZHD-SCE-19.0-50-4	Diesel Resistant Flame Retardant Halogen Free Irradiated Polyolefin (PO)	Yellow	Heat Shrinkable		19 mm	T200 T312M T312Mi T6112DS TE3112 TE3124	-55 °C	125 °C	50 mm	0.75 "	1.97 "
TE Connectivity Raychem Cable Protection ZHD-SCE-6.4-50-S1-9	Diesel Resistant Flame Retardant Halogen Free Irradiated Polyolefin (PO)	White	Heat Shrinkable		6.4 mm	T200 T312M T312Mi T6112DS TE3112 TE3124	-55 °C	125 °C	50 mm	0.25 "	1.97 "
TE Connectivity Raychem Cable Protection ZHD-SCE-2.5K-4.8-50-S1-4	Diesel Resistant Flame Retardant Halogen Free Irradiated Polyolefin (PO)	Yellow	Heat Shrinkable		4.8 mm	T200 T312M T312Mi T6112DS TE3112 TE3124	-55 °C	125 °C	50 mm	0.19 in	1.97 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 1.53
		10	$ 1.09
		25	$ 1.00
		50	$ 0.96
		100	$ 0.87
		250	$ 0.83
		500	$ 0.79
		1000	$ 0.74
		5000	$ 0.65

Description

General part information

ZHD-SCE Series

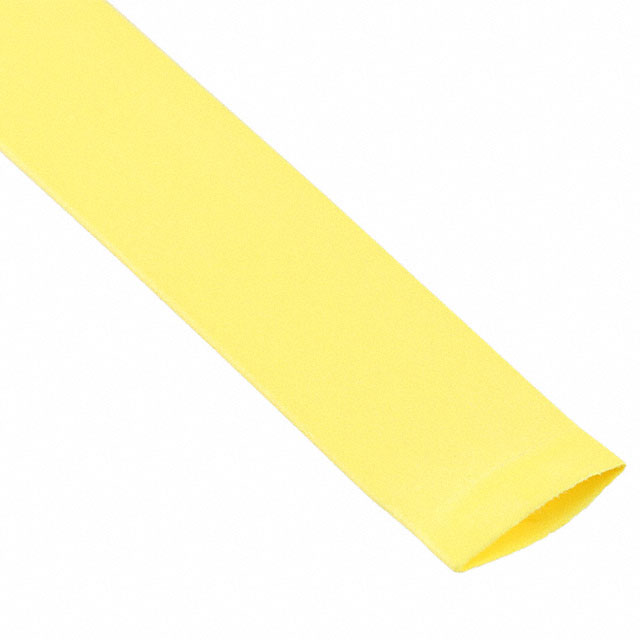

Yellow Heat Shrinkable Label 0.125" x 1.97" (3.2mm x 50.0mm)

Documents

Technical documentation and resources
