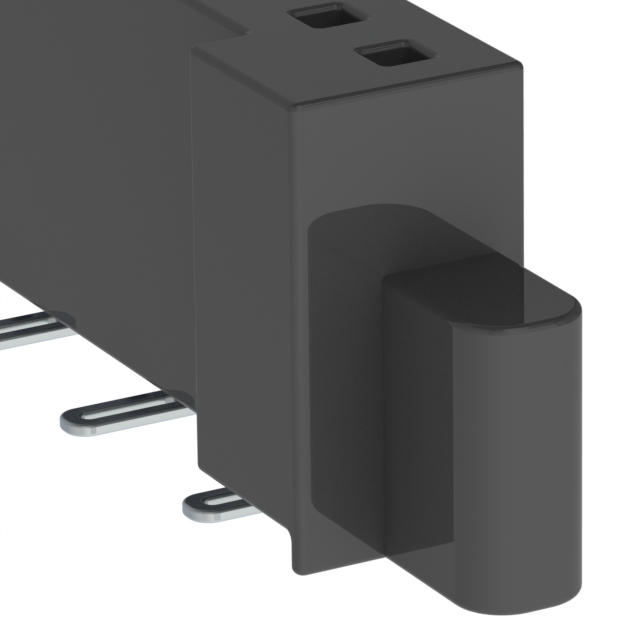

SFM-117-T2-L-S

Active

Samtec Inc.

CONN RCPT 17POS 0.05 GOLD SMD

Deep-Dive with AI

Search across all available documentation for this part.

SFM-117-T2-L-S

Active

Samtec Inc.

CONN RCPT 17POS 0.05 GOLD SMD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SFM-117-T2-L-S

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Material	Beryllium Copper
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	3.2 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.185 in
Insulation Height	4.7 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Mated Stacking Heights	11.76 mm, 6.3 mm, 11.61 mm, 8.08 mm, 6.15 mm, 7.92 mm, 9.86 mm, 9.7 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	250 VAC

SFM-117 Series

Part	Voltage Rating	Contact Material	Material Flammability Rating	Contact Finish - Post	Row Spacing - Mating	Row Spacing - Mating	Features	Insulation Height	Insulation Height	Contact Finish - Mating	Number of Positions	Insulation Material	Style	Contact Type	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Fastening Type	Number of Rows	Pitch - Mating	Pitch - Mating	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Mated Stacking Heights	Connector Type	Current Rating (Amps)	Contact Shape	Contact Length - Post [x]	Contact Length - Post [x]	Contact Length - Post
Samtec Inc. SFM-117-L2-S-D-A	250 VAC	Beryllium Copper	UL94 V-0	Tin	0.05 in	1.27 mm	Board Guide	0.185 in	4.7 mm	Gold	34	Liquid Crystal Polymer (LCP)	Board to Board Cable	Female Socket	Solder	30 Áin	0.76 Ám	Black	Push-Pull	2	0.05 in	1.27 mm	Surface Mount	-55 °C	125 °C	All	6.15 mm 6.3 mm 7.92 mm 8.08 mm 9.7 mm 9.86 mm 11.61 mm 11.76 mm	Receptacle	3.2 A	Square
Samtec Inc. SFM-117-T1-S-D-A	250 VAC	Beryllium Copper	UL94 V-0	Tin	0.05 in	1.27 mm	Board Guide	0.18 "	4.57 mm	Gold	34	Liquid Crystal Polymer (LCP)	Board to Board Cable	Female Socket	Solder	30 Áin	0.76 Ám	Black	Push-Pull	2	0.05 in	1.27 mm	Through Hole	-55 °C	125 °C	All	6.02 mm 6.17 mm 7.8 mm 7.95 mm 9.58 mm 9.73 mm 11.48 mm 11.63 mm	Receptacle	3.2 A	Square	0.12 in	3.05 mm
Samtec Inc. SFM-117-L2-S-D-LC	250 VAC	Beryllium Copper	UL94 V-0	Tin	0.05 in	1.27 mm		0.185 in	4.7 mm	Gold	34	Liquid Crystal Polymer (LCP)	Board to Board Cable	Female Socket	Solder	30 Áin	0.76 Ám	Black	Push-Pull	2	0.05 in	1.27 mm	Surface Mount	-55 °C	125 °C	All	6.15 mm 6.3 mm 7.92 mm 8.08 mm 9.7 mm 9.86 mm 11.61 mm 11.76 mm	Receptacle	3.2 A	Square
Samtec Inc. SFM-117-T2-L-S	250 VAC	Beryllium Copper	UL94 V-0	Tin				0.185 in	4.7 mm	Gold		Liquid Crystal Polymer (LCP)	Board to Board Cable	Female Socket	Solder	10 çin	0.25 çm	Black	Push-Pull	1	0.05 in	1.27 mm	Surface Mount	-55 °C	125 °C	All	6.15 mm 6.3 mm 7.92 mm 8.08 mm 9.7 mm 9.86 mm 11.61 mm 11.76 mm	Receptacle	3.2 A	Square
Samtec Inc. SFM-117-T2-L-D-K-TR	250 VAC	Beryllium Copper	UL94 V-0	Tin	0.05 in	1.27 mm	Pick and Place	0.185 in	4.7 mm	Gold	34	Liquid Crystal Polymer (LCP)	Board to Board Cable	Female Socket	Solder	10 çin	0.25 çm	Black	Push-Pull	2	0.05 in	1.27 mm	Surface Mount	-55 °C	125 °C	All	6.15 mm 6.3 mm 7.92 mm 8.08 mm 9.7 mm 9.86 mm 11.61 mm 11.76 mm	Receptacle	3.2 A	Square
Samtec Inc. SFM-117-02-S-D-LC	250 VAC	Beryllium Copper	UL94 V-0	Tin	0.05 in	1.27 mm		0.185 in	4.7 mm	Gold	34	Liquid Crystal Polymer (LCP)	Board to Board Cable	Female Socket	Solder	30 Áin	0.76 Ám	Black	Push-Pull	2	0.05 in	1.27 mm	Surface Mount	-55 °C	125 °C	All	6.15 mm 6.3 mm 7.92 mm 8.08 mm 9.7 mm 9.86 mm 11.61 mm 11.76 mm	Receptacle	3.2 A	Square
Samtec Inc. SFM-117-T2-S-D	250 VAC	Beryllium Copper	UL94 V-0	Tin	0.05 in	1.27 mm		0.185 in	4.7 mm	Gold	34	Liquid Crystal Polymer (LCP)	Board to Board Cable	Female Socket	Solder	30 Áin	0.76 Ám	Black	Push-Pull	2	0.05 in	1.27 mm	Surface Mount	-55 °C	125 °C	All	6.15 mm 6.3 mm 7.92 mm 8.08 mm 9.7 mm 9.86 mm 11.61 mm 11.76 mm	Receptacle	3.2 A	Square
Samtec Inc. SFM-117-L2-S-D-A-K	250 VAC	Beryllium Copper	UL94 V-0	Tin	0.05 in	1.27 mm	Board Guide Pick and Place	0.185 in	4.7 mm	Gold	34	Liquid Crystal Polymer (LCP)	Board to Board Cable	Female Socket	Solder	30 Áin	0.76 Ám	Black	Push-Pull	2	0.05 in	1.27 mm	Surface Mount	-55 °C	125 °C	All	6.15 mm 6.3 mm 7.92 mm 8.08 mm 9.7 mm 9.86 mm 11.61 mm 11.76 mm	Receptacle	3.2 A	Square
Samtec Inc. SFM-117-03-S-D-A	250 VAC	Beryllium Copper	UL94 V-0	Tin	0.05 in	1.27 mm	Board Guide	0.18 "	4.57 mm	Gold	34	Liquid Crystal Polymer (LCP)	Board to Board Cable	Female Socket	Solder	30 Áin	0.76 Ám	Black	Push-Pull	2	0.05 in	1.27 mm	Through Hole	-55 °C	125 °C	All	6.02 mm 6.17 mm 7.8 mm 7.95 mm 9.58 mm 9.73 mm 11.48 mm 11.63 mm	Receptacle	3.2 A	Square	0.075 in		1.91 mm
Samtec Inc. SFM-117-T1-F-D-A	250 VAC	Beryllium Copper	UL94 V-0	Tin	0.05 in	1.27 mm	Board Guide	0.18 "	4.57 mm	Gold	34	Liquid Crystal Polymer (LCP)	Board to Board Cable	Female Socket	Solder	3 µin	0.076 µm	Black	Push-Pull	2	0.05 in	1.27 mm	Through Hole	-55 °C	125 °C	All	6.02 mm 6.17 mm 7.8 mm 7.95 mm 9.58 mm 9.73 mm 11.48 mm 11.63 mm	Receptacle	3.2 A	Square	0.12 in	3.05 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 3.25

Description

General part information

SFM-117 Series

17 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold
