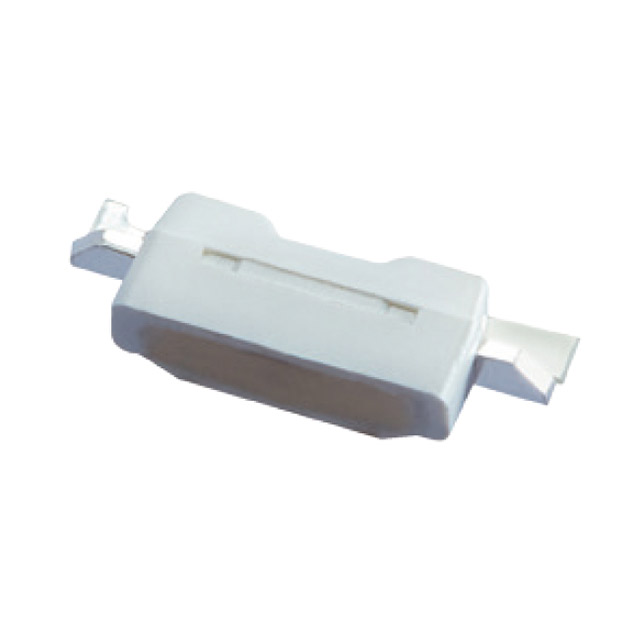

XZM2FW89S-1
ActiveSunLED
LED WHITE CLEAR 2SMD R/A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XZM2FW89S-1
ActiveSunLED
LED WHITE CLEAR 2SMD R/A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XZM2FW89S-1 |
|---|---|
| Color | White |
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 0.8 mm |
| Lens Color | Colorless |
| Lens Size [x] | 2.2 mm |
| Lens Size [y] | 0.56 mm |
| Lens Style | Rectangle with Flat Top |
| Lens Transparency | Clear |
| Millicandela Rating | 1690 mcd |
| Mounting Type | Surface Mount, Right Angle |
| Package / Case | 2-SMD, J-Lead |
| Supplier Device Package | 2-SMD |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
XZM2FW89 Series
White LED Indication - Discrete 3.3V 2-SMD, J-Lead
