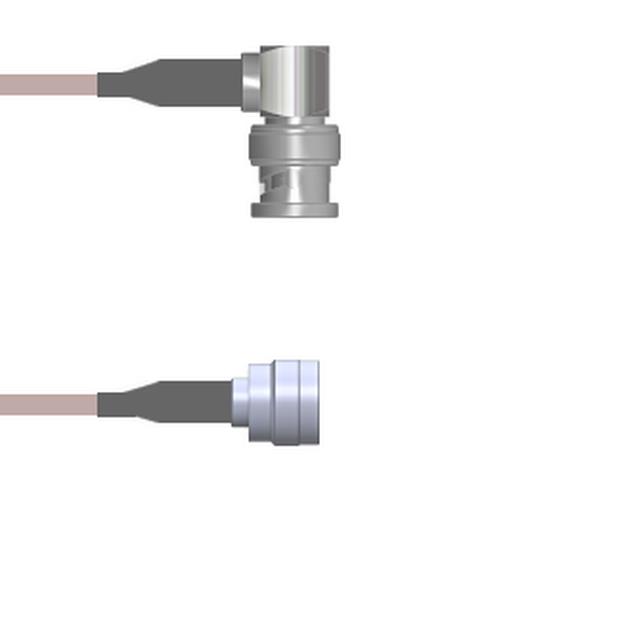

Q-0F056000H060i
ActiveAmphenol Custom Cable
COAX CABLE BNC TO TNC 5'
Deep-Dive with AI
Search across all available documentation for this part.
Q-0F056000H060i
ActiveAmphenol Custom Cable
COAX CABLE BNC TO TNC 5'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q-0F056000H060i |
|---|---|
| 1st Connector | BNC Plug, Right Angle |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | TNC Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Type | RG-142 |
| Color | Copper |
| Features | Shielded |
| Frequency - Max [Max] | 4 GHz |
| Length | 5 ft |
| Length | 1.5 m |
| Length | 5 ' |
| Overall Impedance | 50 Ohms |
| Style | BNC to TNC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 120.18 | |
| 25 | $ 117.81 | |||
| 50 | $ 115.45 | |||
| 100 | $ 113.09 | |||
| 250 | $ 110.72 | |||
Description
General part information
Q-0F0560 Series
Cable Assembly Coaxial BNC to TNC RG-142 60.0" (1.5m) 5.0'
Documents
Technical documentation and resources
No documents available
