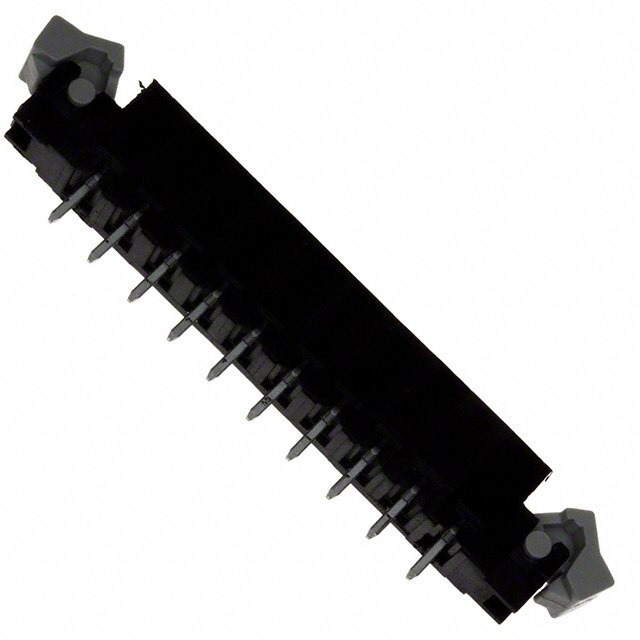

ELFH10250J

Active

AMPHENOL PCD

TERM BLOCK HDR 10POS VERT 5.08MM

Search across all available documentation for this part.

Active

AMPHENOL PCD

TERM BLOCK HDR 10POS VERT 5.08MM

Technical Specifications

Parameters and characteristics for this part

Specification	ELFH10250J

Color	Black
Contact Material	Copper Alloy
Contact Mating Finish	Tin-Lead
Contact Tail Length	3.94 mm
Contact Tail Length	0.155 in
Features	Ejectors
Header Orientation	Vertical
Housing Material	Polybutylene Terephthalate (PBT)
Insulation Height	0.5 in
Insulation Height	12.7 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Levels	1
Number of Positions	10
Operating Temperature	105 C
Pitch [x]	0.2 in
Pitch [x]	5.08 mm
Positions Per Level	10
Termination Style	Solder
Type	Header, Male Pins, Shrouded (4 Side)
Voltage - UL	300 V

Part	Contact Tail Length	Contact Tail Length	Color	Contact Material	Housing Material	Positions Per Level	Header Orientation	Pitch [x]	Pitch [x]	Material Flammability Rating	Contact Mating Finish	Mounting Type	Type	Number of Levels	Voltage - UL	Operating Temperature	Features	Termination Style	Insulation Height	Insulation Height	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height [z]
AMPHENOL PCD ELFH10250J	3.94 mm	0.155 in	Black	Copper Alloy	Polybutylene Terephthalate (PBT)	10	Vertical	0.2 in	5.08 mm	UL94 V-0	Tin-Lead	Through Hole	Header Male Pins Shrouded (4 Side)	1	300 V	105 C	Ejectors	Solder	0.5 in	12.7 mm	10
AMPHENOL PCD ELFH10210			Black	Brass	Polybutylene Terephthalate (PBT)	10	90° Right Angle	0.2 in	5.08 mm	UL94 V-0	Tin	Through Hole	Header Male Pins Shrouded (4 Side)	1	300 V			Solder	0.319 in	8.1 mm	10	-40 °C	105 ░C
AMPHENOL PCD ELFH10230E
AMPHENOL PCD ELFH10210E
AMPHENOL PCD ELFH10290	3.94 mm	0.155 in	Black	Brass	Polyamide (PA46) Nylon 4/6	10	Vertical	0.2 in	5.08 mm	UL94 V-0	Tin	Through Hole	Header Male Pins Shrouded (2 Side)	1	300 V			Solder		12.07 mm	10	-40 °C	105 ░C	0.475 in
AMPHENOL PCD ELFH10240	3.94 mm	0.155 in	Black	Brass	Polyamide (PA46) Nylon 4/6	10	90° Right Angle	0.2 in	5.08 mm	UL94 V-0	Tin	Through Hole	Header Male Pins Shrouded (2 Side)	1	300 V			Solder	0.319 in	8.1 mm	10	-40 °C	105 ░C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) Vertical Through Hole
