EN2C4F22G3

Active

Switchcraft Inc.

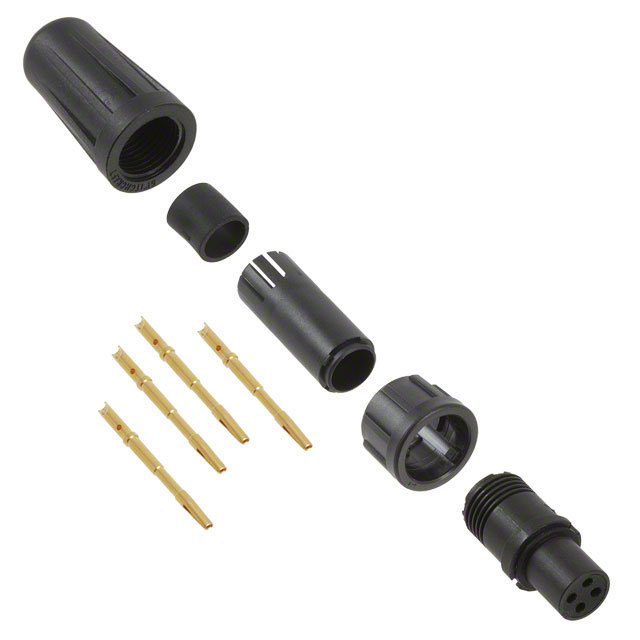

CONN PLUG FMALE 4POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EN2C4F22G3

Active

Switchcraft Inc.

CONN PLUG FMALE 4POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EN2C4F22G3	EN2C4F Series

Applications	Marine, Communication Systems, Medical, Industrial	Marine, Communication Systems, Medical, Industrial
Backshell Material, Plating	Thermoplastic	Thermoplastic
Cable Opening	-	2.54 - 3.56 mm
Cable Opening	-	0.1 - 0.14 in
Cable Opening	-	4.57 mm
Cable Opening	-	3.56 mm
Cable Opening	-	0.14 in
Cable Opening	-	0.18 in
Cable Opening [Max] [custom]	0.22 in	0.22 in
Cable Opening [Max] [custom]	5.59 mm	5.59 mm
Cable Opening [Min] [custom]	0.18 in	0.18 in
Cable Opening [Min] [custom]	4.57 mm	4.57 mm
Color	Black	Black
Connector Type	Female Sockets, Plug	Female Sockets, Plug
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	1.5 A	1.5 A
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Coupling Nut, Backshell	Coupling Nut, Backshell, Winged
Ingress Protection	IP68, IP66, IP67	IP68, IP66, IP67
Insert Material	Elastomer	Elastomer
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	4	4
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	Crimp, Solder Cup	Crimp, Solder Cup
Voltage Rating	125 VAC	125 VAC

EN2C4F Series

CONN PLUG FMALE 4POS GOLD CRIMP

Part	Voltage Rating	Contact Finish - Mating	Fastening Type	Termination	Current Rating (Amps)	Cable Opening [custom]	Cable Opening [custom]	Shielding	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Features	Backshell Material, Plating	Primary Material	Mounting Type	Orientation	Material Flammability Rating	Contact Material	Applications	Color	Insert Material	Number of Positions	Connector Type	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]
Switchcraft Inc. EN2C4F22G1	125 VAC	Gold	Bayonet Lock	Crimp, Solder Cup	1.5 A	2.54 mm, 3.56 mm	0.1 in, 0.14 in	Unshielded	IP66, IP67, IP68	85 °C	-40 °C	Backshell, Coupling Nut	Thermoplastic	Plastic	Free Hanging (In-Line)	Keyed	UL94 V-0	Copper Alloy	Communication Systems, Industrial, Marine, Medical	Black	Elastomer	4	Female Sockets, Plug
Switchcraft Inc. EN2C4F22G2W	125 VAC	Gold	Bayonet Lock	Crimp, Solder Cup	1.5 A			Unshielded	IP66, IP67, IP68	85 °C	-40 °C	Backshell, Coupling Nut, Winged	Thermoplastic	Plastic	Free Hanging (In-Line)	Keyed	UL94 V-0	Copper Alloy	Communication Systems, Industrial, Marine, Medical	Black	Elastomer	4	Female Sockets, Plug	4.57 mm	3.56 mm	0.14 in	0.18 in
Switchcraft Inc. EN2C4F22G3W	125 VAC	Gold	Bayonet Lock	Crimp, Solder Cup	1.5 A			Unshielded	IP66, IP67, IP68	85 °C	-40 °C	Backshell, Coupling Nut, Winged	Thermoplastic	Plastic	Free Hanging (In-Line)	Keyed	UL94 V-0	Copper Alloy	Communication Systems, Industrial, Marine, Medical	Black	Elastomer	4	Female Sockets, Plug					0.18 in	0.22 in	4.57 mm	5.59 mm
Switchcraft Inc. EN2C4F22G3	125 VAC	Gold	Bayonet Lock	Crimp, Solder Cup	1.5 A			Unshielded	IP66, IP67, IP68	85 °C	-40 °C	Backshell, Coupling Nut	Thermoplastic	Plastic	Free Hanging (In-Line)	Keyed	UL94 V-0	Copper Alloy	Communication Systems, Industrial, Marine, Medical	Black	Elastomer	4	Female Sockets, Plug					0.18 in	0.22 in	4.57 mm	5.59 mm
Switchcraft Inc. EN2C4F22DC	125 VAC	Gold	Bayonet Lock	Crimp, Solder Cup	1.5 A			Unshielded	IP66, IP67, IP68	85 °C	-40 °C	Backshell, Coupling Nut	Thermoplastic	Plastic	Free Hanging (In-Line)	Keyed	UL94 V-0	Copper Alloy	Communication Systems, Industrial, Marine, Medical	Black	Elastomer	4	Female Sockets, Plug
Switchcraft Inc. EN2C4F22G1W	125 VAC	Gold	Bayonet Lock	Crimp, Solder Cup	1.5 A	2.54 mm, 3.56 mm	0.1 in, 0.14 in	Unshielded	IP66, IP67, IP68	85 °C	-40 °C	Backshell, Coupling Nut, Winged	Thermoplastic	Plastic	Free Hanging (In-Line)	Keyed	UL94 V-0	Copper Alloy	Communication Systems, Industrial, Marine, Medical	Black	Elastomer	4	Female Sockets, Plug

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.07
		10	$ 5.46
		25	$ 5.15
		50	$ 5.01
		100	$ 4.88
		300	$ 4.65

Description

General part information

EN2C4F Series

4 Position Circular Connector Plug, Female Sockets Crimp or Solder Cup

Documents

Technical documentation and resources
