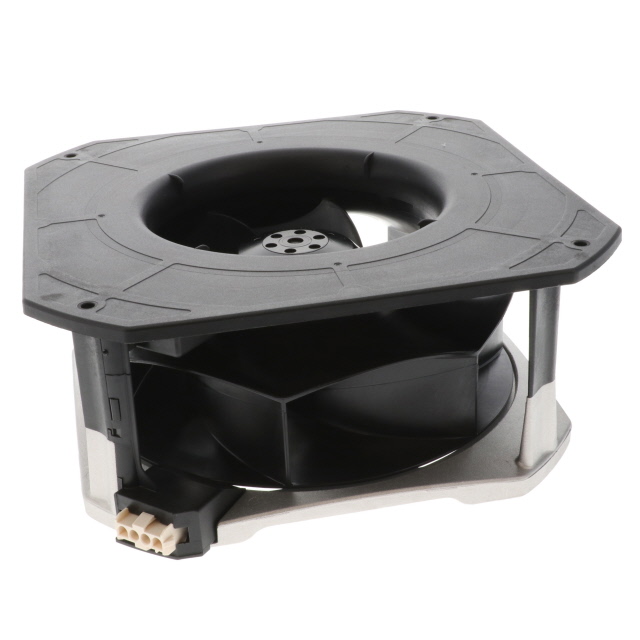

K2E225-RA92-09

Active

ebm-papst Inc.

MOTORIZED IMPELLER

Search across all available documentation for this part.

Active

ebm-papst Inc.

MOTORIZED IMPELLER

Technical Specifications

Parameters and characteristics for this part

Specification	K2E225-RA92-09

Air Flow	11.63 mł/min
Air Flow	415.2 CFM
Approval Agency	EAC, CCC, UL, CSA, CE
Bearing Type	Ball
Current Rating (Amps)	0.95 A
Fan Type	Tubeaxial
Features	Capacitor, Thermal Overload Protector (TOP)
Ingress Protection	IP44
Material - Blade	Polyamide (PA), Nylon
Material - Frame	Nylon, Polyamide (PA)
Operating Temperature [Max]	65 °C
Operating Temperature [Max]	65 °C
Operating Temperature [Min]	-25 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	225 W
RPM	2600 RPM
Size / Dimension [x]	300 mm
Size / Dimension [y]	300 mm
Termination	4 Position Rectangular Connector
Voltage - Rated	230 VAC
Width [y]	112 mm

Part	Material - Frame	Bearing Type	Air Flow	Air Flow	Fan Type	RPM	Size / Dimension [x]	Size / Dimension [y]	Current Rating (Amps)	Material - Blade	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Width [y]	Voltage - Rated	Approval Agency	Features	Termination	Ingress Protection	Power (Watts)
ebm-papst Inc. K2E225-RA92-09	Nylon Polyamide (PA)	Ball	11.63 mł/min	415.2 CFM	Tubeaxial	2600 RPM	300 mm	300 mm	0.95 A	Nylon Polyamide (PA)	65 °C	-25 °C	65 °C	-25 °C	112 mm	230 VAC	CCC CE CSA EAC UL	Capacitor Thermal Overload Protector (TOP)	4 Position Rectangular Connector	IP44	225 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fan Tubeaxial 230VAC Square - 300mm L x 300mm H Ball 415.2 CFM (11.63mł/min) 4 Position Rectangular Connector
