1052928-1

Active

TE Connectivity AMP Connectors

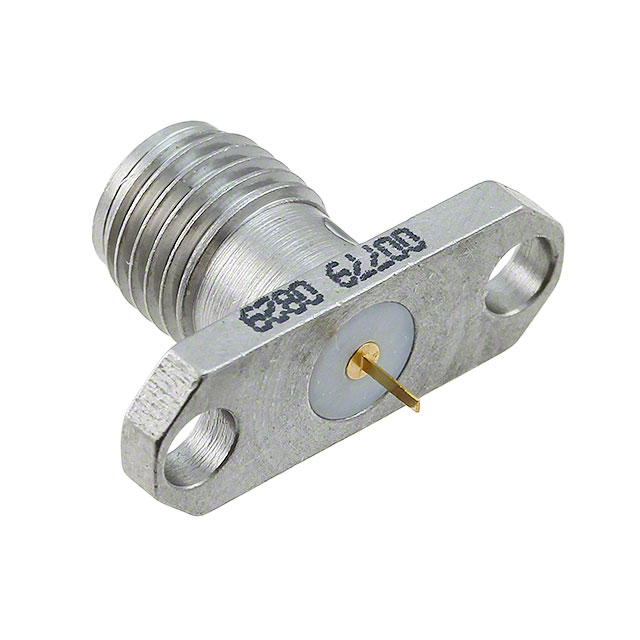

CONN SMA RCPT STR 50 OHM SOLDER

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN SMA RCPT STR 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	1052928-1

Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Receptacle, Female Socket
Contact Termination	Solder Tab
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	335 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	400	$ 24.42

CONN SMA RCPT STR 50 OHM SOLDER

Part	Body Material	Voltage Rating	Impedance	Connector Style	Connector Type	Mounting Feature	Operating Temperature [Min]	Operating Temperature [Max]	Mating Cycles	Center Contact Material	Housing Color	Number of Ports	Shield Termination	Frequency - Max [Max]	Dielectric Material	Center Contact Plating	Contact Termination
TE Connectivity AMP Connectors 1052928-1	Stainless Steel	335 V	50 Ohms	SMA	Female Socket, Receptacle	Flange	-65 ░C	105 ░C	500	Beryllium Copper	Silver	1	Solder	18 GHz	Polytetrafluoroethylene (PTFE)	Gold	Solder Tab

General part information

SMA Connector Receptacle, Female Socket 50 Ohms Panel Mount Solder Tab
