ECA-2DHG100

Active

Panasonic Industrial Automation Sales

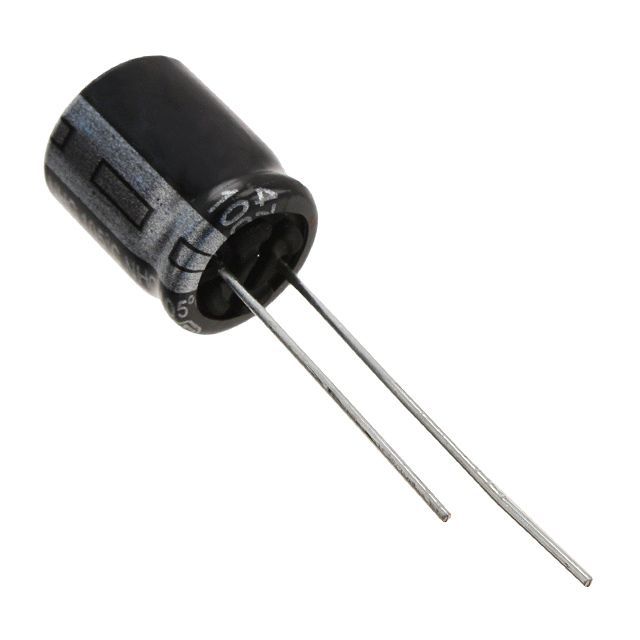

CAP ALUM 10UF 20% 200V RADIAL TH

Deep-Dive with AI

Search across all available documentation for this part.

ECA-2DHG100

Active

Panasonic Industrial Automation Sales

CAP ALUM 10UF 20% 200V RADIAL TH

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ECA-2DHG100

Applications	General Purpose
Capacitance	10 µF
Height - Seated (Max) [Max] [z]	17 mm
Height - Seated (Max) [Max] [z]	0.669 in
Lead Spacing	5 mm
Lead Spacing	0.197 in
Lifetime @ Temp.	2000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-25 °C
Package / Case	Radial, Can
Polarization	Polar
Ripple Current @ High Frequency	120 mA
Ripple Current @ Low Frequency	80 mA
Size / Dimension [diameter]	10 mm
Size / Dimension [diameter]	0.394 in
Tolerance	20 %
Voltage - Rated	200 V

ECA-2DH Series

Part	Lead Spacing	Lead Spacing	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Capacitance	Ripple Current @ High Frequency	Applications	Voltage - Rated	Polarization	Ripple Current @ Low Frequency	Size / Dimension [diameter]	Size / Dimension [diameter]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type	Lifetime @ Temp.	Tolerance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Panasonic Industrial Automation Sales ECA-2DHG2R2B	5 mm	0.197 in	Radial Can	-25 °C	105 ░C	2.2 µF	37.5 mA	General Purpose	200 V	Polar	25 mA	0.248 in	6.3 mm	0.48 "	12.2 mm	Through Hole	2000 Hrs	20 %
Panasonic Industrial Automation Sales ECA-2DHG100	5 mm	0.197 in	Radial Can	-25 °C	105 ░C	10 µF	120 mA	General Purpose	200 V	Polar	80 mA	0.394 in	10 mm	0.669 in	17 mm	Through Hole	2000 Hrs	20 %
Panasonic Industrial Automation Sales ECA-2DHG470	5 mm	0.197 in	Radial Can	-25 °C	105 ░C	47 µF	330 mA	General Purpose	200 V	Polar	220 mA	0.492 in	12.5 mm	0.866 in	22 mm	Through Hole	2000 Hrs	20 %
Panasonic Industrial Automation Sales ECA-2DHG2R2I	2.5 mm	0.098 in	Radial Can	-25 °C	105 ░C	2.2 µF	37.5 mA	General Purpose	200 V	Polar	25 mA	0.248 in	6.3 mm	0.48 "	12.2 mm	Through Hole	2000 Hrs	20 %
Panasonic Industrial Automation Sales ECA-2DHG330
Panasonic Industrial Automation Sales ECA-2DHG3R3I	2.5 mm	0.098 in	Radial Can	-25 °C	105 ░C	3.3 µF	54 mA	General Purpose	200 V	Polar	36 mA	0.248 in	6.3 mm	0.48 "	12.2 mm	Through Hole	2000 Hrs	20 %
Panasonic Industrial Automation Sales ECA-2DHG3R3	2.5 mm	0.098 in	Radial Can	-25 °C	105 ░C	3.3 µF	54 mA	General Purpose	200 V	Polar	36 mA	0.248 in	6.3 mm	0.48 "	12.2 mm	Through Hole	2000 Hrs	20 %
Panasonic Industrial Automation Sales ECA-2DHG3R3B	5 mm	0.197 in	Radial Can	-25 °C	105 ░C	3.3 µF	54 mA	General Purpose	200 V	Polar	36 mA	0.248 in	6.3 mm	0.48 "	12.2 mm	Through Hole	2000 Hrs	20 %
Panasonic Industrial Automation Sales ECA-2DHG4R7B	5 mm	0.197 in	Radial Can	-25 °C	105 ░C	4.7 µF	75 mA	General Purpose	200 V	Polar	50 mA	0.315 "	8 mm			Through Hole	2000 Hrs	20 %	0.492 in	12.5 mm
Panasonic Industrial Automation Sales ECA-2DHG010B	5 mm	0.197 in	Radial Can	-25 °C	105 ░C	1 µF	25.5 mA	General Purpose	200 V	Polar	17 mA	0.248 in	6.3 mm	0.48 "	12.2 mm	Through Hole	2000 Hrs	20 %

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.73
		10	$ 0.49
		200	$ 0.32
		1000	$ 0.21
		5000	$ 0.19
		10000	$ 0.18

Description

General part information

ECA-2DH Series

10 µF 200 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C
