JS1-B-5V
ObsoletePanasonic Electric Works
RELAY GEN PURPOSE SPDT 10A 5V
Deep-Dive with AI
Search across all available documentation for this part.

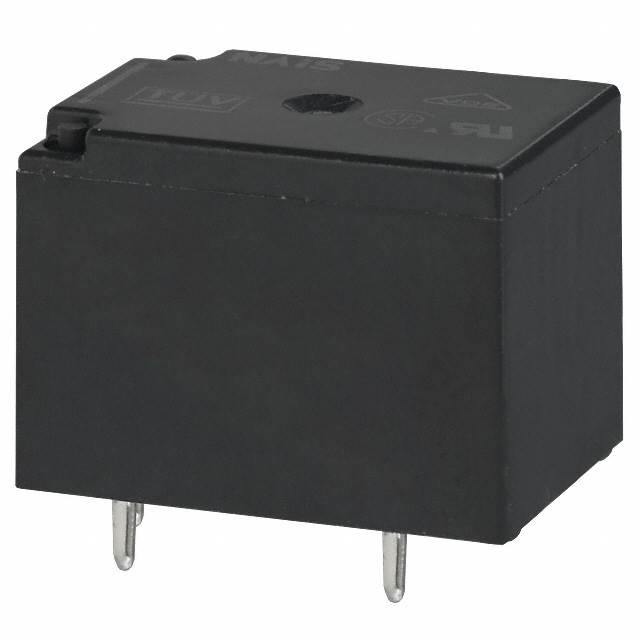

JS1-B-5V
ObsoletePanasonic Electric Works
RELAY GEN PURPOSE SPDT 10A 5V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | JS1-B-5V |
|---|---|
| Approval Agency | TUV, VDE, CSA, UR |
| Coil Current | 72 mA |
| Coil Insulation | Class B |
| Coil Resistance | 69.4 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 5 VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver Alloy |
| Contact Rating (Current) | 10 A |
| Load - Max Switching | 1000 W, 2500 VA |
| Mounting Type | Through Hole |
| Must Operate Voltage | 3.5 VDC |
| Must Release Voltage | 0.5 VDC |
| Operate Time | 10 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 10 ms |
| Seal Rating | Sealed - Fully |
| Switching Voltage | 250 VAC, 100 VDC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
JS1-B-5 Series
General Purpose Relay SPDT (1 Form C) 5VDC Coil Through Hole
