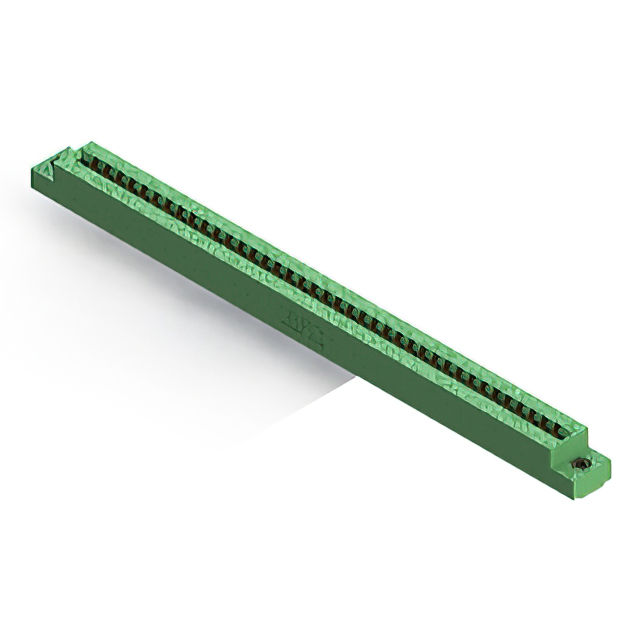

306-039-521-108

Active

EDAC Inc.

CONN EDGE DUAL FMALE 78POS 0.156

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

306-039-521-108

Active

EDAC Inc.

CONN EDGE DUAL FMALE 78POS 0.156

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	306-039-521-108

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Flush Mount, Threaded Insert, 4-40, Top Opening
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole, Panel Mount
Number of Positions	78
Number of Positions/Bay/Row [custom]	39
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder
Termination Rows	1

306-039 Series

Part	Termination	Mounting Type	Contact Finish	Number of Positions	Termination Rows	Contact Material	Color	Flange Feature	Number of Rows	Material - Insulation	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Read Out	Number of Positions/Bay/Row [custom]	Card Type	Operating Temperature [Min]	Operating Temperature [Max]	Pitch [x]	Pitch [x]	Gender	Flange Feature [diameter]	Flange Feature [diameter]	Features
EDAC Inc. 306-039-521-108	Solder	Panel Mount Through Hole	Gold	78	1	Copper Alloy	Green	4-40 Flush Mount Threaded Insert Top Opening	2	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Cantilever	Dual	39	Non Specified - Dual Edge	-40 °C	105 ░C	0.156 in	3.96 mm	Female
EDAC Inc. 306-039-421-112	Solder	Panel Mount Through Hole	Tin	78	1	Copper Alloy	Green	Flush Mount Side Opening Unthreaded	2	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in			Cantilever	Dual	39	Non Specified - Dual Edge	-40 °C	105 ░C	0.156 in	3.96 mm	Female	3.25 mm	0.128 "
EDAC Inc. 306-039-421-101	Solder	Through Hole	Tin	78	1	Copper Alloy	Green		2	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in			Cantilever	Dual	39	Non Specified - Dual Edge	-40 °C	105 ░C	0.156 in	3.96 mm	Female
EDAC Inc. 306-039-421-168	Solder	Panel Mount Through Hole	Tin	78	1	Copper Alloy	Green	4-40 Flush Mount Threaded Insert Top Opening	2	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in			Cantilever	Dual	39	Non Specified - Dual Edge	-40 °C	105 ░C	0.156 in	3.96 mm	Female			Card Guides
EDAC Inc. 306-039-421-102	Solder	Panel Mount Through Hole	Tin	78	1	Copper Alloy	Green	Flush Mount Top Opening Unthreaded	2	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in			Cantilever	Dual	39	Non Specified - Dual Edge	-40 °C	105 ░C	0.156 in	3.96 mm	Female	3.25 mm	0.128 "
EDAC Inc. 306-039-500-168	Solder Eyelet(s)		Gold	78	1	Copper Alloy	Green	4-40 Flush Mount Threaded Insert Top Opening	2	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Cantilever	Dual	39	Non Specified - Dual Edge	-40 °C	105 ░C	0.156 in	3.96 mm	Female			Card Guides
EDAC Inc. 306-039-421-104	Solder	Panel Mount Through Hole	Tin	78	1	Copper Alloy	Green	Flush Mount Top Opening Unthreaded	2	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in			Cantilever	Dual	39	Non Specified - Dual Edge	-40 °C	105 ░C	0.156 in	3.96 mm	Female	3.96 mm	0.156 in
EDAC Inc. 306-039-520-168	Solder	Panel Mount Through Hole	Gold	78	1	Copper Alloy	Green	4-40 Flush Mount Threaded Insert Top Opening	2	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Cantilever	Dual	39	Non Specified - Dual Edge	-40 °C	105 ░C	0.156 in	3.96 mm	Female			Card Guides
EDAC Inc. 306-039-421-108	Solder	Panel Mount Through Hole	Tin	78	1	Copper Alloy	Green	4-40 Flush Mount Threaded Insert Top Opening	2	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in			Cantilever	Dual	39	Non Specified - Dual Edge	-40 °C	105 ░C	0.156 in	3.96 mm	Female
EDAC Inc. 306-039-421-158	Solder	Panel Mount Through Hole	Tin	78	1	Copper Alloy	Green	4-40 Flush Mount Threaded Insert Top Opening	2	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in			Cantilever	Dual	39	Non Specified - Dual Edge	-40 °C	105 ░C	0.156 in	3.96 mm	Female			Card Guides

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 23.06

Description

General part information

306-039 Series

78 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
