282189-2

Active

TE Connectivity Raychem Cable Protection

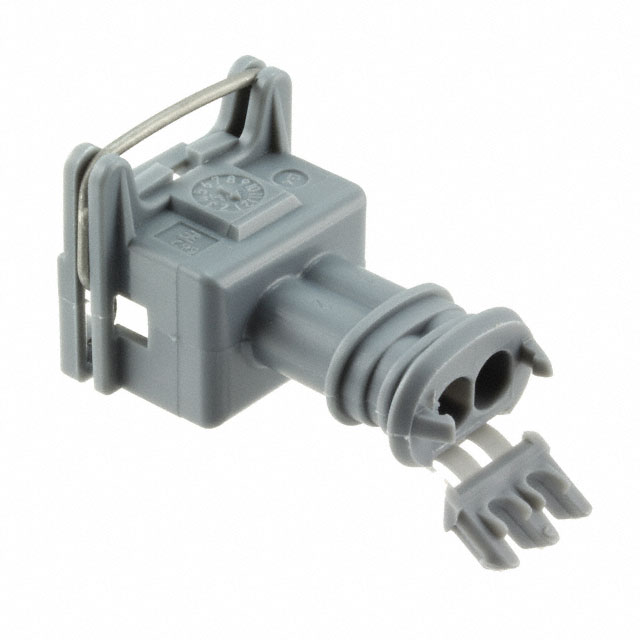

CONN HOUSING RCP 2 POS 5MM CRIMP ST CABLE MOUNT GRAY BAG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

282189-2

Active

TE Connectivity Raychem Cable Protection

CONN HOUSING RCP 2 POS 5MM CRIMP ST CABLE MOUNT GRAY BAG

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	282189-2

Color	Gray
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Features	Splash-Proof
Insulation Material	Polyamide (PA66), Nylon 6/6
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	2
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-30 ░C
Pitch [x]	5 mm
Pitch [x]	0.197 in

Junior Power Timer Series

...

Part	Contact Termination	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Wire Gauge [Min]	Wire Gauge [Max]	Type	Pin or Socket	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Contact Type	Features	Pitch [x]	Pitch [x]	Number of Positions	Note	Number of Rows	Color	Insulation Material	Row Spacing [x]	Row Spacing	Fastening Type	Row Spacing [Max]	Row Spacing [Max]
TE Connectivity Raychem Cable Protection 1-927772-1	Crimp	31.5 µin	0.8 µm	Gold	20 AWG	24 AWG	Power	Socket
TE Connectivity Raychem Cable Protection 927772-3	Crimp	39.4 Áin	1 Ám	Tin	20 AWG	24 AWG	Power	Socket
TE Connectivity Raychem Cable Protection 282189-2	Crimp								Receptacle	125 °C	-30 ░C	Free Hanging (In-Line)	Female Socket	Splash-Proof	5 mm	0.197 in	2	Contacts Not Included	1	Gray	Polyamide (PA66) Nylon 6/6
TE Connectivity Raychem Cable Protection 2-962916-1	Crimp	39.4 Áin	1 Ám	Tin				Tab
TE Connectivity Raychem Cable Protection 1-965640-3	Crimp								Receptacle			Free Hanging (In-Line)	Female Socket		5 mm	0.197 in	6	Contacts Not Included	3	Gray		0.217 in	5.51 mm	Latch Holder
TE Connectivity Raychem Cable Protection 282193-1	Crimp								Receptacle	125 °C	-40 °C	Free Hanging (In-Line)	Female Socket	Splash-Proof	5 mm	0.197 in		Contacts Not Included	1	Black	Polyamide (PA66) Nylon 6/6
TE Connectivity Raychem Cable Protection 1-1703543-2
TE Connectivity Raychem Cable Protection 1-965640-6	Crimp								Receptacle			Free Hanging (In-Line)	Female Socket		5 mm	0.197 in	6	Contacts Not Included	3	Yellow		0.217 in	5.51 mm	Latch Holder
TE Connectivity Raychem Cable Protection 1-1355668-2	Crimp								Receptacle	130 °C	-40 °C	Free Hanging (In-Line)	Female Socket	Sealed	6.1 mm	0.24 in	2	Contacts Not Included	1	Black	Polybutylene Terephthalate (PBT) Glass Filled			Latch Lock
TE Connectivity Raychem Cable Protection 964739-1	Crimp								Plug			Free Hanging (In-Line)	Tab		5 mm	0.197 in	24	Contacts Not Included	2	Black	Polybutylene Terephthalate (PBT) Glass Filled			Latch Lock	0.236 in	6 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.83
		10	$ 0.77
		100	$ 0.67
		600	$ 0.63

Description

General part information

Junior Power Timer Series

2 Rectangular Connectors - Housings Receptacle Gray 0.197" (5.00mm)

Documents

Technical documentation and resources
