Q-0J0480003072i

Active

Amphenol Custom Cable

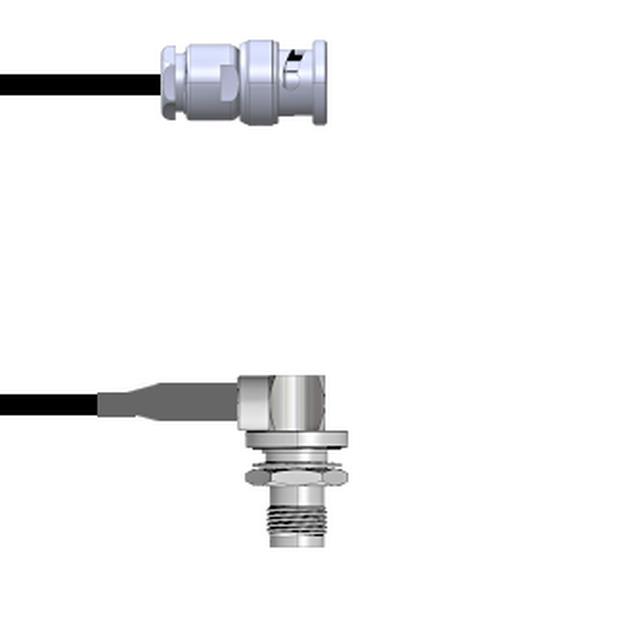

CBL ASSY BNC-TNC PLUG-JACK 6'

Deep-Dive with AI

Search across all available documentation for this part.

Q-0J0480003072i

Active

Amphenol Custom Cable

CBL ASSY BNC-TNC PLUG-JACK 6'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0J0480003072i

1st Connector	BNC Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	TNC Jack, Right Angle
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	6 ft
Length	72 in
Length	1.8 m
Overall Impedance	50 Ohms
Style	BNC to TNC

Q-0J0480 Series

Part	Color	Overall Impedance	Features	1st Connector	Cable Type	Style	2nd Contact Gender	2nd Connector Mounting Feature	1st Contact Gender	Frequency - Max [Max]	2nd Connector	1st Connector Mounting Type	2nd Connector Mounting Type	Length	Length	Length	Length [x]	Length [x]	Length [x]
Amphenol Custom Cable Q-0J0480005002M	Copper	50 Ohms	Shielded	BNC Plug	RG-316	BNC to TNC	Female	Bulkhead - Front Side Nut	Male	4 GHz	TNC Jack Right Angle	Free Hanging (In-Line)	Panel Mount	6.6 ft	78.7 in	2 m
Amphenol Custom Cable Q-0J0480005060i	Copper	50 Ohms	Shielded	BNC Plug	RG-316	BNC to TNC	Female	Bulkhead - Front Side Nut	Male	4 GHz	TNC Jack Right Angle	Free Hanging (In-Line)	Panel Mount	5 ft	5 '	1.5 m
Amphenol Custom Cable Q-0J0480003012i	Black	50 Ohms	Shielded	BNC Plug	RG-174	BNC to TNC	Female	Bulkhead - Front Side Nut	Male	4 GHz	TNC Jack Right Angle	Free Hanging (In-Line)	Panel Mount		12 "	304.8 mm
Amphenol Custom Cable Q-0J0480003072i	Black	50 Ohms	Shielded	BNC Plug	RG-174	BNC to TNC	Female	Bulkhead - Front Side Nut	Male	4 GHz	TNC Jack Right Angle	Free Hanging (In-Line)	Panel Mount	6 ft	72 in	1.8 m
Amphenol Custom Cable Q-0J0480005.25M	Copper	50 Ohms	Shielded	BNC Plug	RG-316	BNC to TNC	Female	Bulkhead - Front Side Nut	Male	4 GHz	TNC Jack Right Angle	Free Hanging (In-Line)	Panel Mount				9.843 "	250 mm
Amphenol Custom Cable Q-0J0480005003M	Copper	50 Ohms	Shielded	BNC Plug	RG-316	BNC to TNC	Female	Bulkhead - Front Side Nut	Male	4 GHz	TNC Jack Right Angle	Free Hanging (In-Line)	Panel Mount	9.8 '	118.1 in	3 m
Amphenol Custom Cable Q-0J0480005003i	Copper	50 Ohms	Shielded	BNC Plug	RG-316	BNC to TNC	Female	Bulkhead - Front Side Nut	Male	4 GHz	TNC Jack Right Angle	Free Hanging (In-Line)	Panel Mount		3 in	76.2 mm
Amphenol Custom Cable Q-0J0480003018i	Black	50 Ohms	Shielded	BNC Plug	RG-174	BNC to TNC	Female	Bulkhead - Front Side Nut	Male	4 GHz	TNC Jack Right Angle	Free Hanging (In-Line)	Panel Mount					457.2 mm	457.2 mm
Amphenol Custom Cable Q-0J0480005006i	Copper	50 Ohms	Shielded	BNC Plug	RG-316	BNC to TNC	Female	Bulkhead - Front Side Nut	Male	4 GHz	TNC Jack Right Angle	Free Hanging (In-Line)	Panel Mount		6 in	152.4 mm
Amphenol Custom Cable Q-0J0480003009i	Black	50 Ohms	Shielded	BNC Plug	RG-174	BNC to TNC	Female	Bulkhead - Front Side Nut	Male	4 GHz	TNC Jack Right Angle	Free Hanging (In-Line)	Panel Mount		9 "	228.6 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 97.23
		25	$ 95.36
		50	$ 93.49
		100	$ 91.63
		250	$ 89.76

Description

General part information

Q-0J0480 Series

Cable Assembly Coaxial BNC to TNC RG-174 72.0" (1.8m) 6.0'

Documents

Technical documentation and resources

No documents available
