662-009-364-055

Active

EDAC Inc.

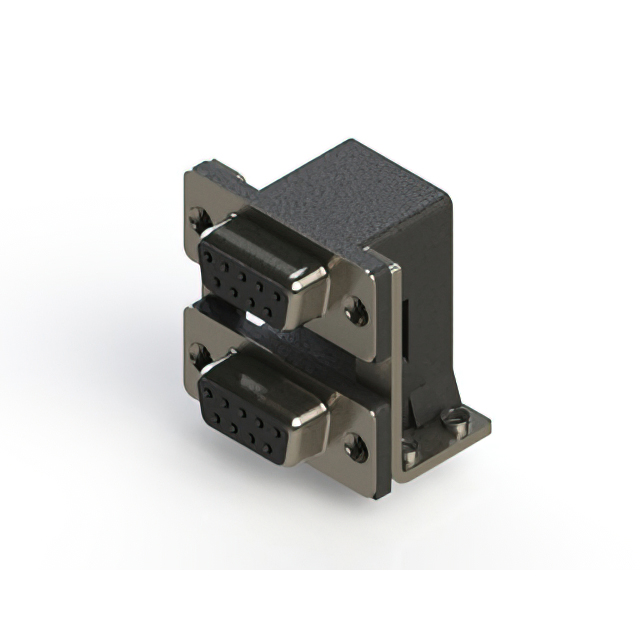

662 SERIES RIGHT ANGLE DUAL D-SU

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

662-009-364-055

Active

EDAC Inc.

662 SERIES RIGHT ANGLE DUAL D-SU

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	662-009-364-055

Backset Spacing	8.08 mm
Backset Spacing	0.318 "
Color	Black
Connector Style	D-Sub - Stacked
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polyester Thermoplastic
Features	Shielded, Mounting Brackets
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	1 (DE, E)
Termination	Solder

662-009 Series

Part	Flange Feature	Current Rating (Amps)	Mounting Type	Number of Rows	Color	Connector Type	Shell Size, Connector Layout	Backset Spacing	Backset Spacing	Material Flammability Rating	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Termination	Contact Type	Features	Connector Style	Dielectric Material	Shell Material, Finish	Contact Finish	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness
EDAC Inc. 662-009-664-007	Housing/Shell (Unthreaded)	3 A	Through Hole Right Angle	2	Black	Receptacle Female Sockets	1 (DE E)	8.08 mm	0.318 "	UL94 V-0	0.76 Ám	30 Áin	9	Solder	Signal	Mounting Brackets Shielded	D-Sub - Stacked	Polyester Thermoplastic	Nickel Plated Steel	Gold	85 °C	-55 °C
EDAC Inc. 662-009-364-004	Housing/Shell (Unthreaded)	3 A	Through Hole Right Angle	2	Black	Receptacle Female Sockets	1 (DE E)	8.08 mm	0.318 "	UL94 V-0	0.38 µm	15 µin	9	Solder	Signal	Mounting Brackets Shielded	D-Sub - Stacked	Polyester Thermoplastic	Nickel Plated Steel	Gold	85 °C	-55 °C
EDAC Inc. 662-009-264-056	Female Screwlock (4-40) Mating Side	3 A	Through Hole Right Angle	2	Black	Receptacle Female Sockets	1 (DE E)	8.08 mm	0.318 "	UL94 V-0			9	Solder	Signal	Mounting Brackets Shielded	D-Sub - Stacked	Polyester Thermoplastic	Nickel Plated Steel	Gold	85 °C	-55 °C	Flash
EDAC Inc. 662-009-364-055	Housing/Shell (4-40)	3 A	Through Hole Right Angle	2	Black	Receptacle Female Sockets	1 (DE E)	8.08 mm	0.318 "	UL94 V-0	0.38 µm	15 µin	9	Solder	Signal	Mounting Brackets Shielded	D-Sub - Stacked	Polyester Thermoplastic	Nickel Plated Steel	Gold	85 °C	-55 °C
EDAC Inc. 662-009-264-001	Housing/Shell (M3)	3 A	Through Hole Right Angle	2	Black	Receptacle Female Sockets	1 (DE E)	8.08 mm	0.318 "	UL94 V-0			9	Solder	Signal	Mounting Brackets Shielded	D-Sub - Stacked	Polyester Thermoplastic	Nickel Plated Steel	Gold	85 °C	-55 °C	Flash
EDAC Inc. 662-009-364-056	Female Screwlock (4-40) Mating Side	3 A	Through Hole Right Angle	2	Black	Receptacle Female Sockets	1 (DE E)	8.08 mm	0.318 "	UL94 V-0	0.38 µm	15 µin	9	Solder	Signal	Mounting Brackets Shielded	D-Sub - Stacked	Polyester Thermoplastic	Nickel Plated Steel	Gold	85 °C	-55 °C
EDAC Inc. 662-009-364-042	Housing/Shell (4-40)	3 A	Through Hole Right Angle	2	Black	Receptacle Female Sockets	1 (DE E)	8.08 mm	0.318 "	UL94 V-0	0.38 µm	15 µin	9	Solder	Signal	Board Lock Mounting Brackets Shielded	D-Sub - Stacked	Polyester Thermoplastic	Nickel Plated Steel	Gold	85 °C	-55 °C
EDAC Inc. 662-009-364-047	Housing/Shell (Unthreaded)	3 A	Through Hole Right Angle	2	Black	Receptacle Female Sockets	1 (DE E)	8.08 mm	0.318 "	UL94 V-0	0.38 µm	15 µin	9	Solder	Signal	Board Lock Mounting Brackets Shielded	D-Sub - Stacked	Polyester Thermoplastic	Nickel Plated Steel	Gold	85 °C	-55 °C
EDAC Inc. 662-009-364-048	Housing/Shell (4-40)	3 A	Through Hole Right Angle	2	Black	Receptacle Female Sockets	1 (DE E)	8.08 mm	0.318 "	UL94 V-0	0.38 µm	15 µin	9	Solder	Signal	Board Lock Mounting Brackets Shielded	D-Sub - Stacked	Polyester Thermoplastic	Nickel Plated Steel	Gold	85 °C	-55 °C
EDAC Inc. 662-009-664-050	Housing/Shell (Unthreaded)	3 A	Through Hole Right Angle	2	Black	Receptacle Female Sockets	1 (DE E)	8.08 mm	0.318 "	UL94 V-0	0.76 Ám	30 Áin	9	Solder	Signal	Mounting Brackets Shielded	D-Sub - Stacked	Polyester Thermoplastic	Nickel Plated Steel	Gold	85 °C	-55 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 5.89

Description

General part information

662-009 Series

9, 9 Position D-Sub - Stacked Receptacle, Female Sockets Connector
