321-13-116-41-001000

Active

Mill-Max Manufacturing Corp.

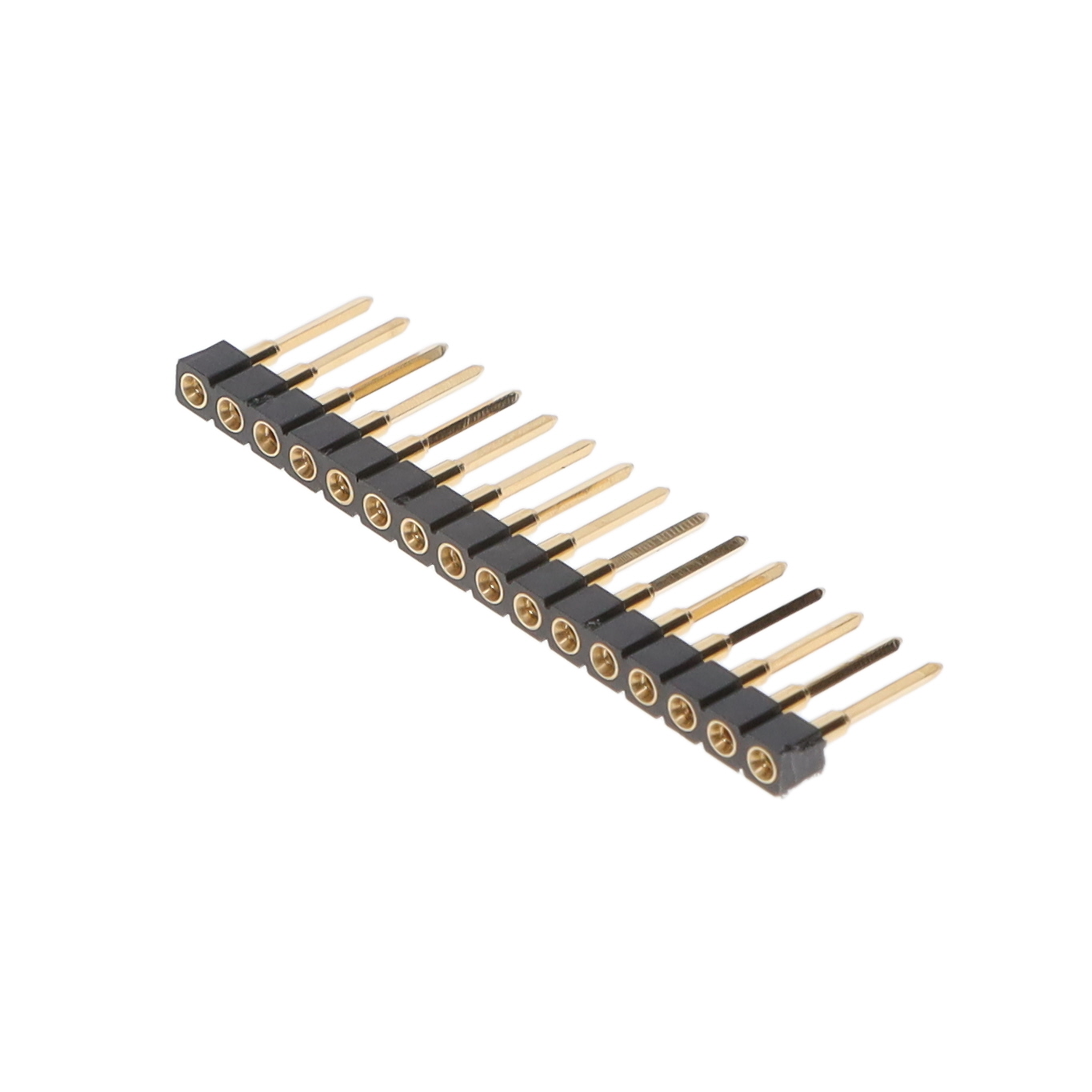

CONN RCPT 16POS 0.1 GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

321-13-116-41-001000

Active

Mill-Max Manufacturing Corp.

CONN RCPT 16POS 0.1 GOLD PCB

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	321-13-116-41-001000

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	10 çin
Contact Finish Thickness - Post	0.25 çm
Contact Length - Post	0.25 in
Contact Length - Post	6.35 mm
Contact Material	Beryllium Copper
Contact Shape	Circular
Contact Type	Female Socket
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Mounting Type	Through Hole
Number of Positions	16
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Termination	Wire Wrap

321-13 Series

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Contact Finish - Mating	Number of Positions Loaded	Termination	Insulation Color	Mounting Type	Number of Rows	Fastening Type	Contact Finish - Post	Number of Positions	Contact Type	Connector Type	Contact Shape	Pitch - Mating	Pitch - Mating	Contact Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post	Contact Length - Post	Number of Positions	Contact Material - Mating	Housing Material	Contact Material - Post	Pitch - Post	Pitch - Post	Type	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Termination Post Length	Termination Post Length
Mill-Max Manufacturing Corp. 321-13-116-41-001000	30 Áin	0.76 Ám	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 °C	125 °C	3 A	Gold	All	Wire Wrap	Black	Through Hole	1	Push-Pull	Gold	16	Female Socket	Receptacle	Circular	0.1 in	2.54 mm	Beryllium Copper	10 çin	0.25 çm	0.25 in	6.35 mm
Mill-Max Manufacturing Corp. 321-13-124-41-001000	30 Áin	0.76 Ám	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 °C	125 °C	3 A	Gold	All	Wire Wrap	Black	Through Hole	1	Push-Pull	Gold		Female Socket	Receptacle	Circular	0.1 in	2.54 mm	Beryllium Copper	10 çin	0.25 çm	0.25 in	6.35 mm	24
Mill-Max Manufacturing Corp. 321-13-111-41-001000	30 Áin	0.76 Ám	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 °C	125 °C	3 A	Gold	All	Wire Wrap	Black	Through Hole	1	Push-Pull	Gold		Female Socket	Receptacle	Circular	0.1 in	2.54 mm	Beryllium Copper	10 çin	0.25 çm	0.25 in	6.35 mm	11
Mill-Max Manufacturing Corp. 321-13-112-41-001000	30 Áin	0.76 Ám	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 °C	125 °C	3 A	Gold	All	Wire Wrap	Black	Through Hole	1	Push-Pull	Gold		Female Socket	Receptacle	Circular	0.1 in	2.54 mm	Beryllium Copper	10 çin	0.25 çm	0.25 in	6.35 mm	12
Mill-Max Manufacturing Corp. 321-13-145-41-001000	30 Áin	0.76 Ám	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 °C	125 °C	3 A	Gold	All	Wire Wrap	Black	Through Hole	1	Push-Pull	Gold		Female Socket	Receptacle	Circular	0.1 in	2.54 mm	Beryllium Copper	10 çin	0.25 çm	0.25 in	6.35 mm	45
Mill-Max Manufacturing Corp. 321-13-162-41-001000	30 Áin	0.76 Ám	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 °C	125 °C	3 A	Gold	All	Wire Wrap	Black	Through Hole	1	Push-Pull	Gold		Female Socket	Receptacle	Circular	0.1 in	2.54 mm	Beryllium Copper	10 çin	0.25 çm	0.25 in	6.35 mm	62
Mill-Max Manufacturing Corp. 321-13-143-41-001000	30 Áin	0.76 Ám	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 °C	125 °C	3 A	Gold	All	Wire Wrap	Black	Through Hole	1	Push-Pull	Gold		Female Socket	Receptacle	Circular	0.1 in	2.54 mm	Beryllium Copper	10 çin	0.25 çm	0.25 in	6.35 mm	43
Mill-Max Manufacturing Corp. 321-13-127-41-001000	30 Áin	0.76 Ám	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 °C	125 °C	3 A	Gold	All	Wire Wrap	Black	Through Hole	1	Push-Pull	Gold		Female Socket	Receptacle	Circular	0.1 in	2.54 mm	Beryllium Copper	10 çin	0.25 çm	0.25 in	6.35 mm	27
Mill-Max Manufacturing Corp. 321-13-123-41-001000	30 Áin	0.76 Ám	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 °C	125 °C	3 A	Gold	All	Wire Wrap	Black	Through Hole	1	Push-Pull	Gold		Female Socket	Receptacle	Circular	0.1 in	2.54 mm	Beryllium Copper	10 çin	0.25 çm	0.25 in	6.35 mm	23
Mill-Max Manufacturing Corp. 321-13-132-41-001000	30 Áin	0.76 Ám		-55 °C	125 °C	3 A	Gold		Wire Wrap		Through Hole			Gold					0.1 in	2.54 mm		10 çin	0.25 çm				Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Brass Alloy	2.54 mm	0.1 in	SIP	1 x 32	32	6.6 mm	0.26 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 20.96
		12	$ 18.17
		108	$ 14.97
		504	$ 13.68

Description

General part information

321-13 Series

16 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold

Documents

Technical documentation and resources

No documents available
