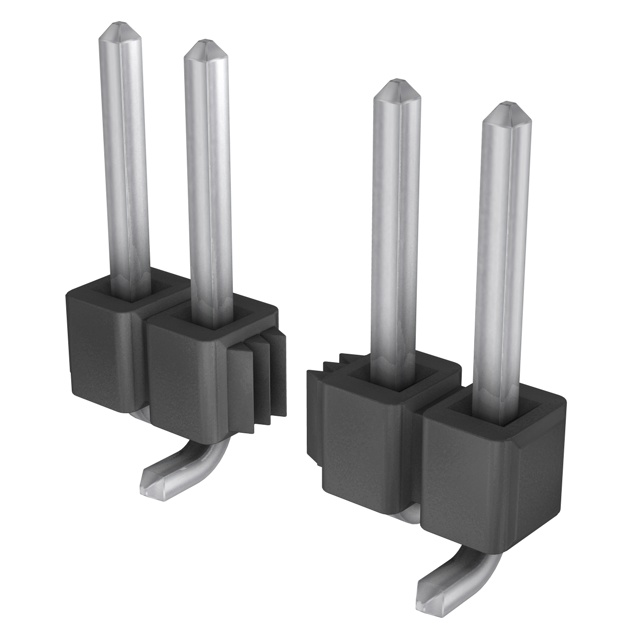

TSM-112-01-T-SV-P

Active

Samtec Inc.

CONN HEADER SMD 12POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

TSM-112-01-T-SV-P

Active

Samtec Inc.

CONN HEADER SMD 12POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TSM-112-01-T-SV-P

Connector Type	Cuttable, Header
Contact Finish - Post	Tin
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Pick and Place
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	12
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

TSM-112 Series

...

Part	Number of Rows	Contact Finish - Post	Shrouding	Connector Type	Style	Insulation Height	Insulation Height	Insulation Material	Contact Type	Contact Material	Contact Shape	Number of Positions Loaded	Termination	Pitch - Mating	Pitch - Mating	Insulation Color	Contact Length - Mating [x]	Contact Length - Mating	Material Flammability Rating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Number of Positions	Contact Length - Mating	Features
Samtec Inc. TSM-112-01-F-DH	2	Tin	Unshrouded	Header	Board to Board Cable	0.24 in	6.1 mm	Liquid Crystal Polymer (LCP)	Male Pin	Phosphor Bronze	Square	All	Solder	0.1 in	2.54 mm	Black	0.23 in	5.84 mm	UL94 V-0	2.54 mm	0.1 in	Gold	-55 °C	125 °C	Surface Mount Right Angle	3 µin	0.076 µm	Push-Pull	24
Samtec Inc. TSM-112-03-L-SH-LC	1	Tin	Unshrouded	Header	Board to Board Cable	0.12 in	3.05 mm	Liquid Crystal Polymer (LCP)	Male Pin	Phosphor Bronze	Square	All	Solder	0.1 in	2.54 mm	Black		10.67 mm	UL94 V-0			Gold	-55 °C	125 °C	Surface Mount Right Angle	10 çin	0.25 çm	Push-Pull	12	0.42 in
Samtec Inc. TSM-112-01-STL-SH	1	Tin	Unshrouded	Header	Board to Board Cable	0.12 in	3.05 mm	Liquid Crystal Polymer (LCP)	Male Pin	Phosphor Bronze	Square	All	Solder	0.1 in	2.54 mm	Black	0.23 in	5.84 mm	UL94 V-0			Gold	-55 °C	125 °C	Surface Mount Right Angle	30 Áin	0.76 Ám	Push-Pull	12
Samtec Inc. TSM-112-01-S-SH-K	1	Tin	Unshrouded	Header	Board to Board Cable	0.12 in	3.05 mm	Liquid Crystal Polymer (LCP)	Male Pin	Phosphor Bronze	Square	All	Solder	0.1 in	2.54 mm	Black	0.23 in	5.84 mm	UL94 V-0			Gold	-55 °C	125 °C	Surface Mount Right Angle	30 Áin	0.76 Ám	Push-Pull	12		Pick and Place
Samtec Inc. TSM-112-04-T-SH-K-TR	1	Tin	Unshrouded	Header	Board to Board Cable	0.12 in	3.05 mm	Liquid Crystal Polymer (LCP)	Male Pin	Phosphor Bronze	Square	All	Solder	0.1 in	2.54 mm	Black		3.05 mm	UL94 V-0				-55 °C	105 ░C	Surface Mount Right Angle			Push-Pull	12	0.12 in	Pick and Place
Samtec Inc. TSM-112-03-L-DH-A-K-TR	2	Tin	Unshrouded	Header	Board to Board Cable	0.24 in	6.1 mm	Liquid Crystal Polymer (LCP)	Male Pin	Phosphor Bronze	Square	All	Solder	0.1 in	2.54 mm	Black		10.67 mm	UL94 V-0	2.54 mm	0.1 in	Gold	-55 °C	125 °C	Surface Mount Right Angle	10 çin	0.25 çm	Push-Pull	24	0.42 in	Board Guide Pick and Place
Samtec Inc. TSM-112-01-T-SH-A	1	Tin	Unshrouded	Header	Board to Board Cable	0.12 in	3.05 mm	Liquid Crystal Polymer (LCP)	Male Pin	Phosphor Bronze	Square	All	Solder	0.1 in	2.54 mm	Black	0.23 in	5.84 mm	UL94 V-0				-55 °C	105 ░C	Surface Mount Right Angle			Push-Pull	12		Board Guide
Samtec Inc. TSM-112-01-T-SV-P	1	Tin	Unshrouded	Cuttable Header	Board to Board Cable	0.1 in	2.54 mm	Liquid Crystal Polymer (LCP)	Male Pin	Phosphor Bronze	Square	All	Solder	0.1 in	2.54 mm	Black	0.23 in	5.84 mm	UL94 V-0				-55 °C	105 ░C	Surface Mount			Push-Pull	12		Pick and Place
Samtec Inc. TSM-112-01-SM-DH-P	2	Tin	Unshrouded	Header	Board to Board Cable	0.24 in	6.1 mm	Liquid Crystal Polymer (LCP)	Male Pin	Phosphor Bronze	Square	All	Solder	0.1 in	2.54 mm	Black	0.23 in	5.84 mm	UL94 V-0	2.54 mm	0.1 in	Gold	-55 °C	125 °C	Surface Mount Right Angle	30 Áin	0.76 Ám	Push-Pull	24		Pick and Place
Samtec Inc. TSM-112-02-S-DH-TR	2	Tin	Unshrouded	Header	Board to Board Cable	0.24 in	6.1 mm	Liquid Crystal Polymer (LCP)	Male Pin	Phosphor Bronze	Square	All	Solder	0.1 in	2.54 mm	Black		8.13 mm	UL94 V-0	2.54 mm	0.1 in	Gold	-55 °C	125 °C	Surface Mount Right Angle	30 Áin	0.76 Ám	Push-Pull	24	0.32 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	19	$ 1.68

Description

General part information

TSM-112 Series

Connector Header Surface Mount 12 position 0.100" (2.54mm)

Documents

Technical documentation and resources

No documents available
