Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | UPS560E3/TR13 | UPS560 Series |
|---|---|---|
| - | - | |
| Capacitance @ Vr, F | 150 pF | 150 pF |
| Current - Average Rectified (Io) | 5 A | 5 A |
| Current - Reverse Leakage @ Vr | 200 µA | 200 µA |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature - Junction [Max] | 125 °C | 125 °C |
| Operating Temperature - Junction [Min] | -55 °C | -55 °C |
| Package / Case | Powermite®3 | DO-216AA, Powermite®3 |
| Speed | 200 mA, 500 ns | 200 - 500 mA |
| Supplier Device Package | Powermite 3 | Powermite, Powermite 3 |
| Technology | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) [Max] | 60 V | 60 V |
| Voltage - Forward (Vf) (Max) @ If | 690 mV | 690 mV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.59 | |
| 100 | $ 0.55 | |||
| Digi-Reel® | 1 | $ 0.59 | ||
| 100 | $ 0.55 | |||
| Tape & Reel (TR) | 5000 | $ 0.55 | ||
| Microchip Direct | N/A | 1 | $ 0.59 | |
| 100 | $ 0.55 | |||
| 500 | $ 0.53 | |||
| 1000 | $ 0.49 | |||
UPS560 Series

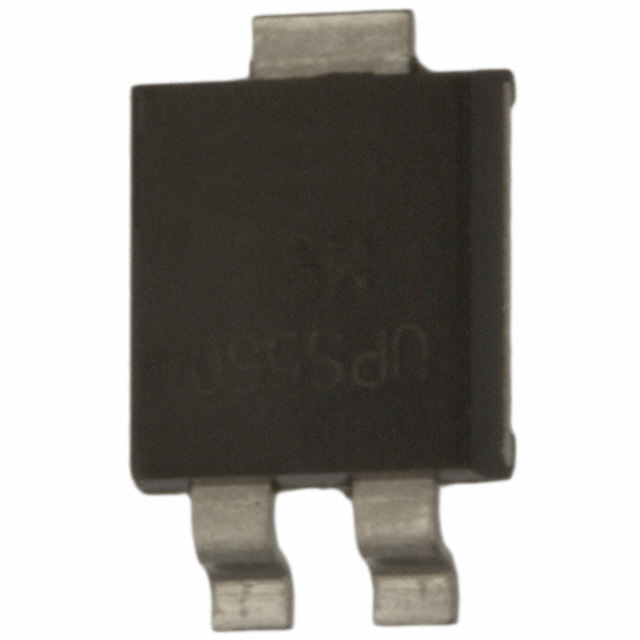

Diode Schotty 3-Pin(2+Tab) 5.0A, 60V, VF=0.60V PowerMite3 T/R
| Part | Technology | Voltage - DC Reverse (Vr) (Max) [Max] | Voltage - Forward (Vf) (Max) @ If | Operating Temperature - Junction [Min] | Operating Temperature - Junction [Max] | Mounting Type | Package / Case | Supplier Device Package | Capacitance @ Vr, F | Current - Average Rectified (Io) | Speed | Current - Reverse Leakage @ Vr |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology UPS560/TR13 | Schottky | 60 V | 690 mV | -55 °C | 125 °C | Surface Mount | DO-216AA | Powermite | 150 pF | 5 A | 200 mA, 500 ns | 200 µA |
Microchip Technology UPS560E3/TR13 | Schottky | 60 V | 690 mV | -55 °C | 125 °C | Surface Mount | Powermite®3 | Powermite 3 | 150 pF | 5 A | 200 mA, 500 ns | 200 µA |
Microchip Technology UPS560E3/TR13 |
Description
General part information
UPS560 Series
High power surface mount package.
Documents
Technical documentation and resources
