Q-2704S000M003M

Active

Amphenol Custom Cable

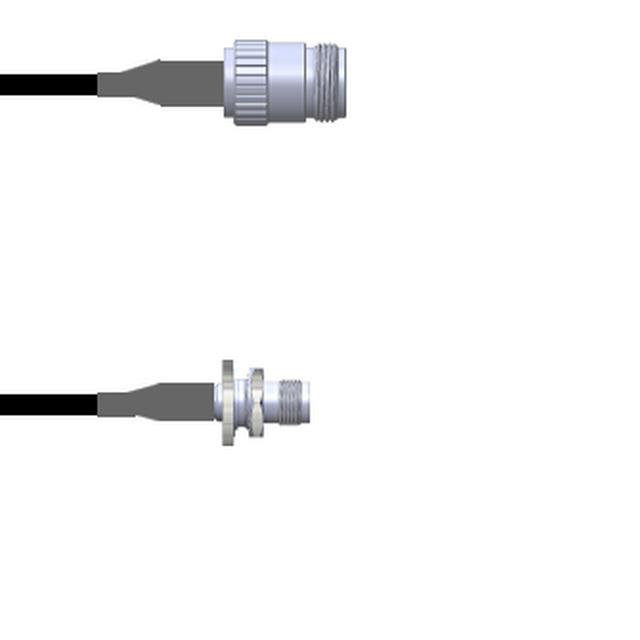

CBL ASSY NTYPE-TNC JCK-JCK 9.8'

Deep-Dive with AI

Search across all available documentation for this part.

Q-2704S000M003M

Active

Amphenol Custom Cable

CBL ASSY NTYPE-TNC JCK-JCK 9.8'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2704S000M003M

1st Connector	N-Type Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	TNC Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	LMR 240
Color	Black
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	3 m
Length	118.1 in
Length	9.8 '
Overall Impedance	50 Ohms

Q-2704S0 Series

Part	Frequency - Max [Max]	Length	Length	Length	Overall Impedance	1st Connector	Cable Type	2nd Connector Mounting Feature	1st Contact Gender	2nd Contact Gender	Color	1st Connector Mounting Type	2nd Connector	2nd Connector Mounting Type	Features	Length [x]	Length [x]
Amphenol Custom Cable Q-2704S000M001M	6000 MHz	1 m	3.3 ft	39.4 in	50 Ohms	N-Type Jack	LMR 240	Bulkhead - Front Side Nut	Female	Female	Black	Free Hanging (In-Line)	TNC Jack	Panel Mount	Shielded
Amphenol Custom Cable Q-2704S000M003M	6000 MHz	3 m	9.8 '	118.1 in	50 Ohms	N-Type Jack	LMR 240	Bulkhead - Front Side Nut	Female	Female	Black	Free Hanging (In-Line)	TNC Jack	Panel Mount	Shielded
Amphenol Custom Cable Q-2704S000M.75M	6000 MHz	750 mm		29.53 "	50 Ohms	N-Type Jack	LMR 240	Bulkhead - Front Side Nut	Female	Female	Black	Free Hanging (In-Line)	TNC Jack	Panel Mount	Shielded
Amphenol Custom Cable Q-2704S000M072i	6000 MHz	1.8 m	6 ft	72 in	50 Ohms	N-Type Jack	LMR 240	Bulkhead - Front Side Nut	Female	Female	Black	Free Hanging (In-Line)	TNC Jack	Panel Mount	Shielded
Amphenol Custom Cable Q-2704S000M108i	6000 MHz	2.7 m	9 ft	108 in	50 Ohms	N-Type Jack	LMR 240	Bulkhead - Front Side Nut	Female	Female	Black	Free Hanging (In-Line)	TNC Jack	Panel Mount	Shielded
Amphenol Custom Cable Q-2704S000M018i	6000 MHz				50 Ohms	N-Type Jack	LMR 240	Bulkhead - Front Side Nut	Female	Female	Black	Free Hanging (In-Line)	TNC Jack	Panel Mount	Shielded	457.2 mm	457.2 mm
Amphenol Custom Cable Q-2704S000M0.5M	6000 MHz	50 cm		19.69 "	50 Ohms	N-Type Jack	LMR 240	Bulkhead - Front Side Nut	Female	Female	Black	Free Hanging (In-Line)	TNC Jack	Panel Mount	Shielded
Amphenol Custom Cable Q-2704S000M048i	6000 MHz	1200 mm	4 ft	48 in	50 Ohms	N-Type Jack	LMR 240	Bulkhead - Front Side Nut	Female	Female	Black	Free Hanging (In-Line)	TNC Jack	Panel Mount	Shielded
Amphenol Custom Cable Q-2704S000M036i	6000 MHz	91.44 cm		36 in	50 Ohms	N-Type Jack	LMR 240	Bulkhead - Front Side Nut	Female	Female	Black	Free Hanging (In-Line)	TNC Jack	Panel Mount	Shielded
Amphenol Custom Cable Q-2704S000M024i	6000 MHz	609.6 mm		24 "	50 Ohms	N-Type Jack	LMR 240	Bulkhead - Front Side Nut	Female	Female	Black	Free Hanging (In-Line)	TNC Jack	Panel Mount	Shielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 119.50
		25	$ 111.48
		50	$ 103.46
		100	$ 96.59
		250	$ 90.87

Description

General part information

Q-2704S0 Series

Cable Assembly Coaxial N-Type to TNC LMR 240 118.1" (3.0m) 9.8'

Documents

Technical documentation and resources

No documents available
