346-93-133-41-013000

Active

Mill-Max Manufacturing Corp.

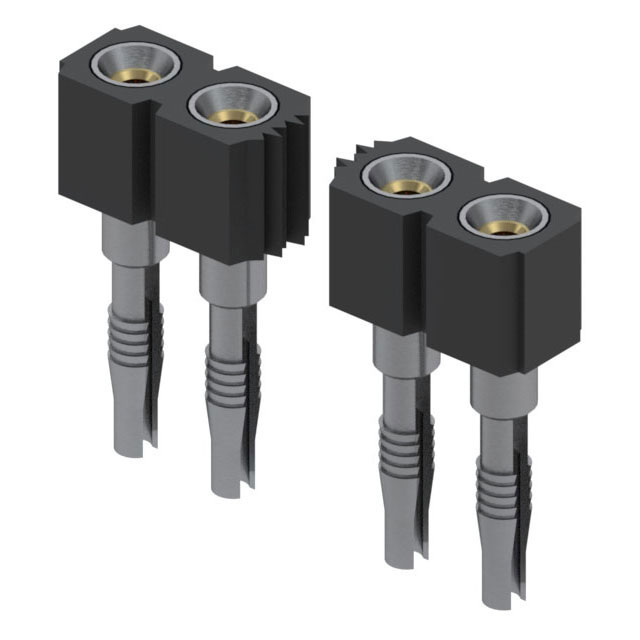

CONN SOCKET SIP 33POS GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

346-93-133-41-013000

Active

Mill-Max Manufacturing Corp.

CONN SOCKET SIP 33POS GOLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	346-93-133-41-013000

Contact Finish - Mating	Gold
Contact Finish - Post	Tin-Lead
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Material - Mating	Beryllium Copper
Contact Material - Post	Brass Alloy
Current Rating (Amps)	3 A
Housing Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Mounting Type	Through Hole
Number of Positions or Pins (Grid)	33
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Press-Fit
Termination Post Length	4.45 mm
Termination Post Length	0.175 in
Type	SIP

346-93 Series

Part	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Number of Rows	Contact Shape	Contact Type	Contact Material	Current Rating (Amps)	Mounting Type	Contact Finish - Post	Contact Finish - Mating	Termination	Insulation Material	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Voltage Rating	Material Flammability Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Connector Type	Contact Material - Post	Number of Positions or Pins (Grid)	Housing Material	Termination Post Length	Termination Post Length	Type	Pitch - Post	Pitch - Post	Contact Material - Mating	Number of Positions	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]
Mill-Max Manufacturing Corp. 346-93-147-41-012000	0.12 in	3.05 mm	Black	-55 °C	125 °C	All	0.1 in	2.54 mm	1	Circular	Female Socket	Beryllium Copper	3 A	Through Hole	Tin-Lead	Gold	Press-Fit	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Push-Pull	30 Áin	0.76 Ám	100 V 150 VDC	UL94 V-0	200 µin	5.08 µm	Receptacle
Mill-Max Manufacturing Corp. 346-93-153-41-013000				-55 °C	125 °C		0.1 in	2.54 mm					3 A	Through Hole	Tin-Lead	Gold	Press-Fit			30 Áin	0.76 Ám			200 µin	5.08 µm		Brass Alloy	53	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	4.45 mm	0.175 in	SIP	2.54 mm	0.1 in	Beryllium Copper
Mill-Max Manufacturing Corp. 346-93-133-41-013000				-55 °C	125 °C		0.1 in	2.54 mm					3 A	Through Hole	Tin-Lead	Gold	Press-Fit			30 Áin	0.76 Ám			200 µin	5.08 µm		Brass Alloy	33	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	4.45 mm	0.175 in	SIP	2.54 mm	0.1 in	Beryllium Copper
Mill-Max Manufacturing Corp. 346-93-113-41-012000	0.12 in	3.05 mm	Black	-55 °C	125 °C	All	0.1 in	2.54 mm	1	Circular	Female Socket	Beryllium Copper	3 A	Through Hole	Tin-Lead	Gold	Press-Fit	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Push-Pull	30 Áin	0.76 Ám	100 V 150 VDC	UL94 V-0	200 µin	5.08 µm	Receptacle										13
Mill-Max Manufacturing Corp. 346-93-121-41-013000				-55 °C	125 °C		0.1 in	2.54 mm					3 A	Through Hole	Tin-Lead	Gold	Press-Fit			30 Áin	0.76 Ám			200 µin	5.08 µm		Brass Alloy	21	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	4.45 mm	0.175 in	SIP	2.54 mm	0.1 in	Beryllium Copper
Mill-Max Manufacturing Corp. 346-93-148-41-012000	0.12 in	3.05 mm	Black	-55 °C	125 °C	All	0.1 in	2.54 mm	1	Circular	Female Socket	Beryllium Copper	3 A	Through Hole	Tin-Lead	Gold	Press-Fit	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Push-Pull	30 Áin	0.76 Ám	100 V 150 VDC	UL94 V-0	200 µin	5.08 µm	Receptacle										48
Mill-Max Manufacturing Corp. 346-93-117-41-013000				-55 °C	125 °C		0.1 in	2.54 mm					3 A	Through Hole	Tin-Lead	Gold	Press-Fit			30 Áin	0.76 Ám			200 µin	5.08 µm		Brass Alloy	17	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	4.45 mm	0.175 in	SIP	2.54 mm	0.1 in	Beryllium Copper
Mill-Max Manufacturing Corp. 346-93-160-41-013000				-55 °C	125 °C		0.1 in	2.54 mm					3 A	Through Hole	Tin-Lead	Gold	Press-Fit			30 Áin	0.76 Ám			200 µin	5.08 µm		Brass Alloy	60	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	4.45 mm	0.175 in	SIP	2.54 mm	0.1 in	Beryllium Copper
Mill-Max Manufacturing Corp. 346-93-141-41-012000	0.12 in	3.05 mm	Black	-55 °C	125 °C	All	0.1 in	2.54 mm	1	Circular	Female Socket	Beryllium Copper	3 A	Through Hole	Tin-Lead	Gold	Press-Fit	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Push-Pull	30 Áin	0.76 Ám	100 V 150 VDC	UL94 V-0	200 µin	5.08 µm	Receptacle										41
Mill-Max Manufacturing Corp. 346-93-145-41-013000				-55 °C	125 °C		0.1 in	2.54 mm					3 A	Through Hole	Tin-Lead	Gold	Press-Fit			30 Áin	0.76 Ám			200 µin	5.08 µm		Brass Alloy		Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	4.45 mm	0.175 in	SIP	2.54 mm	0.1 in	Beryllium Copper		45	1 x 45

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.68
		10	$ 6.66
		100	$ 5.17
		500	$ 4.39
		1000	$ 4.10

Description

General part information

346-93 Series

33 (1 x 33) Pos SIP Socket Gold Through Hole

Documents

Technical documentation and resources
