3786-C-60

Active

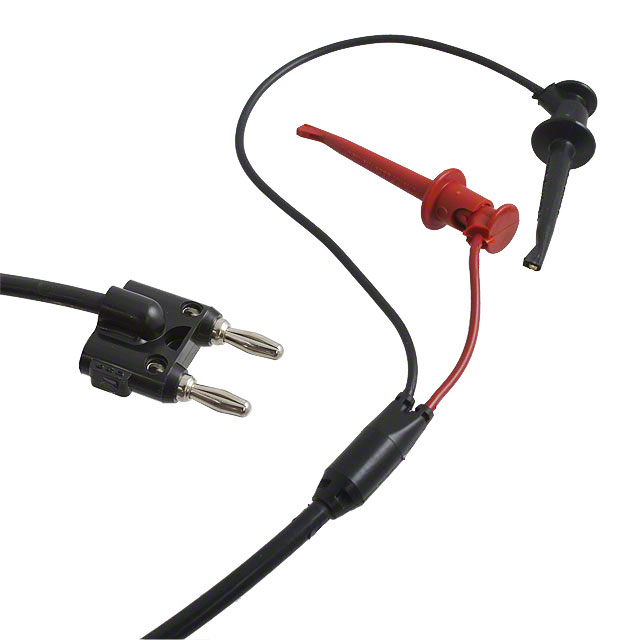

TEST LEAD BANANA TO GRABBER 60"

Active

TEST LEAD BANANA TO GRABBER 60"

Description

General part information

60.0" (1524.00mm) Banana Plug, Double, Stackable To Mini Hook (2) Patch Cord 300VAC, DC

Parameters and characteristics for this part

Specification	3786-C-60

1st Connector	Stackable, Banana Plug, Double
2nd Connector	Mini Hook
2nd Connector Count	2 pcs
Cable Length	60 in
Configuration	Hook, Banana to Grabber
Contents	Black and Red Leads, Black
Current Rating	5 A
Lead Quantity	1
Material - Insulation	PVC, Poly-Vinyl Chloride
Stacking Method	Front, Multi-Stacking, Vertical
Type	Patch Cord
Voltage - Rated	300 VAC
Voltage - Rated (Type)	DC
Wire Gauge	20 AWG, RG-58C/U

Part	Current Rating	Configuration	Voltage - Rated (Type)	Voltage - Rated	Wire Gauge	Cable Length	2nd Connector Count	2nd Connector	Contents	Lead Quantity	Type	Stacking Method	Material - Insulation	1st Connector
Pomona Electronics 3786-C-60	5 A	Banana to Grabber Hook	DC	300 VAC	20 AWG RG-58C/U	60 in	2 pcs	Mini Hook	Black Black and Red Leads	1	Patch Cord	Front Multi-Stacking Vertical	Poly-Vinyl Chloride PVC	Banana Plug Double Stackable
Pomona Electronics 3786-C-18	5 A	Banana to Grabber Hook	DC	300 VAC	20 AWG RG-58C/U	18 "	2 pcs	Mini Hook	Black Black and Red Leads	1	Patch Cord	Front Multi-Stacking Vertical	Poly-Vinyl Chloride PVC	Banana Plug Double Stackable
Pomona Electronics 3786-C-48	5 A	Banana to Grabber Hook	DC	300 VAC	20 AWG RG-58C/U	48 in	2 pcs	Mini Hook	Black Black and Red Leads	1	Patch Cord	Front Multi-Stacking Vertical	Poly-Vinyl Chloride PVC	Banana Plug Double Stackable
