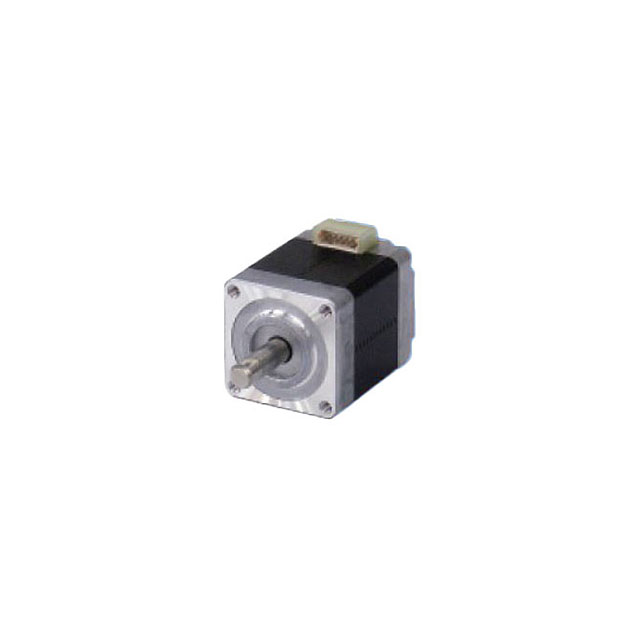

10PM-K405B - 10PM

10PM-K405B

Active
NMB TECHNOLOGIES

STEPPER MOTOR HYBRID BIPOLAR 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMinebeaMitsumi Nylon PA66 Notification LetterDatasheet
10PM-K405B - 10PM

10PM-K405B

Active
NMB TECHNOLOGIES

STEPPER MOTOR HYBRID BIPOLAR 24V

Deep-Dive with AI

DocumentsMinebeaMitsumi Nylon PA66 Notification LetterDatasheet

Technical Specifications

Parameters and characteristics for this part

Specification10PM-K405B
Coil Resistance1.6 Ohms
Coil TypeBipolar
Current Rating (Amps)1.5 A
Diameter - Shaft [diameter]0.197 in
Diameter - Shaft [diameter]5 mm
FeaturesRound Shaft
Length - Shaft and Bearing [x]0.394 in
Length - Shaft and Bearing [x]10 mm
Mounting Hole Spacing20 mm
Mounting Hole Spacing0.787 "
NEMA Frame Size10
Rotor Inertia12 gcm˛
Size / Dimension [x]25 mm
Size / Dimension [x]0.984 in
Size / Dimension [y]0.984 in
Size / Dimension [y]25 mm
Step Angle1.8 °
Steps per Revolution200
Termination StyleConnector
Torque - Holding (oz-in / mNm)17 oz-in
Torque - Holding (oz-in / mNm)120 mNm
TypeHybrid
Voltage - Rated24 VDC
Weight150.14 g
Weight0.331 lb

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBox 11$ 35.35

Description

General part information

10PM Series

Bipolar Stepper Motor Hybrid Frame Size 10 200.0 Step 1.5 A 24VDC
