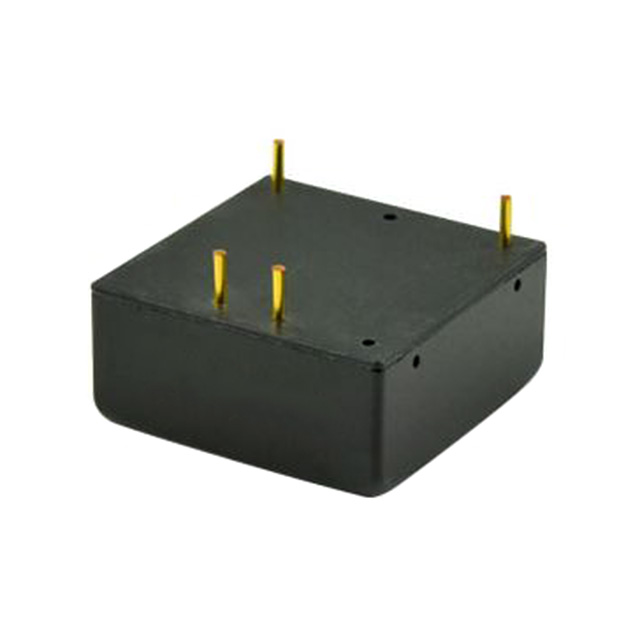

PQDE6W-Q24-S12-D
CUI Inc.
DC DC CONVERTER 12V 6W
Deep-Dive with AI
Search across all available documentation for this part.
PQDE6W-Q24-S12-D
CUI Inc.
DC DC CONVERTER 12V 6W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PQDE6W-Q24-S12-D |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | EN, CB Scheme, UL, IEC |
| Current - Output (Max) [Max] | 500 mA |
| Efficiency | 87 % |
| Features | SCP, UVLO, OVP, OCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 4 Lead |
| Package / Case | 5-DIP Module |
| Power (Watts) | 6 W |
| Size / Dimension [x] | 25.4 mm |
| Size / Dimension [x] | 25.4 mm |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [z] | 0.46 in |
| Size / Dimension [z] | 11.7 mm |
| Standard Number | 55024, 60950-1, 55032 Class A |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 36 V |
| Voltage - Input (Min) [Min] | 9 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 12 V |
PQDE6W Series
| Part | Package / Case | Voltage - Input (Min) [Min] | Power (Watts) | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Isolation | Voltage - Input (Max) [Max] | Number of Outputs | Applications | Voltage - Output 1 | Efficiency | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Mounting Type | Approval Agency | Current - Output (Max) [Max] | Type | Current - Output (Max) | Current - Output (Max) | Standard Number | Voltage - Output 2 | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Features | Package / Case | Input Type | DC Voltage - Input (Min) [Min] | DC Voltage - Input (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CUI Inc. | 6-DIP Module 4 Leads | 40 V | 6 W | 85 °C | -40 °C | 2250 VDC | 160 V | 1 | ITE (Commercial) | 24 V | 86 % | 25.4 mm | 0.46 in | 25.4 mm | 11.7 mm | 25.4 mm | 25.4 mm | Through Hole | CE | 250 mA | Isolated Module | ||||||||||||
CUI Inc. | 19 V | 6 W | 85 °C | -40 °C | 1.5 kV | 75 V | 2 | ITE (Commercial) | 12 V | 87 % | 76 mm | 21.2 mm | 31.5 mm | Chassis Mount | EN | Enclosed | 250 mA | 250 mA | 55024 55032 | -12 V | 2.99 in | 0.84 " | 1.24 in | ||||||||||
CUI Inc. | 5-DIP Module | 9 V | 6 W | 85 °C | -40 °C | 1.5 kV | 36 V | 1 | ITE (Commercial) | 12 V | 87 % | 25.4 mm | 0.46 in | 25.4 mm | 11.7 mm | 25.4 mm | 25.4 mm | Through Hole | CB Scheme EN IEC UL | 500 mA | Isolated Module | 55024 55032 Class A 60950-1 | OCP OVP SCP UVLO | 4 Lead | |||||||||
CUI Inc. | 6-DIP Module | 40 V | 6 W | 85 °C | -40 °C | 2250 VDC | 160 V | 2 | ITE (Commercial) | 12 V | 84 % | 25.4 mm | 0.46 in | 25.4 mm | 11.7 mm | 25.4 mm | 25.4 mm | Through Hole | CE | Isolated Module | 250 mA | 250 mA | -12 V | ||||||||||
CUI Inc. | 6 W | 85 °C | -40 °C | 1.5 kV | 2 | ITE (Commercial) | 15 V | 88 % | 76 mm | 22.2 mm | 31.5 mm | CE cURus | -15 V | 2.99 in | 0.87 in | 1.24 in | DC | 10 V | 36 V | ||||||||||||||
CUI Inc. | 40 V | 6 W | 85 °C | -40 °C | 2250 VDC | 160 V | 1 | ITE (Commercial) | 5 V | 80 % | 76 mm | 25.2 mm | 31.5 mm | Chassis Mount | CE | 1.2 A | Enclosed | 62368-1 | 2.99 in | 0.99 " | 1.24 in | ||||||||||||
CUI Inc. | 6 W | 85 °C | -40 °C | 2250 VDC | 2 | ITE (Commercial) | 12 V | 84 % | 76 mm | 25.8 mm | 31.5 mm | CE | 250 mA | 250 mA | 62368-1 | -12 V | 2.99 in | 1.02 in | 1.24 in | DC | 40 V | 160 V | |||||||||||
CUI Inc. | 40 V | 6 W | 85 °C | -40 °C | 2250 VDC | 160 V | 2 | ITE (Commercial) | 15 V | 85 % | 76 mm | 21.2 mm | 31.5 mm | Chassis Mount | CE | Enclosed | 62368-1 | -15 V | 2.99 in | 0.84 " | 1.24 in | ||||||||||||
CUI Inc. | 40 V | 6 W | 85 °C | -40 °C | 2250 VDC | 160 V | 1 | ITE (Commercial) | 15 V | 85 % | 76 mm | 21.2 mm | 31.5 mm | Chassis Mount | CE | 400 mA | Enclosed | 62368-1 | 2.99 in | 0.84 " | 1.24 in | ||||||||||||
CUI Inc. | 10 VDC | 6 W | 85 °C | -40 °C | 1.5 kV | 36 V | 2 | ITE (Commercial) | 12 V | 87 % | 76 mm | 21.2 mm | 31.5 mm | Chassis Mount | EN | Enclosed | 250 mA | 250 mA | 55024 55032 | -12 V | 2.99 in | 0.84 " | 1.24 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 15.71 | |
| 5 | $ 14.81 | |||
Description
General part information
PQDE6W Series
Isolated Module DC DC Converter 1 Output 12V 500mA 9V - 36V Input
