0152680961

Active

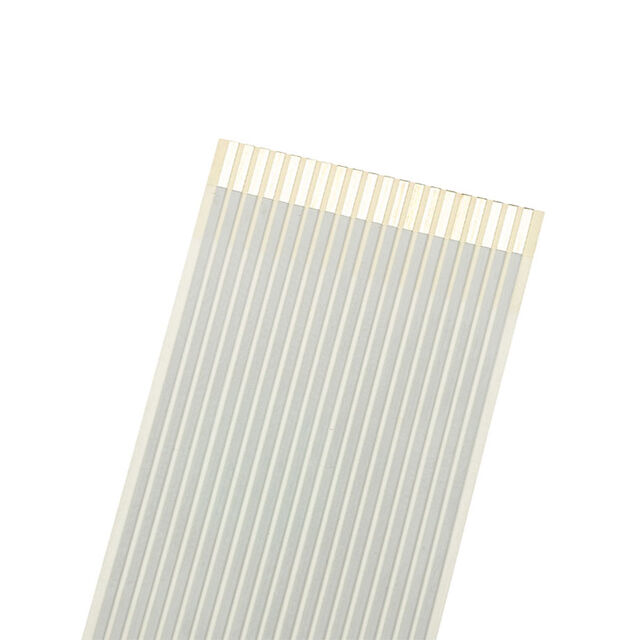

CABLE FFC 25POS 1.25MM 10"

Active

CABLE FFC 25POS 1.25MM 10"

Description

General part information

25 Position FFC, FPC Cable 0.049" (1.25mm) 10.0" (254.0mm)

Parameters and characteristics for this part

Specification	0152680961

Cable Type	FPC, FFC
Length	10 in
Length - Exposed Ends	0.197 in
Number of Conductors	25
Pitch	0.049 in
Termination Style	Backers on Both Sides, Top on Both Sides

...

Part	Pitch	Length - Exposed Ends	Cable Type	Length	Termination Style	Number of Conductors
Molex 0152680229	0.049 in	0.197 in	FFC FPC	10 in	Backers on Both Sides Top on Both Sides	16
Molex 0152680961	0.049 in	0.197 in	FFC FPC	10 in	Backers on Both Sides Top on Both Sides	25
Molex 0152680316	0.049 in	0.197 in	FFC FPC	228.6 mm	Backers on Both Sides Bottom on Other Top on One Side	24
Molex 0152680423	0.049 in	0.197 in	FFC FPC	8 in	Backers on Both Sides Top on Both Sides	34
Molex 0152681074	0.049 in	0.197 in	FFC FPC	1.18 in	Backers on Both Sides Bottom on Other Top on One Side	37
Molex 0152680936	0.049 in	0.197 in	FFC FPC	228.6 mm	Backers on Both Sides Bottom on Other Top on One Side	23
Molex 0152681007	0.049 in	0.197 in	FFC FPC	12 in	Backers on Both Sides Top on Both Sides	29
Molex 0152681077	0.049 in	0.197 in	FFC FPC	2 in	Backers on Both Sides Top on Both Sides	37
Molex 0152681004	0.049 in	0.197 in	FFC FPC	10 in	Backers on Both Sides Bottom on Other Top on One Side	29
Molex 0152681030	0.049 in	0.197 in	FFC FPC	1.18 in	Backers on Both Sides Bottom on Other Top on One Side	33
