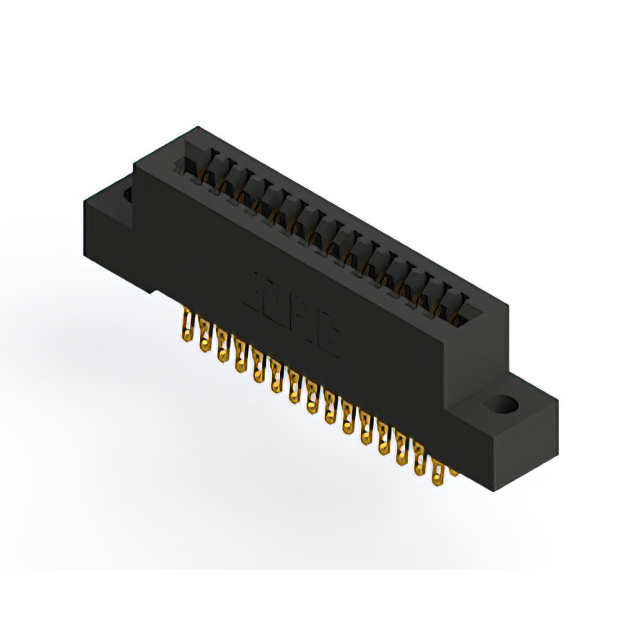

892-030-555-202
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 30POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
892-030-555-202
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 30POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 892-030-555-202 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Card Extender |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Board Edge, Straddle Mount |
| Number of Positions | 30 |
| Number of Positions/Bay/Row [custom] | 15 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
892-030 Series
...
| Part | Number of Rows | Number of Positions | Number of Positions/Bay/Row [custom] | Card Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Material | Features | Color | Contact Finish | Operating Temperature [Max] | Operating Temperature [Min] | Termination Rows | Pitch [x] | Pitch [x] | Material - Insulation | Gender | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Read Out | Contact Type | Termination | Mounting Type | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 2 | 30 | 15 | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Card Extender | Black | Gold | 125 °C | -40 °C | 2 | 2.54 mm | 0.1 in | Polyphenylene Sulfide (PPS) | Female | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Dual | Cantilever | Solder | Board Edge Straddle Mount | 10 Áin | 0.25 Ám |
EDAC Inc. | 2 | 30 | 15 | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Card Extender | Black | Gold | 125 °C | -40 °C | 2 | 2.54 mm | 0.1 in | Polyphenylene Sulfide (PPS) | Female | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | Dual | Cantilever | Solder | Board Edge Straddle Mount | 10 Áin | 0.25 Ám |
EDAC Inc. | 2 | 30 | 15 | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Black | Gold | 125 °C | -40 °C | 2 | 2.54 mm | 0.1 in | Polyphenylene Sulfide (PPS) | Female | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Dual | Cantilever | Solder Eyelet(s) | Through Hole | 10 Áin | 0.25 Ám | |
EDAC Inc. | 2 | 30 | 15 | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Black | Gold | 125 °C | -40 °C | 2 | 2.54 mm | 0.1 in | Polyphenylene Sulfide (PPS) | Female | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | Dual | Cantilever | Solder | Through Hole Right Angle | 10 Áin | 0.25 Ám | |
EDAC Inc. | 1 | 30 | 30 | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Black | Gold | 125 °C | -40 °C | 1 | 2.54 mm | 0.1 in | Polyphenylene Sulfide (PPS) | Female | 4-40 Flush Mount Threaded Insert Top Opening | Single | Cantilever | Wire Wrap | Through Hole | 10 Áin | 0.25 Ám | |||
EDAC Inc. | 2 | 30 | 15 | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Black | Gold | 125 °C | -40 °C | 2 | 2.54 mm | 0.1 in | Polyphenylene Sulfide (PPS) | Female | Dual | Cantilever | Solder | Through Hole Right Angle | 10 Áin | 0.25 Ám | ||||
EDAC Inc. | 1 | 30 | 30 | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Black | Gold | 125 °C | -40 °C | 1 | 2.54 mm | 0.1 in | Polyphenylene Sulfide (PPS) | Female | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Single | Cantilever | Solder | Through Hole Right Angle | 10 Áin | 0.25 Ám | |
EDAC Inc. | 2 | 30 | 15 | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Black | Gold | 125 °C | -40 °C | 2 | 2.54 mm | 0.1 in | Polyphenylene Sulfide (PPS) | Female | 4-40 Flush Mount Threaded Insert Top Opening | Dual | Cantilever | Solder | Through Hole | 10 Áin | 0.25 Ám | |||
EDAC Inc. | 2 | 30 | 15 | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Black | Gold | 125 °C | -40 °C | 2 | 2.54 mm | 0.1 in | Polyphenylene Sulfide (PPS) | Female | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | Dual | Cantilever | Solder | Through Hole Right Angle | 10 Áin | 0.25 Ám | |
EDAC Inc. | 1 | 30 | 30 | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Black | Gold | 125 °C | -40 °C | 1 | 2.54 mm | 0.1 in | Polyphenylene Sulfide (PPS) | Female | 4-40 Flush Mount Threaded Insert Top Opening | Single | Cantilever | Wire Wrap | Through Hole | 10 Áin | 0.25 Ám |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 64.66 | |
Description
General part information
892-030 Series
30 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
