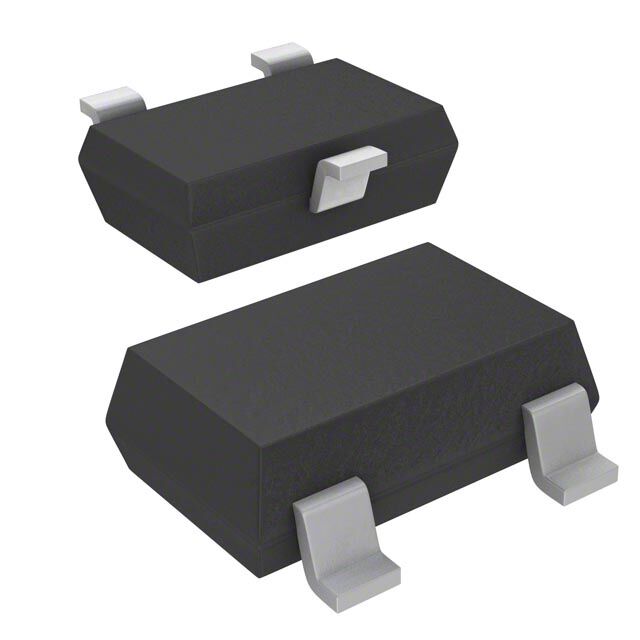

A1260ELHLX-T

Active

Allegro MicroSystems

MAGNETIC SWITCH LATCH SOT23W

Search across all available documentation for this part.

Active

Allegro MicroSystems

MAGNETIC SWITCH LATCH SOT23W

Technical Specifications

Parameters and characteristics commom to parts in this series

MAGNETIC SWITCH LATCH SOT23W

Part	Output Type	Function	Current - Output (Max) [Max]	Package / Case	Qualification	Mounting Type	Sensing Range	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Technology	Test Condition [Max]	Test Condition [Min]	Voltage - Supply [Min]	Voltage - Supply [Max]	Polarization	Grade	Current - Supply (Max) [Max]
Allegro MicroSystems A1260ELHLX-T	Open Drain	Latch	25 mA	SOT-23W	AEC-Q100	Surface Mount	-5 mT, 5 mT	SOT-23W	-40 °C	150 °C	Hall Effect	150 °C	-40 °C	3 V	24 V	South Pole	Automotive	4 mA
Allegro MicroSystems A1260LLHLX-T	Open Drain	Latch	25 mA	SOT-23W	AEC-Q100	Surface Mount	-5 mT, 5 mT	SOT-23W	-40 °C	150 °C	Hall Effect	150 °C	-40 °C	3 V	24 V	South Pole	Automotive	4 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	30000	$ 0.45

General part information

Digital Switch Latch Open Drain Hall Effect SOT-23W
