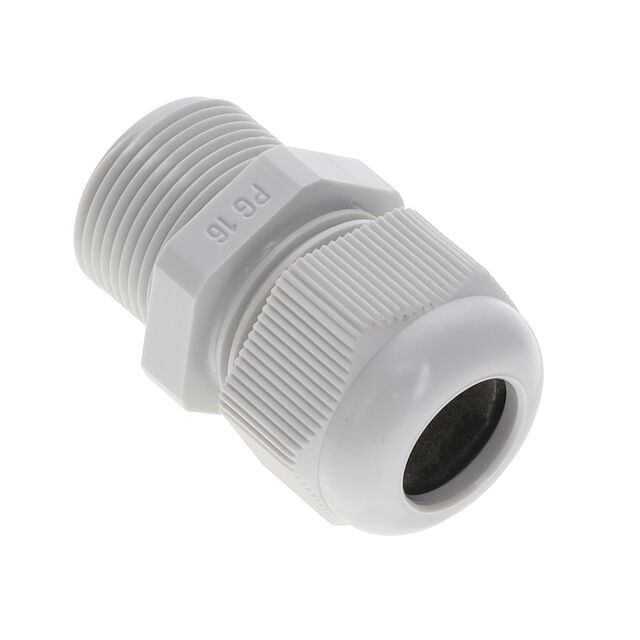

Specification	50016/7035/15

Color	Gray
Includes	Sealing Ring
Ingress Protection Description	Dust Tight, Waterproof
Ingress Protection IP Rating	IP68
Material	Polyamide (PA6), Nylon 6
Operating Temperature (Max)	100 °C
Operating Temperature (Min)	-40 °C
Outside Cable Diameter (Max)	0.551 in
Outside Cable Diameter (Min)	0.394 in
Thread Length	0.591 in
Thread Size	PG16
Type	Cable Gland

50016 Series

Part	Thread Size	Includes	Color	Outside Cable Diameter (Min)	Type	Material	Thread Length	Operating Temperature (Max)	Operating Temperature (Min)	Ingress Protection IP Rating	Ingress Protection Description	Outside Cable Diameter (Max)	Thread Diameter	Thread Pitch
Jacob GmbH 50016/7035/15	PG16	Sealing Ring	Gray	0.394 in	Cable Gland	Nylon 6 Polyamide (PA6)	0.591 in	100 °C	-40 °C	IP68	Dust Tight Waterproof	0.551 in
Jacob GmbH 50016M20BSSW		Strain Relief	Black	0.394 in	Cable Gland	Nylon 6 Polyamide (PA6)	0.591 in	100 °C	-40 °C	IP68	Dust Tight Waterproof	0.551 in	20 mm	1.5 mm
Jacob GmbH 50016PABS7035	PG16	Strain Relief	Gray	0.394 in	Cable Gland	Nylon 6 Polyamide (PA6)	0.394 in	100 °C	-40 °C	IP68	Dust Tight Waterproof	0.551 in
Jacob GmbH 50016M20BS7035		Strain Relief	Gray	0.394 in	Cable Gland	Nylon 6 Polyamide (PA6)	0.591 in	100 °C	-40 °C	IP68	Dust Tight Waterproof	0.551 in	20 mm	1.5 mm
