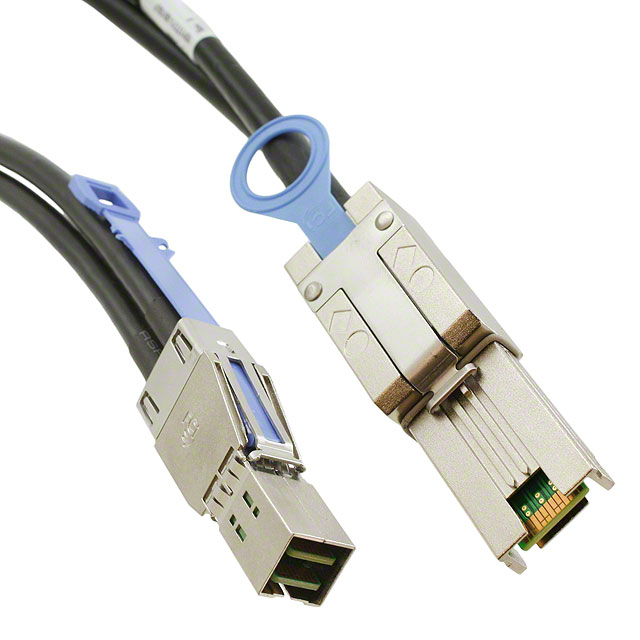

10117771-3030LF
ActiveAmphenol ICC (FCI)
CABLE MINISAS HD-MINISAS M-M 3M
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
10117771-3030LF
ActiveAmphenol ICC (FCI)
CABLE MINISAS HD-MINISAS M-M 3M
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 10117771-3030LF |
|---|---|
| Cable Connectors | miniSAS, miniSAS HD 4x |
| Cable Type | Round |
| Color | Black |
| Connector Type | Plug to Plug |
| Fastening Type | Latch Lock |
| Frequency - Max [Max] | 6 Gbps |
| Gender | Male to Male |
| Length [x] | 9.84 ft |
| Length [x] | 3 m |
| Number of Positions [custom] | 16, 26 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -40 °C |
| Shielding | Shielded |
| Usage | External |
| Wire Gauge | 28 AWG |
10117771 Series
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Cable Type | Shielding | Wire Gauge | Fastening Type | Gender | Cable Connectors | Color | Length [x] | Length [x] | Usage | Connector Type | Number of Positions [custom] | Frequency - Max [Max] | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (FCI) | -40 °C | 80 C | Round | Shielded | 30 AWG | Latch Lock | Male to Male | miniSAS miniSAS HD 4x | Black | 1.64 ft | 500 mm | External | Plug to Plug | 16 26 | 6 Gbps | ||
Amphenol ICC (FCI) | -40 °C | 80 C | Round | Shielded | 28 AWG | Latch Lock | Male to Male | miniSAS miniSAS HD 4x | Black | 9.84 ft | 3 m | External | Plug to Plug | 16 26 | 6 Gbps | ||
Amphenol ICC (FCI) | -40 °C | 80 C | Round | Shielded | 24 AWG | Latch Lock | Male to Male | miniSAS miniSAS HD 4x | Black | External | Plug to Plug | 16 26 | 6 Gbps | 19.69 ft | 6 m | ||
Amphenol ICC (FCI) | -40 °C | 80 C | Round | Shielded | 28 AWG | Latch Lock | Male to Male | miniSAS miniSAS HD 4x | Black | External | Plug to Plug | 16 26 | 6 Gbps | 19.69 ft | 6 m | ||
Amphenol ICC (FCI) | -40 °C | 80 C | Round | Shielded | 28 AWG | Latch Lock | Male to Male | miniSAS miniSAS HD 4x | Black | 6.56 ft | 2 m | External | Plug to Plug | 16 26 | 6 Gbps | ||
Amphenol ICC (FCI) | -40 °C | 80 C | Round | Shielded | 24 AWG | Latch Lock | Male to Male | miniSAS miniSAS HD 4x | Black | External | Plug to Plug | 16 26 | 6 Gbps | 29.53 ' | 9 m | ||
Amphenol ICC (FCI) | -40 °C | 80 C | Round | Shielded | 30 AWG | Latch Lock | Male to Male | miniSAS miniSAS HD 4x | Black | 9.84 ft | 3 m | External | Plug to Plug | 16 26 | 6 Gbps | ||
Amphenol ICC (FCI) | -40 °C | 80 C | Round | Shielded | 28 AWG | Latch Lock | Male to Male | miniSAS miniSAS HD 4x | Black | External | Plug to Plug | 16 26 | 6 Gbps | 19.69 ft | 6 m | ||
Amphenol ICC (FCI) | -40 °C | 80 C | Round | Shielded | 24 AWG | Latch Lock | Male to Male | miniSAS miniSAS HD 4x | Black | 9.84 ft | 3 m | External | Plug to Plug | 16 26 | 6 Gbps | ||
Amphenol ICC (FCI) | -40 °C | 80 C | Round | Shielded | 24 AWG | Latch Lock | Male to Male | miniSAS miniSAS HD 4x | Black | External | Plug to Plug | 16 26 | 6 Gbps |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
10117771 Series
16, 26 Position miniSAS HD 4x, miniSAS Plug to Plug 9.84' (3.00m) Black Shielded
